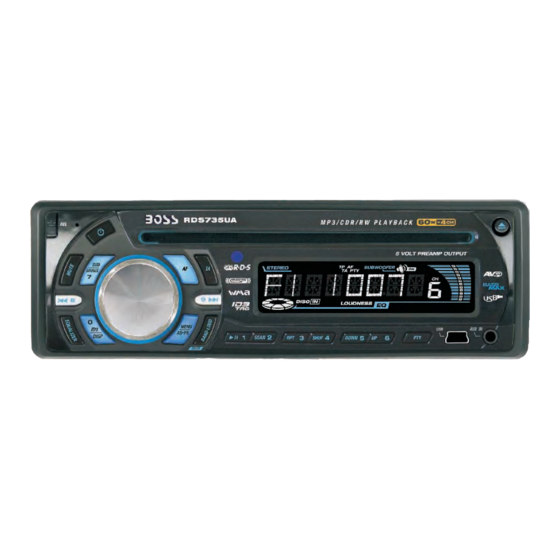

Summary of Contents for Boss RDS735UA
-
Page 3: Handling Compact Discs
2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 4: Installation
3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Page 5 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.
- Page 6 4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P .
-
Page 7: Wiring Diagram
5. WIRING DIAGRAM ANTENNA CABLE INPUT FUSE 20-PIN AUDIO/POWER HARNESS (See Figure 1) WHITE RCA-TO-RCA CABLES (not supplied) SUB WOOFER YELLOW BLUE AUX IN WHITE RCA-TO-RCA CABLES (not supplied) WHITE REAR LINE OUT GREY WHITE FRONT LINE OUT BLACK CONNECTOR (See Figure 2) WIRE COLOR FUNCTION/LABEL... -
Page 8: Basic Operations
6. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button to view Clock, Programme Type (PTY), and Frequency of the station in listening. 16) SOURCE BUTTON (SOURCE) Press this button to select different source, sequence as follow: A) Tuner mode (Radio) -
Page 9: Audio Operations
7. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode. -
Page 10: Radio Operations
8. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2. - Page 11 Some broadcasting stations may change their program from normal broadcasting to regional broadcasting for a certain period. When regional mode is off, the region identification in the PI code is ignored; the radio may switch to a local variant of the current program. When region mode is on, the radio will only switch to a program carrying the exact same PI code.
- Page 12 - PTY (Program Type Codes) This code is used to designate the current program material being broadcast. With this feature, you can search the programs that match the selected program type, which is chosen from a specific list of types. - EON (Enhanced Other Networks Information) It is a supplementary service enabling the radio to obtain information not only from the current station but also from the others.
- Page 13 10. CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.
- Page 14 PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 11. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not P .1 be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver.
-
Page 15: Mp3/Wma Operations
12. MP3/WMA OPERATIONS Notes : - An MP3 directory is shown in this manual as “D irectory ”, and an MP3 file is shown as “Track”. - Maximum length of file name : 28 characters. - Maximum length of directory : 16 characters. - Supports Multi-Session recording. - Page 16 Press MP3 ENTER BUTTON and continue to search the directory or file name in the directory by TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button DISP MODE TUNE DN TUNE UP...
-
Page 17: Remote Control
13. REMOTE CONTROL OPERATIONS: Radio Mode CD Player Mode MP3 Mode 1. Power Power On/Off Power On/Off Power On/Off Adjust Vol,Bas, 2. Volume Up/Down Adjust Vol,Bas, Adjust Vol,Bas, Tre,Fad,Bal Tre,Fad,Bal Tre,Fad,Bal 3. ID3/DISP Display Clock Display Clock ID3 tag information Display Clock, Numeric key 0* 4.TA... -
Page 18: Specifications
14. SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ratio RADIO SECTION 87.5-108MHz Frequency Range 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz... -
Page 19: Troubleshooting
15. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on. - Page 20 10 R - 02 0896...
