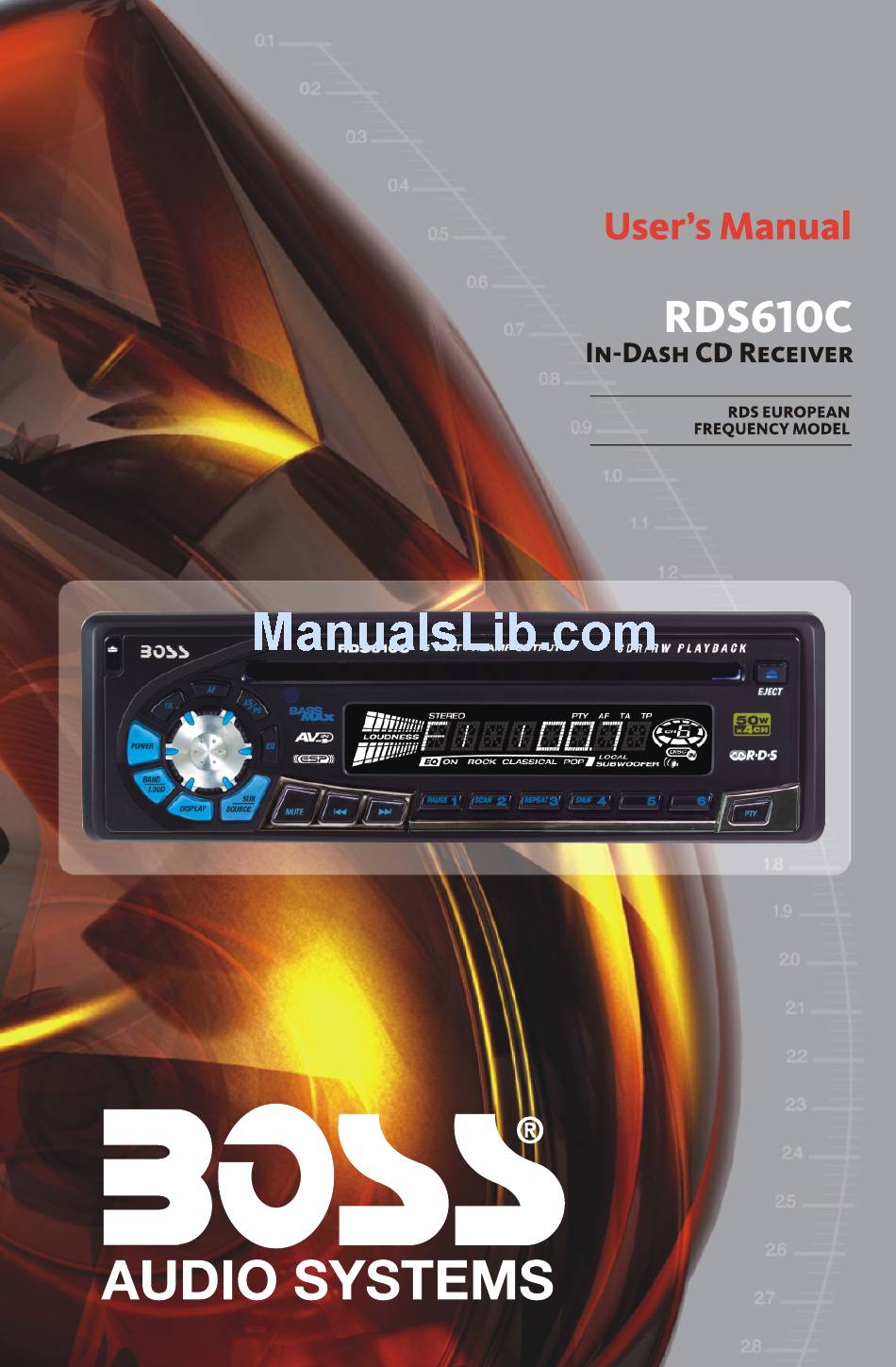

Boss RDS610C User Manual

In-dash cd receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Boss RDS610C

Summary of Contents for Boss RDS610C

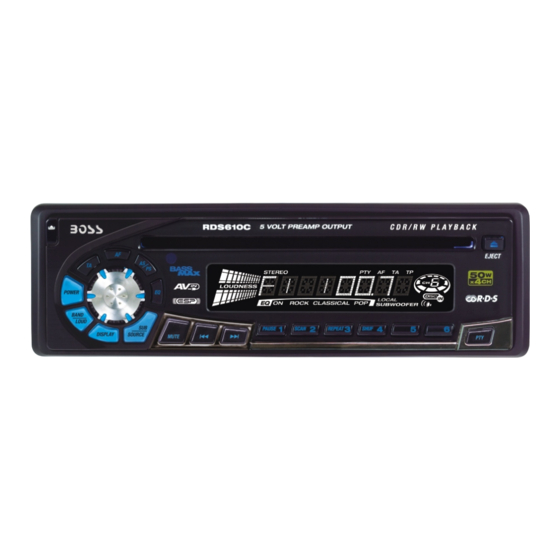

  • Page 2 1. BUTTONS LOCATION AND FUNCTIONING PANEL AUTOMATICALLY CD EJECT RELEASE STORE / PRESET BUTTON BUTTON BUTTON SCAN BUTTON VOLUME AUDIO MUTE PRESET MEMORY BUTTONS (M1~M6) KNOB BUTTON BUTTON BUTTON REMOTE PRESET POWER CONTROL EQUALIZER BUTTON BUTTON RECEIVER BUTTON BAND/ DISPLAY SOURCE TUNING UP / DOWN LOUDNESS...

  • Page 3: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
  • Page 5 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.

  • Page 6: Detachable Control Panel (D.c.p .)

    4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P .

  • Page 7: Wiring Diagram

    5. WIRING DIAGRAM ANTENNA JACK ANTENNAPEXT ENDERP CABLE FUSE 20-PIN AUDIO/POWER HARNESS WHITE RCA-TO-RCA CABLES (See Figure 1) (not supplied) SUB WOOFER YELLOW BLUE AUX IN WHITE RCA-TO-RCA CABLES (not supplied) WHITE REAR LINE OUT GREY WHITE FRONT LINE OUT BLACK CONNECTOR (See Figure 2)

  • Page 8: Basic Operations

    6. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 12) POWER ON/OFF BUTTON Press this button to turn on or off the power. 5) DISPLAY BUTTON (DISP) Press this button to view Program Type (PTY), and Frequency of the station that you are listening to.

  • Page 9: Audio Operations

    7. AUDIO OPERATIONS 10) VOLUME KNOB Turn this knob to adjust desired volume level. 4) AUDIO BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode.

  • Page 10: Radio Operations

    8. RADIO OPERATIONS 11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1.PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. 2.AUTO MEMORY STORE: Press AS/PS button for couple of seconds to enter Auto Store mode, this feature will automatically scan the current band and enter up to 6 strongest stations into the 6 preset memories.

  • Page 11: Pty Button

    Some broadcasting stations may change their program from normal broadcasting to regional broadcasting for a certain period. When regional mode is off, the region identification in the PI code is ignored; the radio may switch to a local variant of the current program. When region mode is on, the radio will only switch to a program carrying the exact same PI code.
  • Page 12 - PTY (Program Type Codes) This code is used to designate the current program material being broadcast. With this feature, you can search the programs that match the selected program type, which is chosen from a specific list of types. - EON (Enhanced Other Networks Information) It is a supplementary service enabling the radio to obtain information not only from the current station but also from the others.
  • Page 13 9.CD OPERATIONS M1) PAUSE BUTTON (PAUSE) Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCAN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track. M3) REPEAT BUTTON (REPEAT) Press this button, the current track will be played repeatedly until this button is pressed again.

  • Page 14: Remote Control

    10.REMOTE CONTROL OPERATIONS: CD Player Mode Radio Mode 1. Power Power On/Off Power On/Off 2. Volume Up/Down Adjust Vol,Bas, Adjust Vol,Bas, Tre,Fad,Bal Tre,Fad,Bal 3. DISP Display Clock Display Clock 4.TA No Function TA Function 5. Tuning Up/Down Tuning/Seek Up/Down Track Up/Down 6.

  • Page 15: Specifications

    11.SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ratio 87.5-108MHz Frequency Range 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz Stereo Separation...

  • Page 16: Troubleshooting

    12.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
