CD-IN Connector
Onboard AC97 CODEC
Die Hard BIOS with 100% Virus
Protection (User Optional)
JP30 Die Hard BIOS
Select Jumper
Green: AUX-IN Connector
Red: Modem-IN Connector
CNR Expansion Slot
32-bit PCI Expansion
Slot x6
nd rd
2 & 3 USB Port
Connector
Dr. LED Connector
WOM (Wake ON Modem)
Connector
WOL (Wake ON LAN)
Connector
IrDA Connector
Chassis Fan Connector
with H/W Monitoring
Front Panel Audio
Connector
Front Panel Connector
®
PROMISE FastTrak 100™
Lite IDE RAID Controller
(AX37 Plus Only)
CMOS Data Clear Jumper
System & RAM Power
Indicate LED
IDE RAID Controller Enable/
Disable Jumper
Chassis Intrusion Sensor
Connector
s / A X 3 7 P r o
s / A X 3 7 P r o

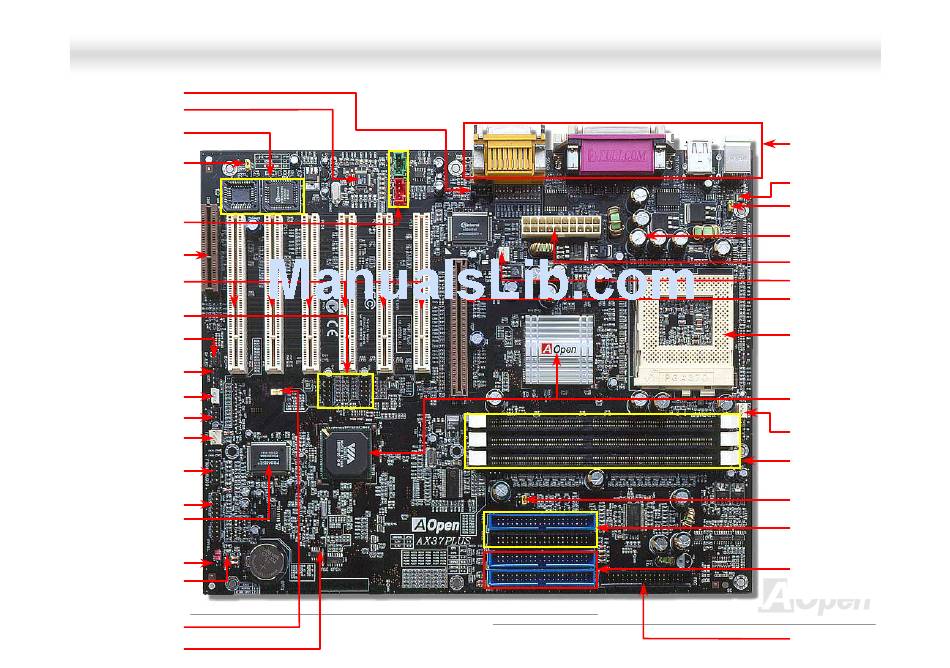

Motherboard Map

16
O n l i n e M a n u a l
O n l i n e M a n u a l
PC99 Colored Back
Panel
Resettable Fuse
Keyboard
Wake-up Select Jumper
2200 μf Low ESR
Capacitor
ATX Power Connector
AUX Fan Connector
AGP 4x Expansion Slot
370-pin CPU Socket with
Frequency/Voltage
Auto-detection supports
® ®
Intel Pentium
Celeron™ 533MHz~1GHz+
®
VIA Apollo Pro266
Chipset with Pure
Aluminum Heatsink
CPU Fan Connector with
H/W Monitoring
184-pin DDR DRAM Slot
x3 support maximum up
to 3GB
FSB Select Jumper
ATA/33/66/100 IDE
Connector x2
ATA/100 IDE RAID
Connector x2 (AX37 Plus
Only)
FDD Connector
III and
