A
X
3
7
P
l
u
s
/
A
X
3
7
P
r
o
O
n
l
i
n
e
M
a
n
u
a
l
A
X
3
7
P
l
u
s
/
A
X
3
7
P
r
o
O
n
l
i
n
e
M
a
n
u
a
l
The power circuit of the CPU core voltage must be checked to ensure system stability for high speed CPUs (such as the new
Pentium III, or when overclocking). A typical CPU core voltage is 2.0V, so a good design should control voltage between 1.860V

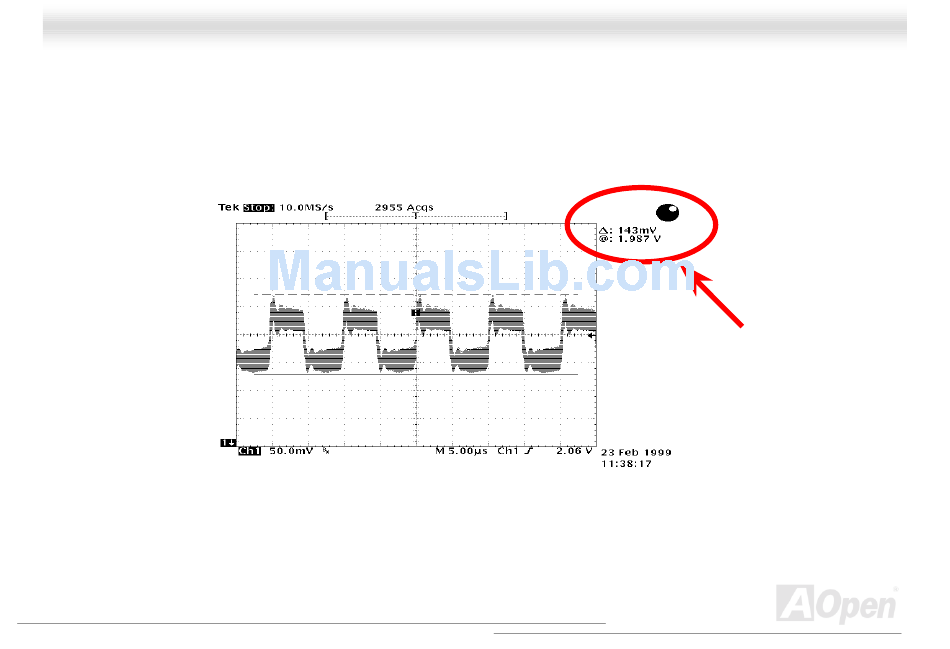

and 2.140V. That is, the transient must be below 280mV. Below is a timing diagram captured by a Digital Storage Scope, it shows
the voltage transient is only 143mv even when maximum 18A current is applied.
Note: This diagram for example only, it may not be exactly the same as this motherboard.
68
