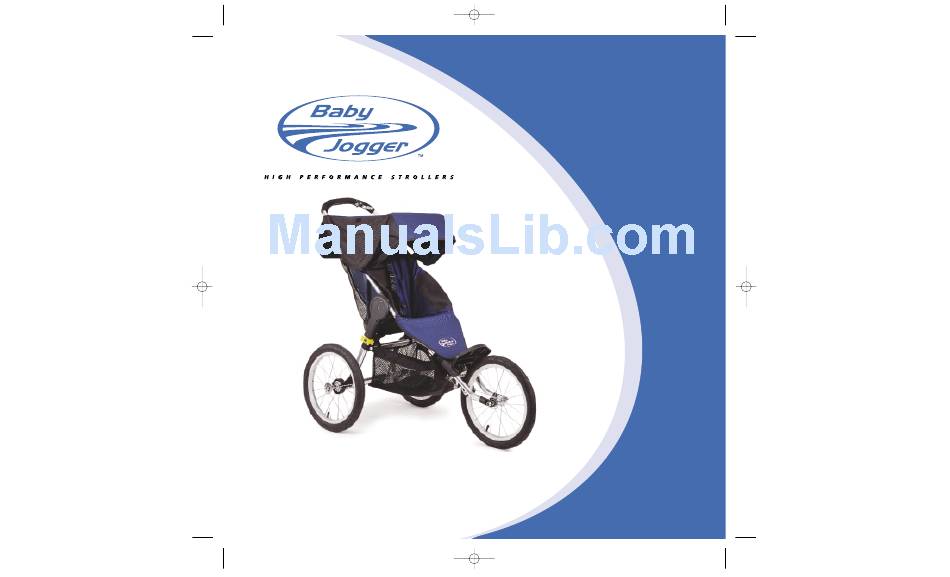

- Page 1 Q- 2004 8/13/04 5:12 PM Page 1 Assembly Instructions Q-Series Single The Ultimate High Performance Double Jogging Stroller Important, Keep for Future Reference...
- Page 2 • Watch out for cars – never assume that a driver can see you and your child • Never use Roller Blades while using a Baby Jogger Stroller • Intended for passengers up to five years of age weighing no more than 75 pounds.
- Page 3 assembly instructions Q- 2004 8/13/04 5:12 PM Page 2 Footplate Seat Seat removal: • Insert the footplate tab into the footplate holder slot and snap down onto Jogger frame. Unsnap seat from frame. • Using a phillips head screwdriver, attach footplate to Jogger frame. Release the two bottom velcro straps.
- Page 4 assembly instructions Q- 2004 8/13/04 5:12 PM Page 4 Basket Canopy Basket removal: Canopy removal: • Basket removal requires releasing the bottom section of seat as shown on previous page to reveal velcro strap. • Undo basket’s front Velcro strap. Remove canopy by releasing upper velcro straps and unsnapping from Jogger frame.
-
Page 5: Front Wheel
assembly instructions Q- 2004 8/13/04 5:12 PM Page 6 Front Wheel Rear Wheels To install front wheel, lay stroller back so handle is resting on floor. Open the caliper by flipping the caliper lever toward the • To install, gently slide the rear wheels while pinching calipers together.. -
Page 6: Safety Harness
assembly instructions Q- 2004 8/13/04 5:12 PM Page 8 Safety Harness Adjusting safety harness: • Slide the end of the shoulder strap back into plastic guide. Please note: If you feel the straps are too tight, you may adjust their length by sliding the plastic guides toward the top of the seat. -
Page 7: Reclining Seat
assembly instructions Q- 2004 8/13/04 5:12 PM Page 10 Brakes Reclining Seat Hand Brake with Parking Button • To use the parking button feature, simply squeeze the brake handle and push the park brake button. Adjusting the Brake • Simply adjust seat straps to •... -
Page 8: Stroller Care
Wheel Care • Make sure wrist strap is around your wrist whenever your baby is in the stroller. The Baby Jogger is lightweight • Moisture – especially from the beach – can rust the wheel bearing case. and ready to roll – with or without you – and the wrist strap Spraying regularly with a silicone lubricant will keep your wheels looking healthy. - Page 9 Page 14 Thank You! We wish you many happy journeys with your new Baby Jogger! Your stroller is a great product, and we are proud to manufacture it. If you have any questions or comments, please give us a call at.
