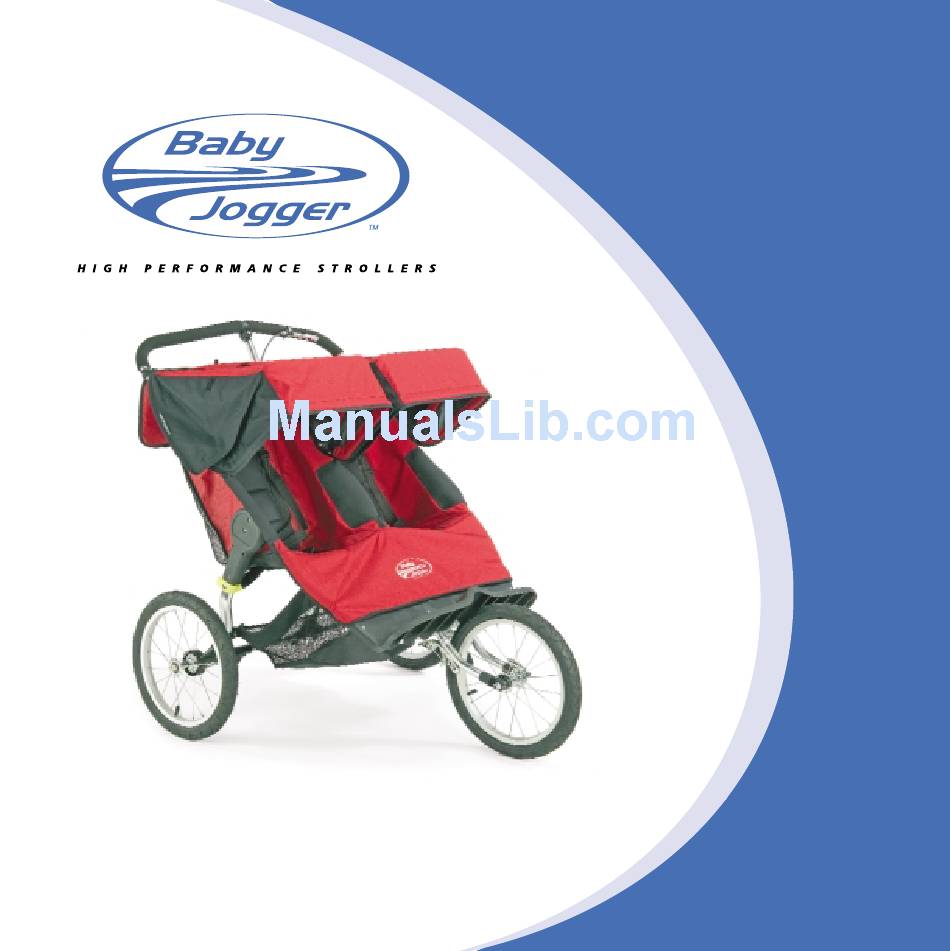

- Page 1 Assembly Instructions Q-Series Double Amazing Quick Folding System (Patented) Important, Keep for Future Reference...
- Page 2 • Watch out for cars – never assume that a driver can see you and your child. • Never use Roller Blades while using a Baby Jogger Stroller. • Intended for passengers up to five years of age weighing no more than 100 pounds.
- Page 3 Before Folding With a simple lift of the straps, Baby Jogger’s new Q-Series strollers fold in half, which makes transporting them easier than ever before. Combine that technology with our reputation for quality and durability and you have the world’s best lineup of high performance strollers.
- Page 4 Frame • To assemble, simply unfold frame as shown.
-
Page 5: Front Wheel
Front Wheel To install front wheel, lay stroller back so handle is resting on floor. Open the caliper by flipping the caliper lever toward the rear wheels. Insert the front wheel into the fork tips by aligning the axle flats with the fork tip flats. -
Page 6: Rear Wheels
Rear Wheels • To install, gently slide the wheel’s rear axle into the hole in the axle end until you hear it click into place. • To remove, simply push in the spring lock while pulling out the wheel. -
Page 7: Adjusting The Brake
JOGGER IS PACKAGED WITH THE HAND BRAKE ASSEMBLY LOOSE. Brakes TIGHTENING IS NECESSARY FOR SAFE OPERATION! Hand Brake with Adjusting the Brake Parking Button • To use the parking button feature, simply squeeze the brake handle and push the park brake button. Parking Button Cylinder... -
Page 8: Safety Harness
Safety Harness Adjusting safety harness: Loosen the shoulder straps from their plastic guides. Slide the end of each strap through pair of seat loops closest to your child’s shoulder. Slide the end of the shoulder strap back into plastic guide.Please note: If you feel the straps are too tight, you may adjust their length by sliding the plastic guides toward the top of the seat. -
Page 9: Reclining Seat
Reclining Seat Simply adjust seat Pull on strap when you Rear flap serves as sun straps to desired want to return the seat canopy when seat is in degree of recline. to its upright position. reclined position. Jogger is packaged with seat support board and can be easily removed or inserted into the seat back if additional support is desired. - Page 10 Seat Snap seat to frame. Attach bottom part of seat Wrap bottom straps around to footplate with the Velcro. frame, thread strap through D-ring and secure. Snap safety strap to frame. Snap center seat anchor Attach seat anchor straps straps to each other. to rear frame uprights.
- Page 11 NOTE: Some Joggers are shipped with the Canopy, Seat and Basket pre-assembled. Assembly instructions are given if any pre-assemble items are removed for cleaning or replacement. Thread folding strap through openings in seat. Attach folding strap to folding trigger and secure the triangle shaped ALWAYS BE SURE...
- Page 12 Basket Snap front basket straps to frame tube. Wrap rear basket straps around upright and snap back to itself. Note: The rear of basket has the mesh material and the front doesn’t.
- Page 13 You will need a friend to help Canopy attach the sun canopy and a phillips head screwdriver. Center Hole Unsnap and lower the top section Thread the center support of the of seats to reveal the mounting sun canopy through the seat’s holes for the sun canopy brackets.
- Page 14 Wrist Strap • Make sure wrist strap is around your wrist whenever your baby is in the stroller. The Baby Jogger is lightweight and ready to roll – with or without you – and the wrist strap helps you gain control over your stroller.
-
Page 15: Stroller Care
Stroller Care Washing • You can machine wash your stroller’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) • Be sure to remove the board from the back of the seat before washing. - Page 16 Thank You! We wish you many happy journeys with your new Baby Jogger! Your stroller is a great product, and we are proud to manufacture it. If you have any questions or comments, please give us a call at. 1.800.241.1848 Baby Jogger is a Division of Dynamic Brands 2042 Westmoreland Street •...
