2.3

Connecting the Cable

Connect the power cable and signal cable as shown
below.

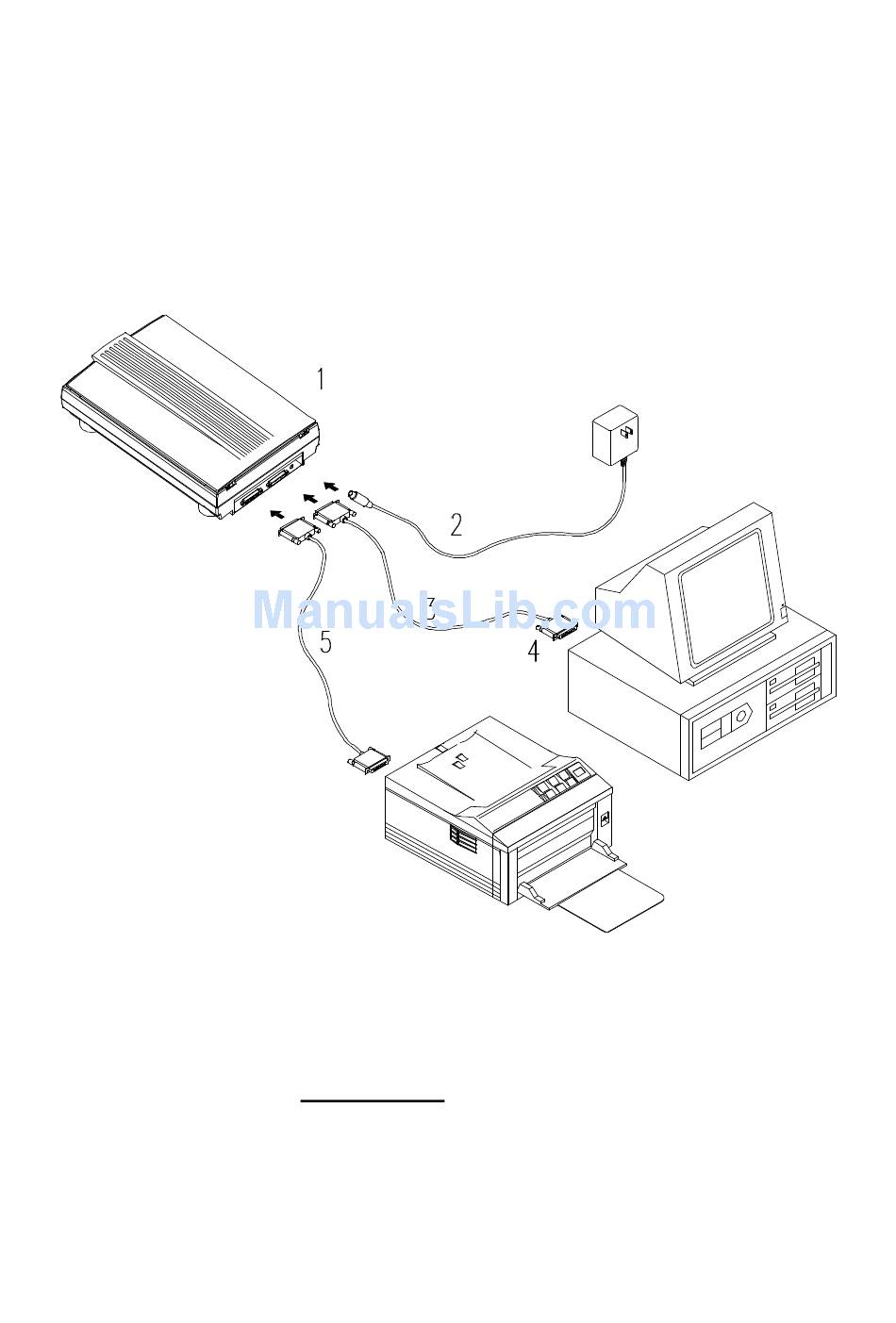

Figure 2-2 AV260C Plus scanner cable connection
1. Scanner
3. D25P Cable
5. Printer Cable
2. Power Supply
4. PC Parallel Port
2-3
