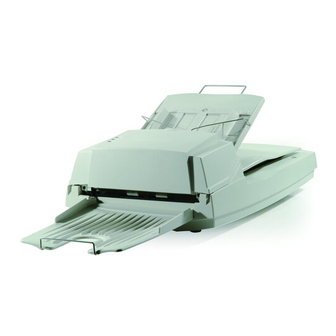

High speed document scanner
Hide thumbs Also See for 300500001:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
High Speed Document
Scanner
User's Manual
Regulatory model: 300500001/300500002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300500001 and is the answer not in the manual?

Questions and answers

Eliza
July 19, 2025

Does this scanner retain information from the scanned documents?

0

Related Manuals for Avision 300500001

Summary of Contents for Avision 300500001

  • Page 1 High Speed Document Scanner User's Manual Regulatory model: 300500001/300500002...
  • Page 2 FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause...

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..............1-1 INSTALLATION..............2-1 NLOCKING THE HIPPING SWITCH ......2-1 2.1.1 UNLOCKING THE SCANNER.....2-2 2.1.2 LOCKING THE SHIPPING SWITCH ..2-3 SCSI ID..............2-4 USB I NTERFACE ............2-6 ADF P APER HUTE ............2-6 ADF O UTPUT .............2-7 OCUMENT OADING ...........2-8 ADF S CANNING ............2-9 ONNECTING THE...
  • Page 4 OLOR ROPOUT ........4-17 4.4.1 COLOR DROPOUT SELECTION ....4-17 4.4.2 OTHER COLOR DROPOUT OPTIONS ..4-18 APER ............4-20 4.5.1 CROPPING ..........4-21 4.5.2 OTHER PAPER SELECTION.....4-24 PTIONS .............4-28 ETTING .............4-34 NFORMATION ..........4-36 ISIS INTERFACE OPERATION ........5-1 MAINTAINENCE ..............6-1 ADF ............6-1 LEANING THE LEANING THE LASS ..........6-3 EPLACING THE...

  • Page 5: Introduction

    INTRODUCTION Congratulations on your purchase of the document scanner. Before you install and operate the scanner, please take a few minutes to read through this manual. It provides you with the proper instructions on how to unpack, install, operate and maintain the scanner. Figure 1-1 shows how the scanner is packed.
  • Page 6 Power Cord Adapter SCSI Cable Output Paper Tray Foam SCANNER Foam Scanner Carton S/N LABEL Figure 1-1 Scanner Packing...

  • Page 7: Installation

    INSTALLATION Please unpack the scanner carefully, and check the contents against the checklist. If any items are missing or damaged, please contact your authorized local dealer immediately. Precautions • Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit.

  • Page 8: Unlocking The Scanner

    2.1.1 UNLOCKING THE SCANNER Carefully place the scanner in an upright position on its front. ii). Unlock the scanner by moving the lock switch beneath the scanner to the “Unlock” position (See Figure 2-1). iii). Gently place the scanner back to its normal position. Figure 2-1 Unlocking the Shipping Switch...

  • Page 9: Locking The Shipping Switch

    2.1.2 LOCKING THE SHIPPING SWITCH Whenever you need to move the scanner to a new location it is advisable to lock the shipping switch to avoid causing damage to the scanners’ internal mechanism. Please follow the instructions below to lock the shipping switch. 1).

  • Page 10: Scsi Id

    SCSI ID When you have several devices on a SCSI chain, you may need to adjust the SCSI ID selector setting located on the back of the scanner. This setting assigns a specific "device ID" to the scanner. If the assignment conflicts with an existing SCSI device, please select a new ID.
  • Page 11 SCSI ID Selector SCSI Termination Switch Figure 2-2 Adjusting the SCSI ID setting...

  • Page 12: Usb Interface

    USB INTERFACE Note that the machine is designed with two ports, SCSI and USB, to connect with the computer. If you are using the USB port, be sure to install the scanner driver before connecting the USB cable to your computer. Otherwise, the scanner may not work properly.

  • Page 13: Adf Output Tray

    2.5 ADF OUTPUT TRAY Hold the output paper tray some 30 degrees aslant as shown in Figure 2-4. ii). Insert the three protrusions on the output paper tray to the three slots on the ADF. iii). Release the paper tray gently. Make sure the tray is firmly attached to the ADF.

  • Page 14: Document Loading

    DOCUMENT LOADING For flatbed scanning Documents that can not be scanned using the ADF can be placed on the flatbed for scanning. (See Figure 2-5) Place the document to be scanned onto the document glass face down. ii). Position the document so that the upper-right corner is aligned with the reference mark.

  • Page 15: Adf Scanning

    2.7 ADF SCANNING Multiple documents can be fed automatically using the ADF. Refer to Figure 2-6. To prevent occasional paper jam when automatically feeding multiple documents, fan the paper before loading. ii). Lift the balance wire. iii). Place the documents onto the ADF paper chute in either paper side (face-down, face-up), with the leading edge in the auto feeder entrance.

  • Page 16: Connecting The Cable

    CONNECTING THE CABLE Turning the Power Off Depress the side marked “O” to turn the power off. Connect the power cable and SCSI signal cable as shown in Figure 2-7. ii). Turning the Power On Depress the side marked “I” to turn the power on. The POWER LED will light.
  • Page 17 Host PC Scanner SCSI Device Term. Term. (Terminator Off) Host PC Scanner Term. (Terminator On) Figure 2-2 Terminator ON/OFF 2-11...
  • Page 18 Power Switch SCSI Port USB Port Figure 2-7 Cable Connection 2-12...

  • Page 19: Requirements & Software Installation

    3. REQUIREMENTS & SOFTWARE INSTALLATION To run the scanner at rated speed recommended, you must have the following minimum requirements: • IBM compatible PC 586, Pentium or higher • Microsoft Windows 95 /NT/98/98SE/Me/2000/XP • One SCSI card installed on your computer; or a USB port on your computer •...
  • Page 20 If not, press the Start button, choose RUN,and type d:\driver\twain driver (or ISIS driver)\setup.exe (d means the letter indicating your current CD-ROM drive). Click on the OK button. Follow the subsequent instructions on the screen to complete the driver and application installation.

  • Page 21: Scanning With Image Editing Software

    SCANNING WITH IMAGE EDITING SOFTWARE The scanner driver is not a stand-alone program, it has to be started from within a TWAIN-compliant or plug-in software application and then the scanner driver is able to scan and load the image to your computer. The command to start the scanner driver may vary due to different software applications.
  • Page 22 Click Exit to return to the main screen and click Open Library and Photos at the upper-right corner to open your scanned image. Image Selection Box Photos...

  • Page 23: A Glance Of The Scanner Properties Dialog Box

    3.2.1 A GLANCE OF THE SCANNER PROPERTIES DIALOG BOX 1. Tab Options Choice: Image, Compression, Color Dropout, Paper, Options, Settings, Information. 2. Image Choose your image type and the side of Selection Box document you wish to scan. Options vary based on type of scanner.

  • Page 24: Using The Scanner Properties Dialog Box

    USING THE SCANNER PROPERTIES DIALOG The Scanner Properties dialog box allows you to configure the scanner’s settings. It consists of several tabbed windows each of which will be described in this chapter. The Scanner Properties dialog box...

  • Page 25: Buttons On The Scanner Properties Dialog Box

    BUTTONS ON THE SCANNER PROPERTIES DIALOG BOX The buttons on the Scanner Properties dialog box Buttons Description Defaults Click the Defaults button, the factory default settings will be shown on each tab. Scan After all the scan settings are satisfactory, click the Scan button to start scanning your document.
  • Page 26 The following table shows the default settings： Tab name Default settings Image Image：Front B&W Binarization：Dynamic Threshold Resolution：200 dpi Invert：Blank on White Scan Source：Auto Document Feeder Threshold：None Brightness：None Contrast：None Compression None Color Dropout None Paper Cropping：Automatic Deskew：Yes Orientation：Portrait OverScan：0.00 Multifeed Detection：None Unit：Inch Options Flip Side Rotation: Book...

  • Page 27: The Image Tab

    THE IMAGE TAB The Image tab allows you to choose the front side and (or) the rear side of your document, the type of image, and to set several basic scan settings. Note that except for the resolution, you can set individual scan settings for the front side and the rear side.

  • Page 28: The Image Selection Box

    4.2.1 THE IMAGE SELECTION BOX The Image Selection box includes the image type and document side option. If you wish to scan both the front side and the rear side of your color document, you can check both Front Color and Rear Color at the same time. Note the options vary based on type of scanner.
  • Page 29 Example 2：Scanning a two-sided color document, one in B&W(Drop Blue Color：Threshold：10, Background：79), the other in color Rear Front Side/Image Selection Image Description Type Color Choose Color if you wish to scan a color image for your original in color. Gray Choose Gray image if your original contains actual shades of gray.

  • Page 30: Other Image Options

    B&W Gray Color 4.2.2 OTHER IMAGE OPTIONS Binarization This is the process of converting a grayscale or color image to a bi-tonal image. There are several different methods of performing this conversion. Two of the options are Dynamic Threshold and Fixed Processing.
  • Page 31 Fixed Processing: Used for black-and- white and other high contrast documents. A single level is set to determine the black- and-white transition. The threshold is programmable over the entire density range. Fixed Processing sets Contrast to 0. If Fixed Processing is selected, Contrast is not available.
  • Page 32 Threshold Used to convert a grayscale image to a bi-tonal image. The value ranges from 0 to 255. A low threshold value produces a lighter image, and can be used to subdue backgrounds and subtle, unneeded information. A high threshold value produces a darker image, and can be used to help pick up faint images.
  • Page 33 Adjusts the lightness or darkness of an image. Brightness The higher the value, the brighter the image. Drag the slider to the right or left to increase or decrease the brightness. The range is from –100 to +100. Adjusts the range between the darkest and Contrast the lightest shades in the image.
  • Page 34 Resolution A good control of the resolution results a good detail of an image that scans. The resolution is measured by dots per inch (dpi). Normally, the greater the dpi number, the higher the resolution and the image file size. Be aware that greater resolution takes more time to scan, and more disk space for the scanning image.
  • Page 35 Resolution: 75 dpi Resolution: 150 dpi Invert Reverses the brightness and the colors in the image. The default setting is Black on a White background. Reverse mode is White on a Black background. For color images, each pixel will be changed into its complementary color at the command of Invert.
  • Page 36 Scan Choice: Source Auto Document Feeder: Used to scan multiple pages. Flatbed: Used to scan a single page. For example, pages from newspaper clipping, paper with wrinkles or curls. Flatbed (book): Used to scan several inside pages from book. Automatic: Allow the scanner automatically set its scan source.

  • Page 37: Scanning Color Images

    4.2.3 SCANNING COLOR IMAGES The following options are available for scanning color images. Brightness Contrast Resolution Invert 4.2.4 SCANNING GRAYSCALE IMAGES The following options are available for scanning gray images. Brightness Contrast Resolution Invert 4.2.5 SCANNING B&W IMAGES The following options are available for scanning B&W images.

  • Page 38: The Compression Tab

    THE COMPRESSION TAB The Compression tab allows you to compress your scanned image and choose the level of compression. Bi- tonal images are normally compressed using CCITT standard called Group 4 (G4). Color and grayscale images are often compressed using JPEG technology. Move the JPEG Quality slider to the right or left to increase or decrease the level of compression.
  • Page 39 The Compression tab dialog box 4-16...

  • Page 40: The Color Dropout Tab

    THE COLOR DROPOUT TAB 4.4.1 COLOR DROPOUT SELECTION Color Dropout tab allows you to drop either of the red, blue, or green color in your scanned image. If your image contains red color watermark or background, choose the R (Red) channel then any red watermark or background will be removed.

  • Page 41: Other Color Dropout Options

    4.4.2 OTHER COLOR DROPOUT OPTIONS Advanced Processing provides two options that can adjust your scanned image in the best optimal result. Filter This value is used to determine the color Threshold which will be dropped out. A lower value will drop more of the selected color out, while a higher value will leave more of the selected color in.
  • Page 42 Remove Blue, Threshold: 20, Background: Remove Blue, Threshold: 20, Background Level: 210 4-19...

  • Page 43: The Paper Tab

    THE PAPER TAB The Paper tab allows you to define values relating to image output (i.e., Auto Crop or not, Scan Area, OverScan, Multi-Feed Detection). The Paper tab dialog box 4-20...

  • Page 44: Cropping

    4.5.1 CROPPING Cropping allows you to capture a portion of the document being scanned. Choice: Automatic, Fixed to Transport, EOP (End of Page) Detection. Options Description Automatic Automatic adjusts the cropping window according to different document sizes. Use this option for batches of mixed-sized documents.
  • Page 45 The following options are only available when Fixed to Transport is selected. X-Offset — the distance from the left end of the scanner to the left edge of the scanning area. Y-Offset — the position from the top end of the document to the top end of the scanning area.
  • Page 46 Example： Redefine your scan area ( x-offset: 2.25 inches；y-offset:1.13 inches) Scan Area Display window After Fixed to Original Transport The Redefined Scan Area 4-23...

  • Page 47: Other Paper Selection

    4.5.2 OTHER PAPER SELECTION Deskew Use this option to automatically deskew a document. Note: If the skew angle is too great, some of the image may be cut off. Scan Area Choose your desired paper size with the drop-down list box. Or you may select a custom paper size by clicking the Scan Area box and then click Add to include in the choice.
  • Page 48 Multi-Feed Detection Multi-Feed Detection allows you to detect overlapped document that go through the auto document feeder. Multi-Feed usually occurs due to stapled documents, adhesives on documents, or electro-statically charged document. Note： The availability of the function varies based on type of scanner. Additional Length Detection Additional Length Detection allows you to define the length of document being multi-fed.
  • Page 49 Example：Additional Length Detection：Set Additional Length to be 2.02 inches 2.02” There are three options available if Multi-Feed is detected. Stop Scanning after Multi-Feed If this is selected, the scanner will stop the feeder if multi-feed is detected. Multi-Feed Alarm: If this is selected and a wave file is added, the scanner will produce a sound alarm if multi-feed is detected.
  • Page 50 How to add the sound alarm： 1. Click the Browse button on the right side of the speaker icon. The Open dialog box appears. 2. Choose your wave file. 3. Click the Open button. The wave file is added. Units Defines the primary measurement system.

  • Page 51: The Options Tab

    THE OPTIONS TAB The Options tab allows you to set following additional image processing settings. The Option tab dialog box 4-28...
  • Page 52 Flip Side This option allows you to select the Rotation orientation of the double-sided documents been fed and if “fanfold” is selected, the image of the reverse side will be rotated to 180 degrees. This is applied to double-sided documents which are viewed in portrait (height is greater than width) but are sometime fed into the scanner in landscape (width is greater than height)
  • Page 53 Rotate Image Choose the rotation angle from the drop down list if you wish to rotate your scanned image. Choice: None, 90°CW(clockwise), 90°CCW(counter clockwise), 180°. Original Rotate 90°CW Rotate Rotate 180° 90°CCW Blank Page Check if you wish to remove the Removal blank page and move the slider to the left or right to your desired...
  • Page 54 Edge Check White or Black if you wish to add white or Fill black edge on the border of your scanned image. Enter the value from 0 to 5 mm. Default value is 0. Original Edge Fill: 5mm (Black) 4-31...
  • Page 55 Image Check the Mirror box if you wish to reverse the Control right and left side of your image. Option Original The Mirror Effect 4-32...
  • Page 56 Background This option allows you to set your scan Setting background. Choice: White Background, Black Background. *This option varies based on type of scanner and is available for the front page in the ADF (auto document feeder) only. For the rear page, only the white background is available.

  • Page 57: The Setting Tab

    THE SETTING TAB The Setting tab allows you to set the following settings: The Setting tab dialog box Energy Saving Check the Enable Energy Saver box Control and move the slider to the right to set the amount of time to start the energy saver after your last action.
  • Page 58 Show Warning Check to show the warning messages Message such as “ADF pad count exceeds 50,000 scans (the number varies based on type of scanner). Please replace the ADF pad and reset the pad count.” Save Settings Check to save your scanner properties after Closing settings after leaving the dialog box.

  • Page 59: The Information Tab

    THE INFORMATION TAB The Information tab displays the following system and scanner information. The Information tab dialog box The “Report” button： If you encounter any error message while using the scanner, click the Report button. A report.txt file (C:\AVxxx) will be generated. Please send this file to the nearest service center for trouble shooting.
  • Page 60 The “Reset Pad Count” button」： After scanning approximately 50,000 pages (the number varies based on type of scanner) through the Auto Document Feeder (ADF), the ADF pad may be worn out and you may experience problems with document feeding. In this case, it is highly recommended to replace the ADF pad with a new one.

  • Page 61: Isis Interface Operation

    ISIS INTERFACE OPERATION The ISIS driver operation method is similar to the TWAIN’s. Every function on the ISIS interface screen is briefly described as below: Mode: Select one of scan modes, including B&W, gray, color options. Dither: 5 halftone levels available, can be disabled. Dots per inch: Select your desired resolution.

  • Page 62: Maintainence

    6. MAINTAINENCE CLEANING THE ADF The scanner is designed to be maintenance free. However, it still needs to be cleaned occasionally to ensure optimum image quality and performance. From time to time the pad assembly and feeding rollers may become contaminated with ink, toner particles or paper dust.
  • Page 63 ADF Roller ADF Pad ADF Unit...

  • Page 64: Cleaning The Glass

    CLEANING THE GLASS The procedures: Soak a cotton swab with some isoprophy alcohol (95%). ii). Open the ADF unit and document cover as shown in Figure 6-2. Wipe the glass of flatbed area and ADF area by moving the swab from side to side. iii).

  • Page 65: Replacing The Adf Snap-In Pad Module

    6.3 REPLACING THE ADF SNAP-IN PAD MODULE After scanning approximately 20,000 pages through the ADF, the separation pad may be worn out and you may experience problems with document feeding. In this case, it is highly recommended to replace the pad module with a new one.
  • Page 66 Assembling Procedure Take out the ADF pad module from the box. Hold the upper part of the pad clamp and place it gently to the pad holder as shown in Figure 6-4. ADF Pad Figure 6-4 Installing the ADF Pad...

  • Page 67: Replacing The Adf Paper Feed Roller

    REPLACING THE ADF PAPER FEED ROLLER Open the ADF cover. ADF cover Lift the tabs.
  • Page 68 Remove the paper feed roller cover. ADF roller cover Remove the paper feed roller. ADF paper feed roller...
  • Page 69 Insert the new paper feed roller by aligning the tabs into the slots and pressing the roller into place. Slot Reinsert the paper feed roller cover and snap it into place. 7. Close the ADF cover.

  • Page 70: Trouble Shooting

    7. TROUBLE SHOOTING The scanner will automatically perform a simple self- test each time it is turned on. This will help spot major system errors in the scanner itself. When the test is initiated, the READY LED is flashing. When the test is completed, if no error occurs, the READY LED is steadily on.
  • Page 71 Question: More than one sheet of paper were fed into the scanner. Answer: a) Open ADF unit. b) Remove the multi-fed sheets of paper. c) Close the ADF unit. d) Flatten the corners and edges; loosen the paper before reloading it in the paper guide.
  • Page 72 Question: When I power on the scanner, the lamp does not light. Answer: The possibilities are as follows: a) The lamp is out of order. In that case, contact your authorized local dealer to change the lamp. The life time of the lamp is about 5000 hours.
  • Page 73 Question: The scanner works well otherwise, but for the line art, the lines scanned seem much thicker than those of the original. Answer: Use the Brightness or Threshold setting to adjust the line art image.

  • Page 74: Paper Jam In The Adf

    PAPER JAM IN THE ADF In the event of paper jam, please follow the procedures below. Open the ADF cover as shown in Figure 7-1. ii). Pull the paper out of the ADF unit carefully. ADF Unit Document Figure 7-1 ADF Paper Jam - Removing the Paper...

  • Page 75: Technical Service

    TECHNICAL SERVICE Technical support for Avision scanner is provided at Avision Technical Assistance Center (ATAC). Before contact with ATAC, please prepare the following information. • Scanner serial & revision number (located on the bottom of the scanner) • Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card, etc.)

  • Page 76: Specifications

    SPECIFICATIONS Model Number 300500001 (Simplex Scanner) 300500002 (Duplex Scanner) Scanning Mode B&W Gray Color Optical 600 x 600 dpi Resolution Light Source Cold Cathode fluorescent lamp ADF Capacity 50 sheets Scan Area Flatbed: up to European A4 (8.5” x 11.69”) ADF: 3.7”...

  • Page 77: Index

    INDEX Ａ Ｄ Additional Length Detection, default settings, 4-25 4-24 Deskew, ADF cover, 7-5 document cover, 2-6 ADF Scanning, Document Loading, Ｂ Ｅ B&W, 4-6 4-31 Edge Fill, 4-18 Background Level, 4-34 Energy Saving, Background Setting, 4-33 balance wire, 2-9 Ｆ...
  • Page 78 Multi-Feed Detection, Ｒ reference mark, 2-8 refit the shipping bracket, 2-3 Ｏ Reset Pad Count, 4- output paper tray, 2-7 Reset Roller Count, 4-37 output paper tray extension, Resolution, 4-11 4-30 Rotate Image, 4-24 OverScan, Ｓ Ｐ 4-24 Scan Area, paper jam, 2-9, Scanner packing, 1-2 POWER LED, 2-10...
