Dension 500S User Manual

Gateway 500S
(GW53MO1 & GW53MO2)
iPod, USB, AUX
User Manual
v.1.0
G53-9201-1
1. I
NTRODUCTION

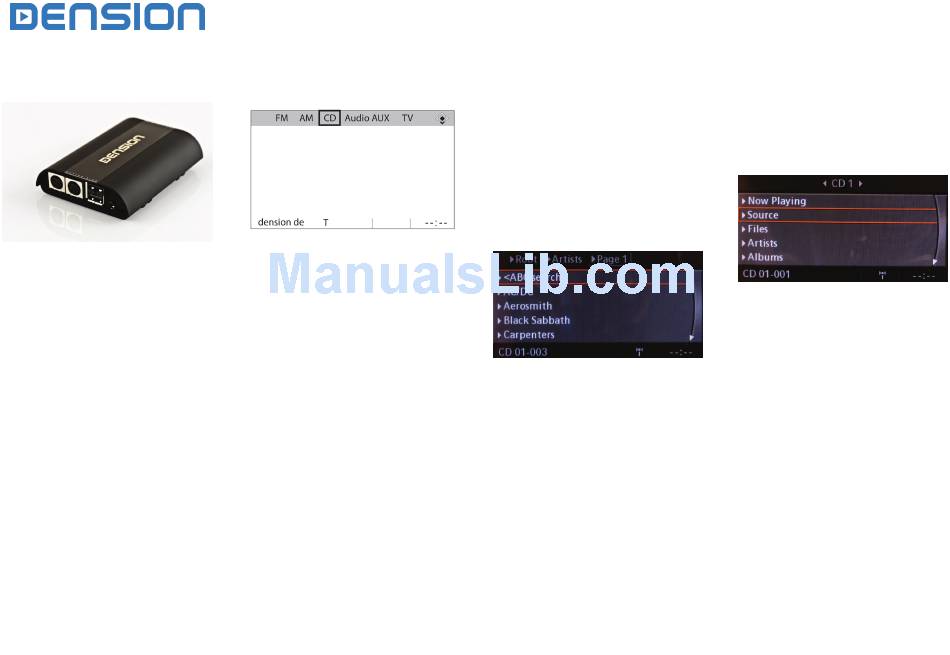

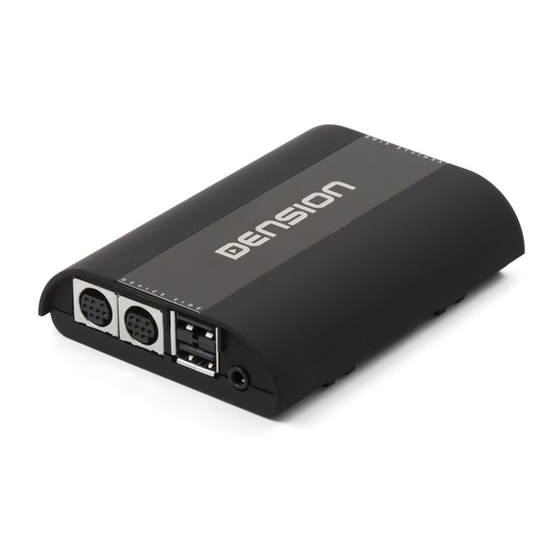

The Dension Gateway 500S lets you connect your
iPod or USB storage (stick, hard drive or mass
storage capable mp3 player) to your original car
radio, providing music playback, menu based control
and charging.
Supported USB devices
USB Flash Memory and Hard Disk Drive
File System: FAT16 or FAT32
Storage capacity: up to 320 GB music content
Music Format: MP3, WMA and WAV
Supported iPod / iPhone devices via 30PIN dock
cable (included in the package)
th
iPod (4 generation)
st nd rd th th th
iPod nano (1 , 2 , 3 , 4 , 5 and 6 generation)
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic
st nd rd th
iPod Touch (1 , 2 , 3 and 4 generation)
iPhone, iPhone 3G / 3GS, iPhone 4 / 4S
Supported iPod / iPhone devices via Lightning to
USB cable (not included in the package)
th
iPod nano 7 generation
th
iPod Touch 5 generation
iPhone 5
Aux: 3.5mm stereo aux input
2. G
ETTING STARTED
Before you start, please check that your iPod /
iPhone is up to date. You can get the latest firmware
updates via iTunes.
3. O
PERATION
Switch your car radio ON and select CD changer as
source. If in doubt consult the audio section of your
car's instruction manual.
Depending on your Radio, the music menu can be
browsed with Radio buttons (Next / Back), MMI or i-
Drive controller (for further details please go to
Section 6).
Connect your iPod to the Gateway. It will start
playing the first song on the device. In case the
Gateway has been in use earlier, music will continue
from the last played point.
Switching off the car or the radio will stop playback
and put the source devices to stand-by (except
which is connected into AUX).
Next / Back and Random / Repeat / Scan buttons
(radio dependent) work as expected.
If no device is connected then AUX GW is displayed
and the time counter is just counting up.
4. A
BOUT SOURCES
You can select the music source for playback in the
Source Menu. This can be:
GW AUX: in AUX mode the radio displays
•
'AUX GW' on the radio screen and cluster
display (Car / Radio dependent). No control
function is available
• iPod UI: the original user interface of the iPod
remains active (i.e. the click wheel still works)
so you can use it for browsing as normal. In
this mode the id3 tag info will not be displayed,
time counter is not synchronized and
'iPod UI' will appear on the screen
• iPod GW: the click wheel or the touch screen
(iPhone, iPod touch) is disabled, iPod displays
the currently played song information, except
on touch and iPhone where 'Accessory
attached' message is displayed. The iPod
playback control is possible from the car
stereo (Head Unit) or the steering wheel only.
In this mode the id3 tag info and the time is
displayed on the radio
dependent)
• USB: the playback is controlled from the
Gateway. ID3 tag info will be displayed (if that
details are properly filled out)
Please note: Gateway returns to playback screen
after 15 - 30 seconds (radio dependent) of inactivity
in any other browsing mode.
5. A G M
BOUT ATEWAY ENU
Browsing and Selecting Music (iPod or USB)
You can use the other menu items to browse the
content of the iPod or USB device
• Files, Artists, Albums, Titles, Bookmarks
(for USB only): Provides
selecting the music files on your USB device
• Music (for iPod only): Allows browsing and
selecting music in the sub-menus: Playlist,
Artists, Albums,
Composers, Audiobooks and Podcasts
When an artist is selected the PLAY menu item, play
all the songs from the given artist. Selecting the
ALL menu option will lists all the songs from the
given artists. The albums from the artist are listed as
separate items afterwards.
When an album is selected, all the songs from the
given album are listed as separate items afterwards.
The following menu items available in the main
menu serve as specific functions for music playback:
• Play All: plays all the music from the selected
source. The playback starts from the first song
on the device
Album play: Plays the full album of the song is
•
being played, typically used in random play
mode
Please note: In case the current list of the
only
playlist/album contains more than 30 items (songs)
the whole list cannot be displayed on the same
screen due to the technical limitation of the radio so
it will be split to pages (sub lists) containing 30
items.
Settings menu
display (Radio
Volume
The volume menu allows you to set the different
volumes in the system:
• iPod, AUX volumes for music playback
About
Provides information on the gateway product (SW
versions, serial number, etc.).
6. S
PECIFIC OPERATION GUIDES
BMW
The menu of the Gateway 500S is displayed on the
iDrive or the radio screen.
browsing and
Songs, Genres,
The music playback and settings are controlled from
the radio or iDrive controller, but it is also possible to
select the next or the previous track from the
steering wheel buttons (if available).
You can enter the Gateway main menu by selecting
disc 6 where you can toggles between different
sources or browse and select different music. For
more information, please check section #5.
Browsing is possible on non-iDrive cars, by the
next or previous track buttons. In order to select a
menu item, press and hold the Fast Forward button
(about 3 seconds). Press and hold the Fast Rewind
if you want to get back to the previous menu.
On iDrive based system turn the iDrive controller left
or right for browsing. Press the iDrive to select a
song or enter a menu, slide the controller UP and
push the iDrive controller to get back to the previous
menu.
