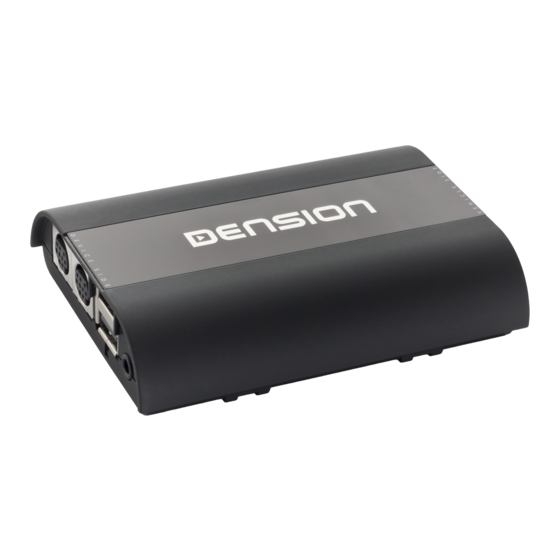

Dension Gateway 500S User Manual

Gateway 500S
(GW53MO1 & GW53MO2)
iPod, USB, AUX
User Manual
v.1.0
G53-9201-2
1. I
NTRODUCTION
The Dension Gateway 500S lets you connect
your iPod or USB storage (stick, hard drive or
mass storage capable mp3 player) to your
original car radio, providing music playback,
menu based control and charging.
Supported USB devices
USB Flash Memory and Hard Disk Drive
File System: FAT16 or FAT32
Storage capacity: up to 320 GB music content
Music Format: MP3, WMA and WAV
Supported iPod / iPhone devices via 30PIN
dock cable (not included in the package)
th
iPod (4 generation)
st nd rd th th
iPod nano (1 , 2 , 3 , 4 , 5 and 6
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic
st nd rd th
iPod Touch (1 , 2 , 3 and 4 generation)
iPhone, iPhone 4S /4 / 3GS / 3G and iPhone
Supported iPod / iPhone
Lightning to USB cable (not included in the
package)
th
iPod nano 7 generation
th
iPod Touch 5 generation
iPhone 5s / 5c / 5
Aux: 3.5mm stereo aux input
2. G
ETTING STARTED
Before you start, please check that your iPod /
iPhone is up to date. You can get the latest
firmware updates via iTunes.
3. O
PERATION
Switch your car radio ON and select CD changer
as source. If in doubt consult the audio section of
your car's instruction manual.
Depending on your Radio, the music menu can
be browsed with Radio buttons (Next / Back),
MMI or i-Drive controller (for further details
please go to Section 6).
Connect your iPod to the Gateway. It will start
playing the first song on the device. In case the
Gateway has been in use earlier, music will
continue from the last played point.
Switching off the car or the radio will stop
playback and put the source devices to stand-by
(except which is connected into AUX).
Next / Back and Random / Repeat / Scan buttons
(radio dependent) work as expected.
If no device is connected then AUX GW is
displayed and the time counter is just counting
up.
4. A
BOUT SOURCES
You can select the music source for playback in
the Source Menu. This can be:
th
generation)
•
GW AUX: in AUX mode the radio displays
'AUX GW' on the radio screen and cluster
display (Car / Radio dependent). No control
function is available
•
iPod UI:
iPod remains active (i.e. the click wheel
devices via
still works) so you can use it for browsing as
normal. In this mode the id3 tag info will not
be
synchronized and
on the screen
•
iPod GW: the click wheel or the touch
screen (iPhone, iPod touch) is disabled,
iPod displays the currently played song
the original user interface of the
displayed, time counter is
only 'iPod UI' will appear
information, except on touch and iPh
where 'Accessory attached' messag
displayed. The iPod playback contro
possible from the car stereo (Head Uni
the steering wheel only. In this mode
id3 tag info and the time is displayed on
radio display (Radio dependent)
•
USB: the playback is controlled from
Gateway. ID3 tag info will be displaye
that details are properly filled out)
Please note: Gateway returns to playb
screen after 15 - 30 seconds (radio depend
of inactivity in any other browsing mode
5. A G M
BOUT ATEWAY
Browsing and Selecting Music (iPod or US
You can use the other menu items to browse
content of the iPod or USB device
•
Files, Artists, Albums, Titles, Bookma
(for USB only): Provides browsing
selecting the music files on your U
device
•
Music (for iPod only): Allows browsing
selecting music in the sub-menus: Play
Artists, Albums,
Composers, Audiobooks and Podcast
When an artist is selected the PLAY menu it
play all the songs from the given artist. Selec
the ALL menu option will lists all the songs f
the given artists. The albums from the artist
listed as separate items afterwards.
When an album is selected, all the songs f
the given album are listed as separate it
afterwards.
The following menu items available in the m
menu serve as specific functions for m
playback:
•
Play All: plays all the music from
not
selected source. The playback starts f
the first song on the device
•
Album play: Plays the full album of
song is being played, typically used
random play mode
.
ENU
Songs, Gen
