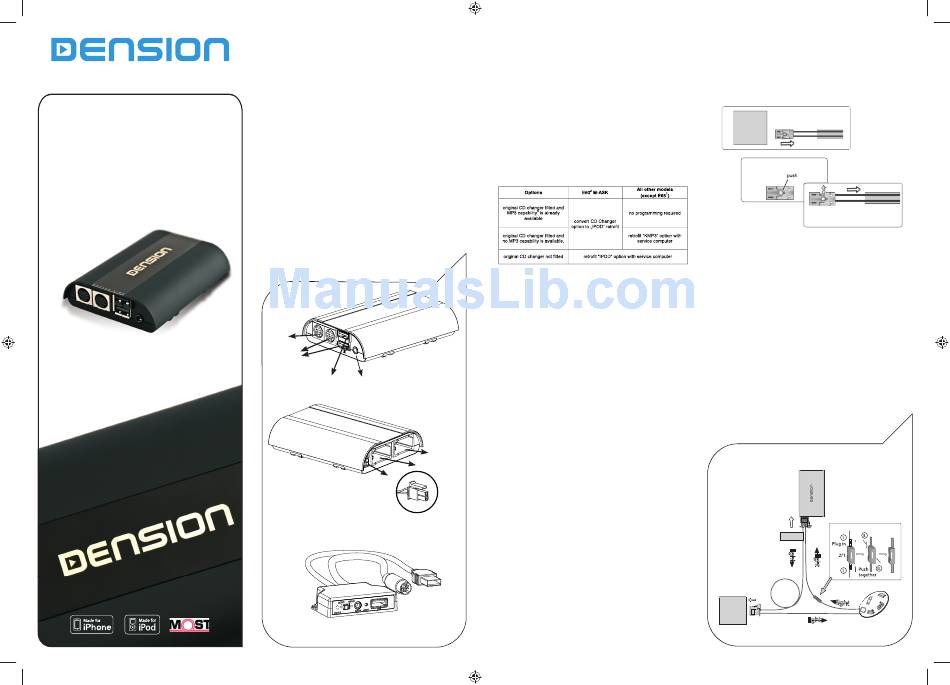

Gateway 500S
(GW53MO1 & GW53MO2)
iPod, USB, AUX
Installation Guide
G53-9203-1

1. Introduction

The Dension Gateway 500S lets you connect your iPod or USB
storage (stick, hard drive or mass storage capable mp3 player) to
your original car radio, providing music playback, menu based
control and charging.
The Gateway 500S is available in 2 diff erent hardware versions:
- Single FOT (GW53MO1) and
- Dual FOT (GW53MO2)
Dual version is recomended for vehicles where original CD-
Changer available (except Audi with MMI High system) and if you
want to retain that functionality.
Package content
• Gateway interface
• Fibre optic cable kit
• Connector Port
• iPod / iPhone dock cable
• Power harness
• Instruction manuals (install/user)
iPod
cable
Connector
port

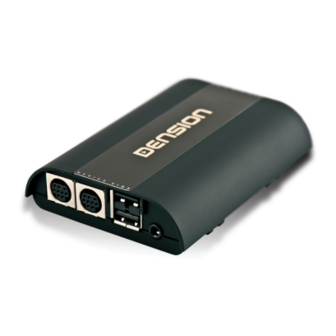

Gateway front view
Not in use
Not in use
CDC side
Car side
Gateway rear view
Power
harness
-red wire
(+12V non switched)
-black (GND)
Connector port

2. Programming

The Gateway 500S emulates a CD changer and uses CD changer
controls to access off board audio sources therefore it may be
necessary to have the car programmed by your dealer in order to
use the GW500S with it.
Programming the car for GW500S
Audi
No programming required
BMW (non iDrive Professional, M-ASK & CCC Prof.)
* For programming we recommend to use 3rd party solutions
like Autologic
Installation in BMW models:
Important note:
- If the SW of the car requires an update or a KMP3 activation,
switch the Gateway to bypass/service mode before you start
the procedure. Before converting or retrofi tting IPOD option,
switch back to GW mode.
1 - E65 means all 7 series model variations (E65/E66)
2 - E60 means all 5 and 6 series model variations
(E60/E61/E63/E64)
3 - the car is MP3 capable if the front CD-Slot reads MP3 audio
discs and the ID3 tags are visible on the display
Mercedes
Generally no programming is required but in some cases (e.g. no
device was connected onto the optical ring) a CD changer will
have to be enabled with the service computer.
Porsche
Generally CD-Changer option needs to be coded if factory option
is missing.

3. Device Installation

The 500S can be installed anywhere on the MOST ring, however
in order to avoid any compatibility or functional issues, please
make sure that the Gateway 500S is the last connected device
on the MOST ring or it is connected to beside the factory CD-
Changer (if available). Please note: Installation of the Gateway
500S is very complex, therefore please have it installed by
Professional Installer.
Important note: If you install a Dual FOT version of the Gateway
500S where the 2nd optical FOT extension is not in use then
please create an optical loop by using the 2nd optical cable
( located in the package) and connect it to the 2nd FOT ('CDC side')
of the Gateway.
MOST ring installation
Disconnect the fi ber optic Male connector from the original
interface (e.g. Head Unit) then remove the fi ber optic housing
from the Male connector and fi nally disconnect (Fig. 1.) the fi ber
optic fi bre (the one which is marked to be the 'signal in' cable –
with an arrow) as it is shown below
(Fig. 1)
1a.
HU
Remove the blue locking clip from the
middle of the fi bre optic housing.
1b.
Strain the hook carefully with a
sharp tool, while pulling out the
optical fi bre from the housing.
Connect that optical wire (use the optical male /male inline
connector) with the 'signal in' cable of the Dension device. The
optical fi ber 'signal out' fi bre of the Dension device must be
connected to the original optic housing. Finally, take the Male
connector and connect it to the original interface. At the end of
the installation please make sure that the light directions of the
MOST optical ring are correct.
Installation Type 1
:
(Fig. 2)
Vehicles supporting multiple CD changers and equipped with
a CD changer
• Audi A4/S4/RS4/A5/A6/S6/RS6/A8/S8/Q7 with MMI-2
High (colour)
These vehicles allow you to select between Gateway audio
sources and the original CD changer through the existing car
audio controls.
(Fig. 2)
3.
Car side
CDC
