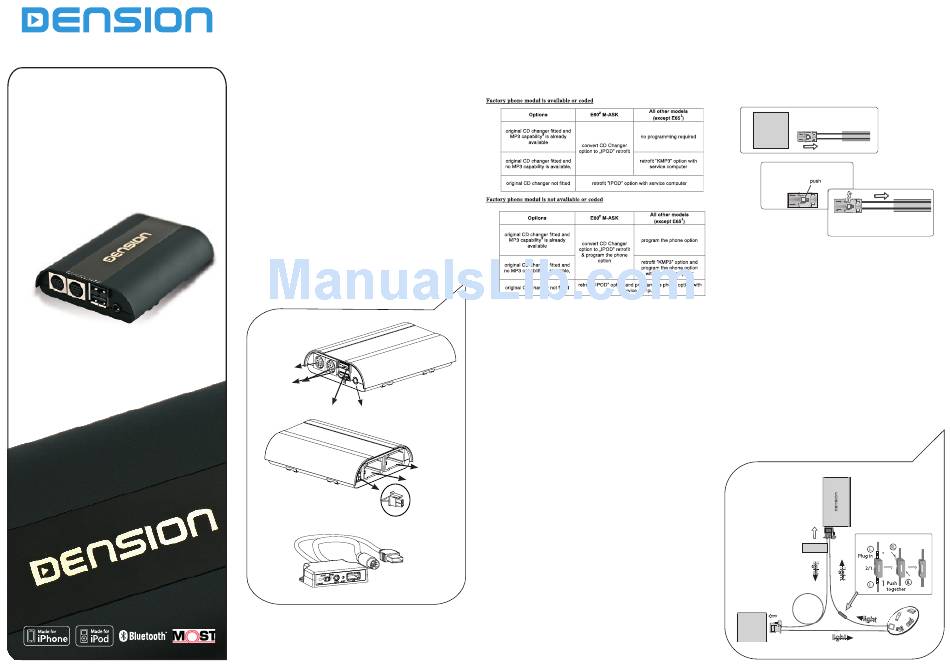

Dension GW52MO1 Installation Manual

Gateway 500S BT
(GW52MO1 & GW52MO2)
iPod, USB, Bluetooth (HFP, A2DP) & AUX

Installation Guide

G52-9202-4
1. Introduction
The Dension Gateway 500S BT lets you connect your iPod or USB
storage (stick, hard drive or mass storage capable mp3 player) to
your original car radio, providing music playback, menu based
control and charging.
The Gateway 500S BT also offers Bluetooth connectivity for
handsfree mobile call and music streaming (via A2DP) using the
original buttons and screens of your vehicle.
The Gateway 500S BT is available in 2 different hardware versions:
- Single FOT (GW52MO1) and
- Dual FOT (GW52MO2)
Dual version is recomended for vehicles where original CD-
Changer available (except Audi with MMI High system) and if you
want to retain that functionality.
Package content
• Gateway interface
• Fibre optic cable kit
• Connector Port
• Power harness
• Instruction manuals (install/user)
• Microphone
Optional accessories
• USB Sync & Charge Cable with Lightning connector (
• iPhone control via iPod dock cable
(IPDC1GW)
• 3G cradle
(IP44CR9)
• iPhone 5 cradle
(IP5LCRU)
• iPhone 5 cradle professional (IP5LCRP)
• DAB+G
(DABACC1)
iPod
cable
Connector

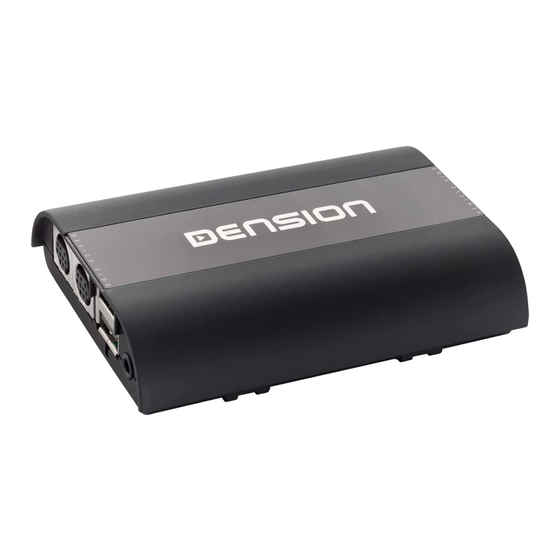

Gateway front view
port
Not in use Microphone
CDC side
Car side
Gateway rear view
Power
-red wire
(+12V non switched)
harness
-black (GND)
Connector port
2. Programming
The Gateway 500S BT emulates a CD changer and uses CD changer
controls to access offboard audio sources therefore it may be
necessary to have the car programmed by your dealer in order to
use the GW500S BT with it.
Programming the car for GW500S BT
Audi
No programming required
BMW (non iDrive Professional, M-ASK & CCC Prof.)
* For programming we recommend to use 3rd party solutions
like Autologic
Installation in BMW models:
IPLC1GW)
Important note:
- If the SW of the car requires an update or a KMP3 activation,
switch the Gateway to bypass/service mode before you start
the procedure. Before converting or retrofitting IPOD option,
switch back to GW mode.
1 - E65 means all 7 series model variations (E65/E66)
2 - E60 means all 5 and 6 series model variations
(E60/E61/E63/E64)
3 - the car is MP3 capable if the front CD-Slot reads MP3 audio
discs and the ID3 tags are visible on the display
Mercedes
Generally no programming is required but in some cases (e.g. no
device was connected onto the optical ring) a CD changer will
have to be enabled with the service computer.
Porsche
Generally CD changer and Phone option needs to be coded
except on US spec. Porsche, where only CD-Changer needs to be
programed.
3. Device Installation
The Gateway 500S BT can be installed anywhere on the MOST
ring, however in order to avoid any compatibility or functional
issues, please make sure that the Gateway 500S BT is the last
connected device on the MOST ring or it is connected to beside
the factory CD-Changer (if available). Please note: Installation
of the Gateway 500S BT is very complex, therefore please have it
installed by Professional Installer.
Important note: If you install a Dual FOT version of the Gateway
500S where the 2nd optical FOT extension is not in use then please
create an optical loop by using the 2nd optical cable ( located in
the package) and connect it to the 2nd FOT ('CDC side') of the
Gateway.
MOST ring installation
Disconnect the fiber optic Male connector from the original
interface (e.g. Head Unit) then remove the fiber optic housing
from the Male connector and finally disconnect (Fig. 1.) the fiber
optic fibre (the one which is marked to be the 'signal in' cable –
with an arrow) as it is shown below
1a.
HU
Remove the blue locking clip from the
middle of the fibre optic housing.
1b.
Strain the hook carefully with a
sharp tool, while pulling out the
optical fibre from the housing.
Connect that optical wire (use the optical male /male inline
connector) with the 'signal in' cable of the Dension device. The
optical fiber 'signal out' fibre of the Dension device must be
connected to the original optic housing. Finally, take the Male
connector and connect it to the original interface. At the end of
the installation please make sure that the light directions of the
MOST optical ring are correct.
Installation Type 1 :
(Fig. 2)
Vehicles supporting multiple CD changers and equipped with
a CD changer
• Audi A4/S4/RS4/A5/A6/S6/RS6/A8/S8/Q7 with MMI-2
High (colour)
These vehicles allow you to select between Gateway audio
sources and the original CD changer through the existing car
audio controls.
3.
Car side
CDC
(Fig. 1)
(Fig. 2)
