Summary of Contents for ClearOne MaxTM EX

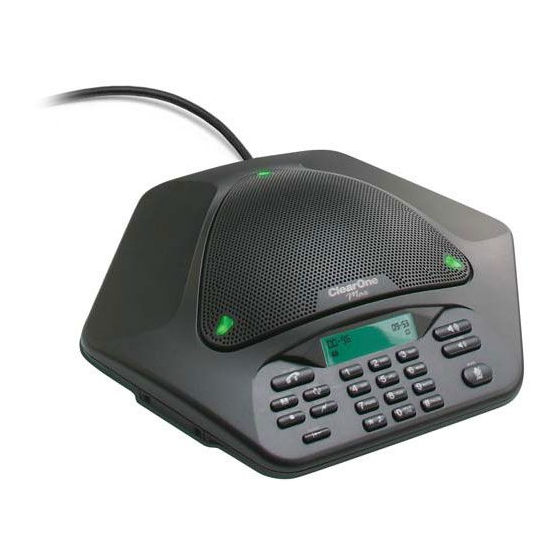

- Page 1 Max™ EX Installation & Operation Manual ClearOne Communications, Inc. ~ 1825 Research Way, Salt Lake City, UT 84119 ~ tel 1-800-945-7730 ~ fax 1-800-933-5107 Printed in China.
-
Page 2: Service And Support
Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 Table of Contents Introduction Thank you for purchasing the ClearOne Max™ EX expandable conferencing phone. Max EX provides premium, full-duplex audio to small conference rooms as a single unit and to larger rooms as an expanded system. Up to four Max EX units can be linked, expanding not only microphone coverage but loudspeaker coverage and control access as well.This creates even distribution of sound for a more natural communications experience. -
Page 3: Important Safety Information
Important safety information Read the safety instructions before first use of this product.This conferencing phone is not designed for making emergency telephone calls when the power fails. Make alternative arrangements for access to emergency services. • Read and understand all instructions and follow all warnings marked on the product. •... -
Page 4: Getting Started
Getting Started Connecting your conferencing phone 1. Connect the Cat. 5 cable from the Link Out jack on the base unit to the Link In jack on the conferencing pod. 2. Connect the base unit to the telephone jack using the RJ-11 telephone cable. 3. - Page 5 Using your Max EX conferencing phone To make a call 1. Press the key. You will hear a dial tone. ON/OFF 2. Dial the number as you would on a standard phone. The number appears on the LCD Figure 5. Dialing screen screen.
-
Page 6: Call Options
User Options Call options In addition to the basic phone operations described in the previous section, you can perform any of the following functions during a call: temporarily change to tone dialing, send a flash signal, display phone number and adjust speaker volume. To temporarily enable tone dialing If you have programmed the phone to use pulse dialing (see page 9), you may need to temporarily change to tone dialing during a call to access voicemail systems, enter pass-... -
Page 7: Tones And Alerts
To program local phone number 1. Press and hold until the Program icon appears on the LCD screen. REDIAL/PROG 2. Press to enter the user phone number menu. 3. Press REDIAL/PROG 3. Enter the local phone number. 4. Press to save the number. Press REDIAL/PROG CLEAR Note: If a number has already been programmed, use CLEAR to delete the old number... -
Page 8: Maintenance
Maintenance Caring for your Max EX • Follow all warnings and instructions marked on your Max EX. • Unplug base unit and conferencing pod from the wall outlet before cleaning. • Do not use liquid or aerosol cleaners. Use a damp cloth moistened with water to clean the outside of your conferencing pod or base unit and power supply. -
Page 9: Specifications
Appendix Specifications DIMENSIONS (W x D x H) RECORD OUTPUT Phone section: 10.5" x 10.5" x 3" Connector: 2.5 mm mono audio (26.7 cm x 26.7 cm x 7.6 cm) Base unit: 4.25" x 5.5" x 2.5" Impedance: <1000 ohm (10.8 cm x 14 cm x 6.4 cm) Bandwidth: 200Hz–3.3kHz Dynamic Range: 60dB... - Page 10 IC Compliance IC: 1970A-158015 Ringer Equivalence Number (REN): 0.1B(ac) Notice The term "IC" before the certification/registration number signifies that Industry of Canada technical specifications were met. This certification means that the equipment meets certain telecommunications network protective operational and safety requirements.The Department does not guarantee the equipment will operate to the user's satisfaction.
