Think Appliances GUH52SD User Manual

52 cm/75 cm canopy hood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

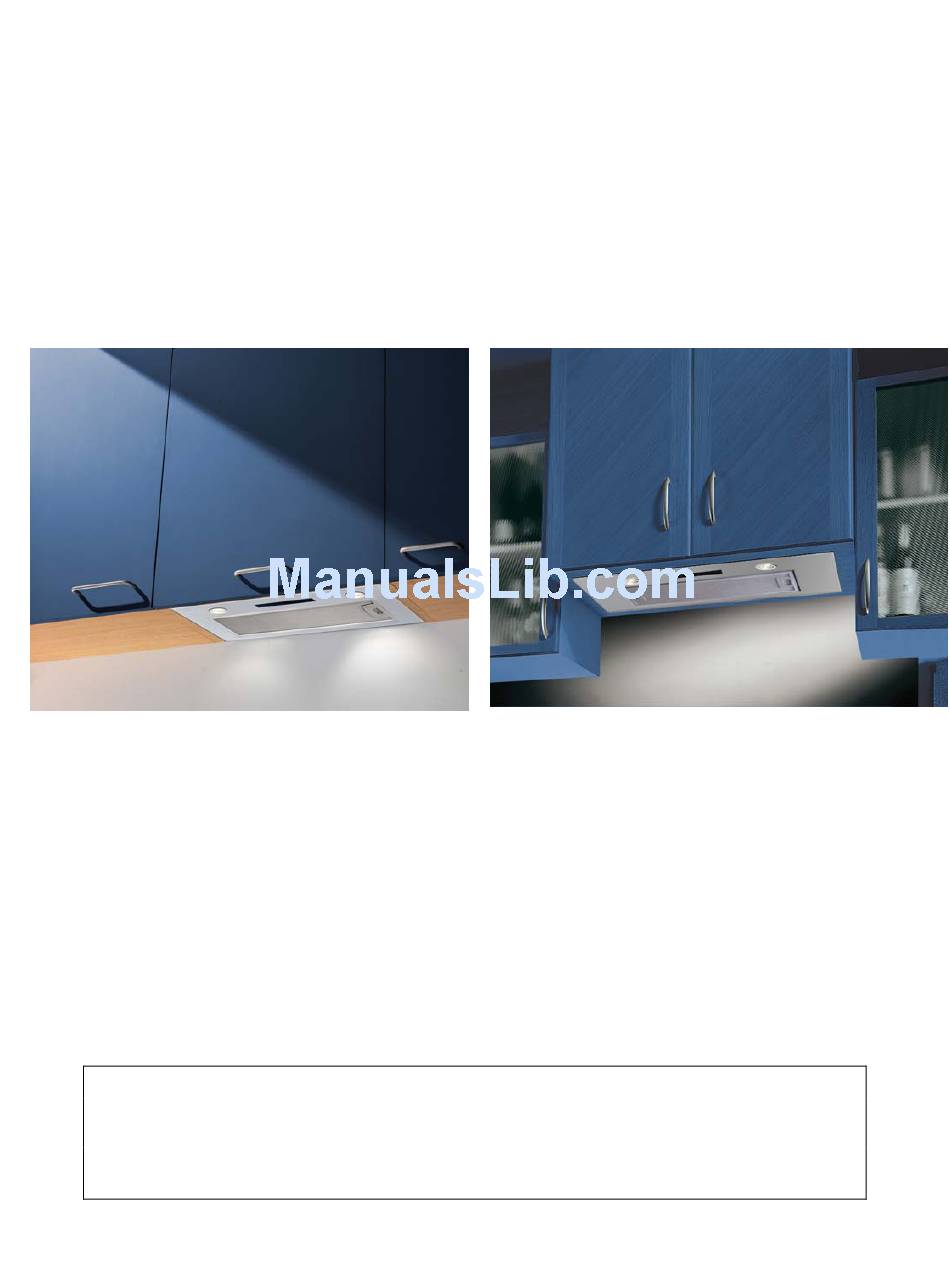

User Manual for your
GUH52SD 52 cm
GUH75 75 cm
Canopy Hood
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 28/06/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUH52SD and is the answer not in the manual?

Questions and answers

Related Manuals for Think Appliances GUH52SD

Summary of Contents for Think Appliances GUH52SD

  • Page 1 User Manual for your GUH52SD 52 cm GUH75 75 cm Canopy Hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
  • Page 2 Contents Page...

  • Page 3: Table Of Contents

    Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood 8 – 9 GUH52SD GUH75 Using your cooker hood 10 - 11 Before first use To use your cooker hood 10 - 11 Cleaning your cooker hood 11 –...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from.
  • Page 6 o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type. o If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.
  • Page 7 o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs. o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood GUH52SD Product dimensions Height: 162 mm Width: 520 mm Depth: 296 mm Your canopy hood is fitted with: o Slider control operation o Integrated axial motor o 3 speeds o 1 washable aluminium grease filter...

  • Page 9: Guh75

    GUH75 Product dimensions Height: 256 mm Width: 746 mm Depth: 296 mm Your stainless steel canopy hood is fitted with: o Slider control operation o Integrated axial motor o 3 speeds o 1 washable aluminium grease filter o Non-return airflow flap o 2 halogen lights o Noise level: 61 / 65 / 68 dB Extraction capacity:...

  • Page 10: Using Your Cooker Hood

    Using your cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.

  • Page 11: Cleaning Your Cooker Hood

    IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE...

  • Page 12: The Grease Filter

    The grease filter o Your cooker hood includes a grease filter which helps to absorb grease particles to protect your kitchen and furniture from greasy residues. o The metallic filter may become flammable if it becomes saturated with greasy residue. o To prevent this fire hazard, the filter should be cleaned regularly.

  • Page 13: Changing A Light Bulb

    o Refit the grease filter once it has dried. o IMPORTANT: Let the grease filter dry thoroughly before refitting it in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 14: Fitting The Carbon Filters

    You will find that one filter will attach over the front of the fan motor. The active carbon filter must be replaced at least every four months depending on usage to allow normal operation when in recirculation mode. GUH52SD (1 x pair S2 carbon filters) o Remove the grease filters.
  • Page 15 2) Hook the carbon filter over the pins that are located at the end of the motor. 3) Turn the carbon filter clockwise until you feel it latch onto the motor’s sides. 4) Replace the grease filters. o When replacing the carbon filter, follow the steps outlined above and turn the carbon filter anti-clockwise to unlatch it from the motor.

  • Page 16: Installation

    3) Turn the carbon filter anticlockwise, until you feel it click into place. o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage.

  • Page 17: Electrical Connection

    lectrical connection YOUR COOKER HOOD IS INT ENDED FOR FITTED AND ERMANENT INSTALLATION. You cooker hood comes supplied with a fitted plug; however should there be a require ment to re-wire the appliance then please follow the uidelines below. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

  • Page 18: Before Beginning Installation

    efore beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then ther e should also be space to connect a ducting hose to the outside.

  • Page 19: Installing Your Cooker Hood

    2) Create an opening in the underneath of the kitchen uni t; the cut- ut must be of the dimensions shown in the drawing below. GUH52SD GUH75 o IMPORTANT: If you are going to connect your cooker hood to external ducting, then you must complete the steps listed in the “Connecting to external ducting”...
  • Page 20 3) Make a hole in the inside of the kitchen unit for the electrical cable to feed through. Remove the screws securing the extractor frame (B) to the hood and unscrew the 2 lights. Ensure that the two support clips on either side of the hood are set to accommodate the thickness of the mounting surface, by adjusting the...

  • Page 21: Connecting To External Ducting

    Connecting to external ducting o Connect the coupling to the top of the cooker hood, using two of the smaller screws provided. o Connect a Ø150 mm ducting hose to a discharge outlet that is suitable for cooking vapours. o The discharge outlet should have a cross section of at least 150 cm²...

  • Page 22: Extraction Mode Or Recirculation Mode

    Extraction mode or recirculation mode? IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. What is the difference between extraction and recirculation modes? In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting.

  • Page 23: Troubleshooting

    Troubleshooting MPORTANT: If your cooker hood appears not to be operating roperl y before contacting the Advice Line, please refer to the table be low. My cooker hood will not start. Check that the hood is connected to the power supply and wh ther you have selected any of the fan speeds.
  • Page 24 My applian e isn’t working correctly IMPORTANT: If your appliance appears not to be perating correctly, then you should disconnect from your mains supply and then contact the Advice Line on telephone number 1800 444 357. O NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

  • Page 28: Contact Details

    Thin k Appliances Pty L 416-424 Barry Rd Coolaroo VIC 3048 Sales Telephone 1300 132 824 Service Telephone 1800 444 357 Website www.thinkappliances.com...
