Summary of Contents for Venue Lighting Effects Dual Scanner

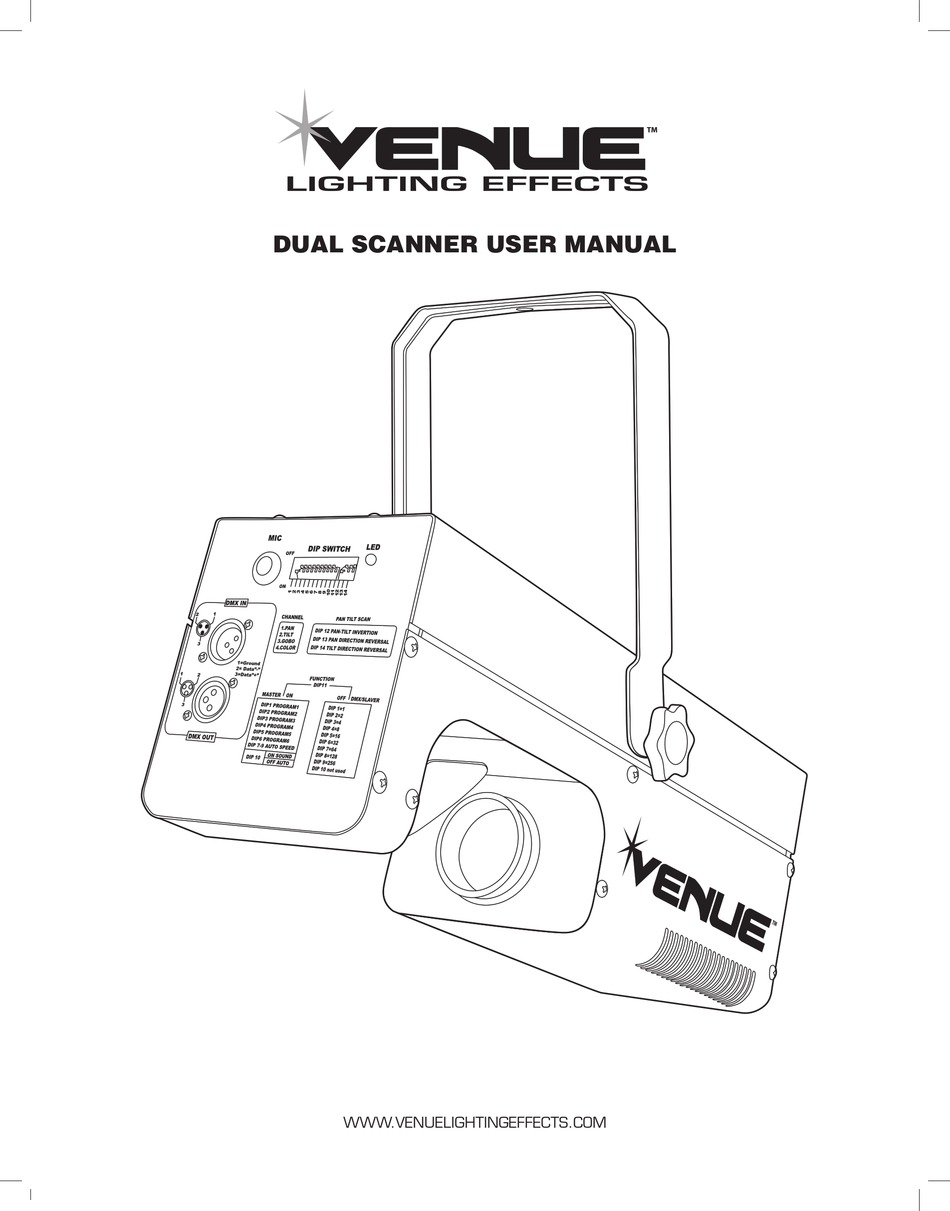

- Page 1 DUAL SCANNER USER MANUAL www.venuelightingeffects.com...
-
Page 2: Specifications
16.5 lbs. / 7.5 kg SAFETY INSTRUCTIONS Read user manual before connecting or operating your dual scanner. • Always completely disconnect the scanner and allow to cool down for 15 minutes before replacing the lamp or fuse. • Do not use the scanner near water. -
Page 3: Operation
OPERATION DIP Switch Settings: This product utilizes a DIP switch address block to select the mode of operation, such as DMX Mode, Standalone-Auto (Master/Slave), or Sound Active (Master/Slave). About DIP Switches: DIP Switch #1 through #9 The DMX receipt mode: Address code The Master/Slave mode: 1 –... -
Page 4: How To Select Functions
HOW TO SELECT FUNCTIONS: DMX Receipt Mode: Flip DIP Switch #11 to “OFF”, the fixture is now in DMX receipt mode. DIP Switch #1 through #9 set the DMX address of the fixture. Auto Mode: When using one fixture only, put DIP switch #11 “ON”. This places the unit into Stand Alone Auto Mode. Flip DIP Switches #1 through #6 to the “ON”... -
Page 5: Sound-Active Mode
SOUND ACTIVE MODE When using one fixture only, put DIP switch #11 “ON”: This places the unit into Stand Alone Sound Active Mode and select DIP Switches 1-6 to the “ON” position to activate built in programs. To adjust the speed of the program refer to the chart below and turn “ON”... -
Page 6: Channels And Digital Values
CHANNELS AND DIGITAL VALUES CHANNEL 1 PAN (X) CHANNEL 2 TILT(Y) CHANNEL 3 GOBO Black out 6-15 Dimming 16-223 Gobo Rotation and Gobo Selection 224-239 Gobo Scroll in steps 240-255 Strobe Speed (Shutter) 7 Speeds CHANNEL 4 COLOR 0-143 Mixed Colors 144-239 Incremental Color Change 240-255... -
Page 7: Troubleshooting
TROUBLE SHOOTING FAULT CHECK Fixture does not turn on Check power line connection and fuse. If they are in working order, contact your dealer. Output power seems low Check to see that the mirror and front lens are clean. Fixture does not respond Check the control cable from the controller and along the chain. -
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This symbol is intended to alert the user to the presence of non-insulated “dangerous voltage” within the products enclosure. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.
