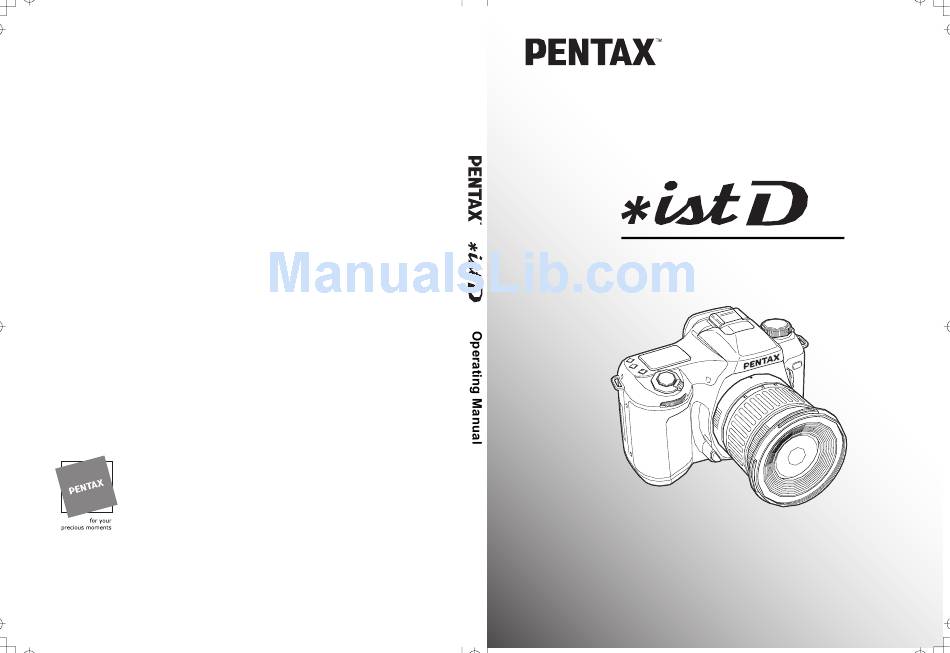

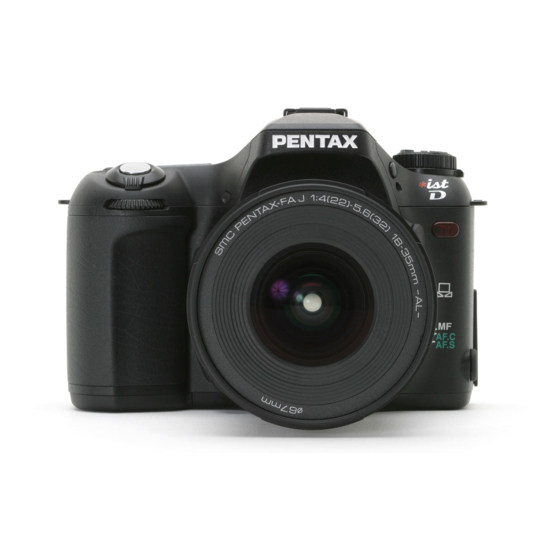

Page 1 Operating Manual Weiveldlaan 3-5, 1930 Zaventem, BELGIUM (http://www.pentax.be) PENTAX (Schweiz) AG Widenholzstrasse 1 Postfach 367 8305 Dietlikon, SWITZERLAND (http://www.pentax.ch) PENTAX Scandinavia AB P.O. Box 650, 75127 Uppsala, SWEDEN (http://www.pentax.se) PENTAX U.S.A., Inc 600 12 Street, Suite 300 Golden, Colorado 80401 U.S.A.
Page 2: For Your Safety
• If any irregularities occur during use, such as smoke or a strange odor, stop use immediately, remove the batteries or the AC adapter, and contact your nearest PENTAX service center. Continued use could cause a fire or electric shock. • During thunderstorms, unplug and discontinue use of the AC adapter. Continued use could cause equipment failure, a fire, or electric shock.
Page 3: Precautions For Battery Usage
• Always confirm that the camera is working properly when the camera has not been used for a long time, or before important occasions (weddings, trips, etc.). PENTAX is not responsible for consequential damages (costs incurred for photography, lost profits, etc.) arising from failure of this product.
Page 4: Table Of Contents
e_000_kb321.book Page 3 Wednesday, August 27, 2003 12:09 PM CONTENTS FOR YOUR SAFETY................1 PRECAUTIONS FOR BATTERY USAGE ..........2 Handling the Camera................2 CONTENTS ..................3 Contents of this manual ................7 Before using your camera Camera Characteristics ............... 10 Checking Package Contents............11 Names of Working Parts .............
Page 5 e_000_kb321.book Page 4 Wednesday, August 27, 2003 12:09 PM Basic Operation Basic Operation (Shooting)............38 Holding the Camera................38 Taking Pictures ...................39 Basic Operation (Playback) ............41 Playing Back Images ................41 Selecting Previous or Next Images.............42 Shooting Functions Selecting the Drive Mode ............44 Single-frame shooting.................44 Consecutive Shooting.................45 Self-Timer shooting................46...
Page 6 e_000_kb321.book Page 5 Wednesday, August 27, 2003 12:09 PM EV Compensation ................ 79 Using the Zoom Lens ..............81 Auto Bracketing ................82 Multiple Exposure Shooting............84 Using the Flash ................86 Using the built-in flash ................86 Using an External Flash..............93 Playback Functions Zoom Playback................
Page 7 e_000_kb321.book Page 6 Wednesday, August 27, 2003 12:09 PM Sensor Cleaning ................125 Resetting to Default Settings ............126 Custom Function Chart ............. 127 List of City Names..............130 Connecting Connecting to a TV ..............132 Connecting to a PC ..............133 Appendix More Details about Capture Functions ........
Page 8: Contents Of This Manual
e_000_kb321.book Page 7 Wednesday, August 27, 2003 12:09 PM Contents of this manual This operating manual contains the following chapters. 1 Before using your camera Explains camera characteristics, accessories and the names of various parts. 2 Getting Started Explains your first steps from purchasing the camera to taking pictures.
Page 9 e_000_kb321.book Page 8 Wednesday, August 27, 2003 12:09 PM MEMO...
Page 10: Before Using Your Camera
e_000_kb321.book Page 9 Wednesday, August 27, 2003 12:09 PM Before using your camera Camera Characteristics ........10 Checking Package Contents ........11 Names of Working Parts........12...
Page 11: Camera Characteristics
This camera can be used with a variety of Pentax 35mm interchangeable lenses. While the size of the CCD in 23.5×15.7mm, the format size of the 35mm camera is 36×24mm.
Page 12: Checking Package Contents
S-SW10 O-ST10 CR-V3 (two) SLR Digital Camera Operating Manual Operating manual For optimum camera performance, please read the Operating Manual before using the camera. Lithium battery CR2016 Operating manual PENTAX PHOTO Browser PENTAX PHOTO Laboratory (Installed on camera) Operating manual...
Page 13: Names Of Working Parts
e_000_kb321.book Page 12 Wednesday, August 27, 2003 12:09 PM Names of Working Parts Camera Main switch Mode dial Shutter release button Self-timer lamp Flash mode button X-synch terminal Drive mode Mirror button Manual white balance button Green button Focus mode Tv dial lever AF coupler...
Page 14 e_000_kb321.book Page 13 Wednesday, August 27, 2003 12:09 PM Hot shoe Diopter adjustment lever Built-in flash LCD panel Av dial Flash pop-up Nine-image display / button Zoom display dial Card cover Metering mode select lever Card cover unlock lever Cable release socket Viewfinder Terminal cover...
Page 15: Lcd Panel Indications
e_000_kb321.book Page 14 Wednesday, August 27, 2003 12:09 PM LCD Panel Indications Quality level (p.52) White balance mode (p.55, 142) Recorded Pixels (p.51) Busy Drive mode (p.44) Battery exhaustion warning (p.24) Flash mode (p.86) Auto Bracket (p.82) Shutter speed (p.62) Multiple exposure shooting (p.84) Sensitivity (p.54) Number of recordable images...
Page 16: Lcd Monitor Indications
e_000_kb321.book Page 15 Wednesday, August 27, 2003 12:09 PM LCD Monitor Indications 1. Capture Mode Press the INFO button in capture mode to display the capture function settings on the LCD monitor. Information AF.S 18mm L sRGB 2003/10/01 12:00 Color space (p.128) Focus points (p.74) Sensitivity (p.54) Saturation (p.117)
Page 17 e_000_kb321.book Page 16 Wednesday, August 27, 2003 12:09 PM 2. Playback The camera switches between Normal Playback Screen → Histogram Display → Detailed Information Display every time you press the INFO button during playback. • Histogram • Detailed information 3 4 5 6 100-0120 100-0121 AF.S...
Page 18: Viewfinder Indications
e_000_kb321.book Page 17 Wednesday, August 27, 2003 12:09 PM Viewfinder Indications Focus points Tv dial enabled Spot metering frame Av dial enabled Autofocus frame AE Lock indicator Shutter speed Aperture value Flash status information Number of recordable images Focus points indication Exposure compensation step Focus indicator Bar graph...
Page 19 e_000_kb321.book Page 18 Wednesday, August 27, 2003 12:09 PM MEMO...
Page 20: Getting Started
e_000_kb321.book Page 19 Wednesday, August 27, 2003 12:09 PM Getting Started Attaching the Strap ..........20 Powering the Camera..........21 Turning the Camera On and Off......26 Initial Settings............27 Attaching the Lens ..........32 Installing / Removing the CF Card.......34 Adjusting the Viewfinder Diopter......36...
Page 21: Attaching The Strap
e_000_kb321.book Page 20 Wednesday, August 27, 2003 12:09 PM Attaching the Strap Pass the end of the strap through the strap lug, then secure to the inside of the clasp. Pass the other end of the strap through the other strap lug on the camera, then secure to the inside of the clasp.
Page 22: Powering The Camera
e_000_kb321.book Page 21 Wednesday, August 27, 2003 12:09 PM Powering the Camera Load batteries in the camera. Use two CR-V3, or use four AA lithium batteries, AA Ni-MH batteries, or AA alkaline batteries. Open the battery cover by pushing the battery cover unlock lever as shown in the illustration and slide the battery cover toward the lens...
Page 23: Batteries
e_000_kb321.book Page 22 Wednesday, August 27, 2003 12:09 PM • AA lithium batteries, AA alkaline batteries and CR-V3 are not rechargeable. • Do not open the battery cover or remove the batteries when the power switch is on. • Remove the batteries when you will not use the camera for a long while. Otherwise, the battery may leak.
Page 24: Battery Level Indicator
e_000_kb321.book Page 23 Wednesday, August 27, 2003 12:09 PM Battery level indicator You can confirm remaining battery life by checking the { displayed on the LCD panel. : Adequate power ↓ : Battery is running low ↓ : Battery is exhausted ↓...
Page 25: Number Of Captures And Playback Time (New Batteries)
Approx.120 AA-Alkaline (0°C) Not applicable Not applicable Not applicable Approx.60 • These figures are based on PENTAX measuring conditions and may vary by capture mode or shooting conditions. • Battery performance temporarily decreases as the temperature decreases. When using the camera in cold climates, have extra batteries on hand, keeping them warm in your pocket.
Page 26: Using The Ac Adapter
e_000_kb321.book Page 25 Wednesday, August 27, 2003 12:09 PM Using the AC Adapter We recommend using the AC adapter D-AC10 (optional) when using the LCD monitor for a long time or when connecting to your PC. Make sure the camera is turned off before opening the terminal cover.
Page 27: Turning The Camera On And Off
e_000_kb321.book Page 26 Wednesday, August 27, 2003 12:09 PM Turning the Camera On and Off Turn the main switch to ON. The camera will turn on. Turn the main switch to OFF to turn off the camera. • Always turn the camera OFF when not in use. •...
Page 28: Initial Settings
e_000_kb321.book Page 27 Wednesday, August 27, 2003 12:09 PM Initial Settings The first time the camera is turned on after purchasing, the “Initial Setting” screen appears on the LCD monitor. Follow the procedure below to set the language displayed on the LCD monitor and the current date and time. Once setting is done, these will not need to be set again when turning your camera on.
Page 29: Setting The Home Town
e_000_kb321.book Page 28 Wednesday, August 27, 2003 12:09 PM Setting the Home Town You can choose the city (Home Town) in which you will use the camera. Use the four-way controller (45) Initial setting to select your applicable city En g lish (Home Town).
Page 30: Setting The Video Output Format
e_000_kb321.book Page 29 Wednesday, August 27, 2003 12:09 PM Setting the Video Output Format You can choose the output format (NTSC or PAL) for playing back pictures using a TV monitor. Use the four-way controller (45) Initial setting to select the video output format. En g lish The default setting is NTSC.
Page 31 e_000_kb321.book Page 30 Wednesday, August 27, 2003 12:09 PM Use the four-way controller (23) to select 24h (24-hour display) or 12h (12-hour display). Press the four-way controller (5). Date Adjust 23 is displayed above and below the Date Style mm/dd/yy month.
Page 32 e_000_kb321.book Page 31 Wednesday, August 27, 2003 12:09 PM Press the OK button. The camera is ready to take a picture. When you set the date and time using the MENU button, you will return to the Menu screen. Press the OK button again.
Page 33: Attaching The Lens
e_000_kb321.book Page 32 Wednesday, August 27, 2003 12:09 PM Attaching the Lens Remove the body mount cover and the lens mount cover in the illustration. Align the red dots on the camera and the lens, and secure by turning the lens clockwise until it clicks.
Page 34 e_000_kb321.book Page 33 Wednesday, August 27, 2003 12:09 PM • The body mount cover is a cover for shipping purpose to prevent scratches and block dust. For long-term camera storage, the optional accessory “Body Mount Cap K” is available, and has a lock mechanism. •...
Page 35: Installing / Removing The Cf Card
e_000_kb321.book Page 34 Wednesday, August 27, 2003 12:09 PM Installing / Removing the CF Card Captured images are recorded on the compact flash (CF) card. Make sure the camera is turned off before installing or removing a CF card (market product). You can also use a Microdrive™...
Page 36: Removing
e_000_kb321.book Page 35 Wednesday, August 27, 2003 12:09 PM Removing Push the card cover unlock lever in the direction indicated to open the card cover. Press the card eject button to remove the CF card. Card eject button Close the card cover.
Page 37: Adjusting The Viewfinder Diopter
e_000_kb321.book Page 36 Wednesday, August 27, 2003 12:09 PM Adjusting the Viewfinder Diopter Adjust the viewfinder to match your eyesight. Look through the viewfinder and point and camera at a well- lit scene. Then move the diopter adjustment lever left or right. Adjust the position until the autofocus frames and the focus points in the viewfinder are in clear focus.
Page 38: Basic Operation
e_000_kb321.book Page 37 Wednesday, August 27, 2003 12:09 PM Basic Operation Basic Operation (Shooting)........38 Basic Operation (Playback)........41...
Page 39: Basic Operation (Shooting)
e_000_kb321.book Page 38 Wednesday, August 27, 2003 12:09 PM Basic Operation (Shooting) Holding the Camera How you hold the camera is important when taking pictures. • Hold the camera firmly with both hands. • Press the shutter release button gently when taking a picture. Horizontal position Vertical position •...
Page 40: Taking Pictures
e_000_kb321.book Page 39 Wednesday, August 27, 2003 12:09 PM Taking Pictures Set the camera to green program AE mode. Set the mode dial to 7. (p.59) Set the focus mode to Autofocus. Set the focus mode lever to l. (p.70) Press the flash pop-up button to activate the flash.
Page 41: Operating The Shutter Release Button
e_000_kb321.book Page 40 Wednesday, August 27, 2003 12:09 PM Adjust the focus and take a picture. Position the subject within the autofocus frame and press the shutter release button to take the picture (p.17). The flash fires automatically based on light conditions.
Page 42: Basic Operation (Playback)
e_000_kb321.book Page 41 Wednesday, August 27, 2003 12:09 PM Basic Operation (Playback) Playing Back Images You can play back the still pictures. Press the playback button (Q) after taking a picture. The most recently captured image is displayed on the LCD monitor. Press the Playback button again, or press the shutter release button halfway to return to capture mode.
Page 43: Selecting Previous Or Next Images
e_000_kb321.book Page 42 Wednesday, August 27, 2003 12:09 PM Selecting Previous or Next Images You can play back the still pictures, cycling through one at a time. Press the playback button (Q) after taking a picture. The captured image is displayed on the LCD monitor.
Page 44: Shooting Functions
e_000_kb321.book Page 43 Wednesday, August 27, 2003 12:09 PM Shooting Functions Selecting the Drive Mode........44 Setting the Recorded Pixels and Quality Level ..51 Setting the Sensitivity...........54 Setting the White Balance ........55 Selecting the Metering Method ......57 Capture Modes ............59 Focusing ..............70 EV Compensation..........79 Using the Zoom Lens..........81 Auto Bracketing.............82...
Page 45: Selecting The Drive Mode
e_000_kb321.book Page 44 Wednesday, August 27, 2003 12:09 PM Selecting the Drive Mode This camera has four drive modes. Set the mode dial to your desired capture mode before selecting the drive mode. (p.59) One picture is taken each time the shutter release button 9 Single-frame is pressed.
Page 46: Consecutive Shooting
e_000_kb321.book Page 45 Wednesday, August 27, 2003 12:09 PM Consecutive Shooting Pictures can be taken consecutively while the shutter release button is held down. Press the drive mode button [g] until [j] appears on the LCD panel. Press the shutter release button halfway down to focus on the subject.
Page 47: Self-Timer Shooting
e_000_kb321.book Page 46 Wednesday, August 27, 2003 12:09 PM Self-Timer shooting Use the self-timer mode to include the photographer in the picture. The shutter will be released about 12 seconds after the shutter release button is pressed. Mount the camera to a tripod. Press the drive mode button [g] until [g] appears on the LCD panel.
Page 48 e_000_kb321.book Page 47 Wednesday, August 27, 2003 12:09 PM Press the shutter release button halfway down to compose and focus on the subject by looking through the viewfinder. The focus indicator []] lights up when the subject is in focus. Press the shutter release button completely.
Page 49 e_000_kb321.book Page 48 Wednesday, August 27, 2003 12:09 PM Press the drive mode button [g] after the picture is taken. The drive mode returns to single-frame shooting from self-timer shooting. Press the drive mode button to cancel the self-timer operation before it is completed.
Page 50: Remote Control Shooting
e_000_kb321.book Page 49 Wednesday, August 27, 2003 12:09 PM Remote Control Shooting The shutter can be released with the remote control unit (optional). The shutter will be released 3 seconds after the shutter release button on the remote control unit is pressed. Mount the camera to a tripod.
Page 51 • The camera automatically returns to single-frame drive mode after the remote control shooting mode is left unused for 5 minutes. • The remote control unit battery can send a remote control signal about 30,000 times. Please contact PENTAX service center to exchange the battery. (This will involve a fee.)
Page 52: Setting The Recorded Pixels And Quality Level
e_000_kb321.book Page 51 Wednesday, August 27, 2003 12:09 PM Setting the Recorded Pixels and Quality Level Setting the Recorded Pixels You can select the number of recorded pixels from L (3008 × 2008), M (2400 × 1600) and S (1536 × 1024). The more pixels there are the larger the image size and file size.
Page 53: Setting The Quality Level
e_000_kb321.book Page 52 Wednesday, August 27, 2003 12:09 PM Set the mode dial to your desired capture mode. The camera is ready to take a picture. • Pressing the green button while setting the recorded pixels will make the size revert to the default value (L).
Page 54: Lcd Panel
e_000_kb321.book Page 53 Wednesday, August 27, 2003 12:09 PM Select the mode dial to 8. Select the quality level with the b dial. Confirm the quality level on the LCD panel. Set the mode dial to your desired capture mode. The camera is ready to take a picture.
Page 55: Setting The Sensitivity
e_000_kb321.book Page 54 Wednesday, August 27, 2003 12:09 PM Setting the Sensitivity You can set the sensitivity to match the brightness of the surroundings. The sensitivity can be set within a range of sensitivity equivalent to ISO 200 to 1600. Set the mode dial to o.
Page 56: Setting The White Balance
e_000_kb321.book Page 55 Wednesday, August 27, 2003 12:09 PM Setting the White Balance The color of the subject changes with the light source. For example, the same white object will be a different shade of white in daylight than under a light bulb.
Page 57: The Lcd Panel
e_000_kb321.book Page 56 Wednesday, August 27, 2003 12:09 PM Confirm the white balance on the LCD panel. Set the mode dial to your desired capture mode. • See page142 for manual adjustment method. • Pressing the green button while setting the white balance will make the white balance revert to the default value (F).
Page 58: Selecting The Metering Method
e_000_kb321.book Page 57 Wednesday, August 27, 2003 12:09 PM Selecting the Metering Method You can choose the part of the screen to use for measuring brightness and determining exposure. Multi (16)-segment metering, center-weighted metering or spot metering mode can be selected in this camera. Using the Multi(16)-Segment Metering The scene in the viewfinder is metered in 16 different zones as shown in the illustration...
Page 59: Using The Center-Weighted Metering
e_000_kb321.book Page 58 Wednesday, August 27, 2003 12:09 PM Using the Center-Weighted Metering Metering is weighted at the center of the screen. Use this metering when you want to compensate the exposure by experience, instead of leaving it to the camera. The illustration shows that sensitivity increases as the pattern height increases (center).
Page 60: Capture Modes
e_000_kb321.book Page 59 Wednesday, August 27, 2003 12:09 PM Capture Modes This camera has six capture modes available: green program AE mode, e (program) mode, b (shutter-priority) mode, c (aperture-priority) mode, a (manual) mode and p (bulb) mode. Using the Green Program AE mode Shutter speed and aperture are set automatically according to the program line, for taking pictures at the proper exposure.
Page 61: Using The P (Hyper Program) Mode
e_000_kb321.book Page 60 Wednesday, August 27, 2003 12:09 PM Using the P (Hyper Program) mode Shutter speed and aperture are automatically set according to the program line for taking pictures at the proper exposure. You can also use the Tv dial and Av dial to change the shutter speed and aperture while keeping the proper exposure (Hyper program).
Page 62 e_000_kb321.book Page 61 Wednesday, August 27, 2003 12:09 PM Hyper Program • To change shutter speed The camera switches to shutter speed-priority AE when you turn the b dial in the e (Hyper Program) mode. • Shutter speed can be set to a value within the range appropriate for the aperture value.
Page 63: Using The Tv (Shutter-Priority) Mode
e_000_kb321.book Page 62 Wednesday, August 27, 2003 12:09 PM Using the Tv (Shutter-priority) mode The appropriate aperture value is automatically set by the camera for a proper exposure to match the brightness of the subject when the shutter speed is selected. This mode is suitable for freezing the action with a faster shutter speed or capturing a flowing dynamic image with a slower shutter speed.
Page 64: Exposure Warning
e_000_kb321.book Page 63 Wednesday, August 27, 2003 12:09 PM • Set the aperture to the s position while holding down the auto-lock button when using a lens with an aperture ring. • The shutter speed is displayed on the LCD panel whenever the camera is on. •...
Page 65: Using The Av (Aperture-Priority) Mode
e_000_kb321.book Page 64 Wednesday, August 27, 2003 12:09 PM Using the Av (Aperture-priority) mode The shutter speed is automatically set by the camera for a proper exposure to match the brightness of the subject when the aperture value is selected. This mode is ideal for shooting landscapes with increased depth of field, or a portrait against a blurred background.
Page 66 e_000_kb321.book Page 65 Wednesday, August 27, 2003 12:09 PM • Set the aperture to the s position while holding down the auto-lock button when using a lens with an aperture ring. • The aperture is displayed on the LCD panel whenever the camera is on.
Page 67: Using The M (Hyper Manual Exposure) Mode
e_000_kb321.book Page 66 Wednesday, August 27, 2003 12:09 PM Using the M (Hyper manual exposure) mode This mode is a convenient for taking pictures using the same shutter speed and aperture setting combination or taking intentionally under- exposed (darker) or over-exposed (brighter) photographs. Set the mode dial to M Press the green button Shutter speed and aperture are...
Page 68 e_000_kb321.book Page 67 Wednesday, August 27, 2003 12:09 PM How to read the viewfinder bar graph In a (Hyper manual exposure) mode, a bar graph appears in the viewfinder. If the 9 are at the center of the bar, it indicates correct exposure.
Page 69: Using The B (Bulb) Mode
e_000_kb321.book Page 68 Wednesday, August 27, 2003 12:09 PM Using the B (Bulb) mode This mode is useful for the long exposures required for shooting night scenes and fireworks. Set the mode dial to p. • Use a steady tripod to prevent camera shake and use the optional Cable Switch CS-205 when using this mode.
Page 70: About The Ae-L (Ae Lock)
e_000_kb321.book Page 69 Wednesday, August 27, 2003 12:09 PM About the AE-L (AE Lock) AE Lock is a function that memorizes the exposure prior to taking the picture. Use this when the subject is too small or backlit and a proper exposure setting cannot be obtained.
Page 71: Focusing
e_000_kb321.book Page 70 Wednesday, August 27, 2003 12:09 PM Focusing Autofocus The camera adjusts the focus automatically. There are two autofocus modes. When you press the shutter release button halfway, l (Single mode) locks the focus and k (Continuous mode) adjusts the focus continuously.
Page 72: Using The Af.c Autofocus (Continuous Mode)
e_000_kb321.book Page 71 Wednesday, August 27, 2003 12:09 PM Look through the viewfinder and press the shutter release button halfway down to focus on the subject. The focus indicator []] lights up in the viewfinder when the subject is in focus.
Page 73: Manual Focus
e_000_kb321.book Page 72 Wednesday, August 27, 2003 12:09 PM Look through the viewfinder and press the shutter release button halfway down to focus on the subject. The focus indicator []] lights up in the viewfinder when the subject is in focus.
Page 74 e_000_kb321.book Page 73 Wednesday, August 27, 2003 12:09 PM Look through the viewfinder and press the shutter release button halfway and turn the focusing ring to adjust focus on the subject. The focus indicator []] lights up and you will hear a double beep when the subject comes into focus.
Page 75: Selecting The Focus Points
e_000_kb321.book Page 74 Wednesday, August 27, 2003 12:09 PM Selecting the focus points There are 11 focus points in the autofocus frames. You can select the focus points to use depending on the scene you are shooting. Setting the focus point mode to AUTO The camera selects the optimum focus point position even if the subject is not centered.
Page 76 e_000_kb321.book Page 75 Wednesday, August 27, 2003 12:09 PM Look through the viewfinder and check where you want to focus. Use the four-way controller [2 3 4 5] to select the desired focus point. The selected focus point is superimposed in red in the viewfinder. Check the set focus point with the focus points indicator at the bottom of the viewfinder when you have trouble seeing the superimposed focus point because of the backlit or other conditions.
Page 77: Focus Lock
e_000_kb321.book Page 76 Wednesday, August 27, 2003 12:09 PM Press the shutter release button halfway. Only the center is focused where the focus point is superimposed. Set the focus point select dial to 5 to cancel the selected focus point and return to automatic setting.
Page 78 e_000_kb321.book Page 77 Wednesday, August 27, 2003 12:09 PM Lock the focus. Keep the shutter release button pressed halfway. The focus will remain locked. Re-compose the picture while keeping the shutter release button pressed halfway down and press the shutter release button fully to take the picture.
Page 79: Autofocus Illuminator
e_000_kb321.book Page 78 Wednesday, August 27, 2003 12:09 PM Autofocus illuminator When the flash is up in l (single mode) where the subject in dark area, pressing the shutter release button halfway will automatically fire the built- in flash several times, enabling the autofocus to focus on the subject. Hard-to-Autofocus Subjects The autofocus mechanism is not all-powerful.
Page 80: Ev Compensation
e_000_kb321.book Page 79 Wednesday, August 27, 2003 12:09 PM EV Compensation This allows you to deliberately over-expose (brighten) or under-expose (darken) your picture. The exposure compensation range is -3 EV to +3 EV in 0.5 EV steps. Turn the b dial to set the desired compensation value while holding down the Exposure compensation...
Page 81 e_000_kb321.book Page 80 Wednesday, August 27, 2003 12:09 PM Exposure compensation is not available when the exposure mode is set to green program AE mode, a (metered manual exposure) mode or p (bulb) mode.
Page 82: Using The Zoom Lens
e_000_kb321.book Page 81 Wednesday, August 27, 2003 12:09 PM Using the Zoom Lens You can use the zoom lens to freely change the size of your chosen subject. Adjust it to the desired size and take the picture. Turn the zoom ring clockwise for telephoto and counterclockwise for wide angle.
Page 83: Auto Bracketing
e_000_kb321.book Page 82 Wednesday, August 27, 2003 12:09 PM Auto Bracketing You can capture three consecutive images at different exposures. The first frame is exposed with no compensation. The second frame is under- exposed and the third frame is over-exposed. You can set the negative or positive exposure compensation step to be 1/2EV (±0.5, ±1.0, ±1.5) or 1/3EV (±0.3, ±0.7, ±1.0), using “Exposure setting steps”...
Page 84 e_000_kb321.book Page 83 Wednesday, August 27, 2003 12:09 PM Turn the Av dial to set the exposure compensation step while holding down the multiple exposure / auto bracket button. Hold down the shutter release button. Three consecutive pictures will be taken, the first with no compensation, the second with negative compensation, and the third with positive compensation.
Page 85: Multiple Exposure Shooting
e_000_kb321.book Page 84 Wednesday, August 27, 2003 12:09 PM Multiple Exposure Shooting You can overlap multiple images to take one picture. For example, you can take composite pictures such as a night scene with a bright moon superimposed. Press the multiple exposure / auto bracket button until V] appears on the LCD panel.
Page 86 e_000_kb321.book Page 85 Wednesday, August 27, 2003 12:09 PM Release the finger from the multiple exposure / auto bracket button and press the shutter release button to take the first image. The first image is captured, and is displayed on the LCD monitor for instant review. Press the shutter release button to take the superimposed image.
Page 87: Using The Flash
e_000_kb321.book Page 86 Wednesday, August 27, 2003 12:09 PM Using the Flash Using the built-in flash When you use a flash in low light or backlit conditions, manually pop up the built-in flash before taking the picture. Vignetting may occur depending on the lens being used and the capture conditions.
Page 88 e_000_kb321.book Page 87 Wednesday, August 27, 2003 12:09 PM Push down on the portion in the illustration to retract the flash. Setting Flash Modes Press the flash mode button to select a flash mode. The flash mode on the LCD panel cycles as shown in the chart with each press of the button.
Page 89: Red-Eye Reduction
e_000_kb321.book Page 88 Wednesday, August 27, 2003 12:09 PM • e (program) mode Red-eye reduction Automatic flash Wireless mode automatic flash Red-eye reduction Wireless high- Flash ON flash ON speed sync mode • b (Shutter priority) mode / c (Aperture priority) mode a (Manual exposure mode) / p (Bulb) mode Red-eye reduction Flash ON...
Page 90: Flash Recommended Indicator
e_000_kb321.book Page 89 Wednesday, August 27, 2003 12:09 PM About Red-eye Phenomenon Shooting portraits with a flash in a dark environment often results in eyes looking reddish in the photograph. This phenomenon, commonly known as “Red-Eye”, is caused by the reflection of the electronic flash in the retina of the eye.
Page 91 e_000_kb321.book Page 90 Wednesday, August 27, 2003 12:09 PM Daylight-Sync Shooting In daylight conditions, the flash will eliminate the shadow when a portrait picture is taken with a person’s face cast in shadow. Daylight-sync shooting is the same as normal shooting with a flash. •...
Page 92 e_000_kb321.book Page 91 Wednesday, August 27, 2003 12:09 PM Using the flash in each capture mode Using b (Shutter priority) Mode • When taking a moving subject, you can use the flash to change the blur effect. • Any desired shutter speed 1/150 sec. or slower can be set for taking a flash photograph.
Page 93 e_000_kb321.book Page 92 Wednesday, August 27, 2003 12:09 PM Using b (Shutter priority) Mode 1 Set the exposure mode to b (shutter priority) mode. 2 Use the Tv dial to set the desired shutter speed. 3 Press the flash pop-up button to activate the built-in flash. 4 Take the picture.
Page 94: Using An External Flash
e_000_kb321.book Page 93 Wednesday, August 27, 2003 12:09 PM Using an External Flash Using the optional external flash AF360FGZ enables a variety of flash modes, such as P-TTL automatic flash mode, TTL auto-flash mode, high- speed flash sync mode, and wireless mode. Available functions differ by the external flash being used.
Page 95 e_000_kb321.book Page 94 Wednesday, August 27, 2003 12:09 PM About the LCD panel display for AF360FGZ • The AF360FGZ will automatically convert the AF 360 field angle differential between 35mm and the Lens used w format resulting from the focal length of display the lens you are using.
Page 96 e_000_kb321.book Page 95 Wednesday, August 27, 2003 12:09 PM Using High-Speed Flash Sync Mode With the AF360FGZ, you can discharge the flash to take a picture at a shutter speed faster than 1/150 second. High-speed flash sync can be used with the flash attached to the camera, or as a wireless. Using High-speed flash sync on the camera 1 Remove the hot shoe cover and attach the flash unit.
Page 97 e_000_kb321.book Page 96 Wednesday, August 27, 2003 12:09 PM 4 Press the flash pop-up button to enable using the built-in flash. 5 Press the flash mode button until is displayed. • The b will light in the viewfinder when the flash is ready (fully charged). •...
Page 98 e_000_kb321.book Page 97 Wednesday, August 27, 2003 12:09 PM Red-eye Reduction As with the built-in flash, red-eye reduction is available using an external flash. This may not be available on some flashes and it may have any restrictions for usage conditions may be required. See the chart given on p.93. Trailing-Shutter-Curtain Sync Flash When using the built-in flash with an external flash that has a trailing- shutter-curtain sync flash function, the external flash is set to the trailing-...
Page 99 “Hot Shoe Grip”, as a malfunction may occur. • The fastest flash synchronization speed is 1/60 second in the Contrast- Control-Synch mode. • Combining with flashes from other manufacturers may cause equipment breakdown. We recommend using the PENTAX dedicated automatic flashes.
Page 100: Playback Functions
e_000_kb321.book Page 99 Wednesday, August 27, 2003 12:09 PM Playback Functions Zoom Playback ............100 Nine-Image Display ..........101 Deleting Images...........102 Printing Service Settings (DPOF) ......106...
Page 101: Zoom Playback
e_000_kb321.book Page 100 Wednesday, August 27, 2003 12:09 PM Zoom Playback You can play back images magnified up to 12 times. Press the Playback button and use the four-way controller (45) to select an image. Turn the Nine-image display / Zoom display dial clockwise.
Page 102: Nine-Image Display
e_000_kb321.book Page 101 Wednesday, August 27, 2003 12:09 PM Nine-Image Display You can display nine images on the LCD monitor at the same time. Press the Playback button and use the four-way controller (45) to select an image. Turn the Nine-image display / Zoom display dial counterclockwise.
Page 103: Deleting Images
e_000_kb321.book Page 102 Wednesday, August 27, 2003 12:09 PM Deleting Images Deleting a Single Image You can delete one image at a time. Press the Playback button and use the four-way controller (45) to select the image to delete. Press the Delete button to display the Delete screen.
Page 104: Deleting All Images
e_000_kb321.book Page 103 Wednesday, August 27, 2003 12:09 PM Deleting All Images You can erase all saved images at once. • Once deleted, images cannot be restored. • Protected images cannot be deleted. Press the Playback button. Press the Delete button to display the Delete screen.
Page 105: Protecting Images From Deletion (Protect)
e_000_kb321.book Page 104 Wednesday, August 27, 2003 12:09 PM Protecting Images from Deletion (Protect) You can protect images from being accidentally erased. Press the Playback button and use the four-way controller (45) to select the image to protect. Press the Protect button (Z) to display the Protect screen.
Page 106: Protecting All Images
e_000_kb321.book Page 105 Wednesday, August 27, 2003 12:09 PM Protecting All Images Press the Playback button. Press the Protect button (Z) to display the protect screen. Select [All] with the four-way Protect One All controller (45). Protect all images Protect Cancel all images Press the four-way controller (2) to select [Protect] and press OK.
Page 107: Printing Service Settings (Dpof)
e_000_kb321.book Page 106 Wednesday, August 27, 2003 12:09 PM Printing Service Settings (DPOF) You can order conventional photograph prints by taking the CF card with recorded images to a store for a printing service. DPOF (Digital Print Order Format) settings allow you to specify the number of copies or to imprint the date.
Page 108 e_000_kb321.book Page 107 Wednesday, August 27, 2003 12:09 PM Press the four-way controller DPOF ONE ALL (45) to specify the number of copies and press the four-way Copies controller (3). Date The cursor will move to “Date”. 100-0820 Press the four-way controller (45) to select O (on) or P (off) for the date.
Page 109: Settings For All Images
e_000_kb321.book Page 108 Wednesday, August 27, 2003 12:09 PM Settings for All Images You can set printing service settings for all images. Press the Playback button. Press the DPOF button to display the DPOF screen. Press the four-way controller DPOF ONE ALL (45) to select [All] and press DPOF setting for all images.
Page 110 e_000_kb321.book Page 109 Wednesday, August 27, 2003 12:09 PM Press the OK button. Prints can be made according to the settings. • Settings for all images will cancel settings for single images. • The number of copies applies to all images when you specify the number of copies for all images.
Page 111 e_000_kb321.book Page 110 Wednesday, August 27, 2003 12:09 PM MEMO...
Page 112: Settings
e_000_kb321.book Page 111 Wednesday, August 27, 2003 12:09 PM Settings Setting Menu List ..........112 How to Operate the Settings Menu....113 Camera Settings ..........114 Custom Function Chart ........127 List of City Names ..........130...
Page 113: Setting Menu List
e_000_kb321.book Page 112 Wednesday, August 27, 2003 12:09 PM Setting Menu List Press the Menu button to display the settings menu on the LCD screen. Use the settings menu to set the basic functions of your camera. Item Description Default Setting Pages Format Formats a CF card...
Page 114: How To Operate The Settings Menu
e_000_kb321.book Page 113 Wednesday, August 27, 2003 12:09 PM How to Operate the Settings Menu How to Display the Menu Screen Turn the camera on and press the MENU button to display the menus on the LCD monitor. The previously used menu screen is displayed.
Page 115: Camera Settings
e_000_kb321.book Page 114 Wednesday, August 27, 2003 12:09 PM Camera Settings Formatting a CF card Formatting will delete all the data on the CF card. • Do not open the CF card cover while formatting a CF card. The card may be damaged beyond use. •...
Page 116: Setting The Custom Functions
e_000_kb321.book Page 115 Wednesday, August 27, 2003 12:09 PM Setting the Custom Functions You can set camera functions and settings to match your preferences. Three different settings can be saved separately. See page 127 for detailed settings. Select [Custom Function] on the Main menu. Press the four-way controller (5) to display the Custom Function screen.
Page 117 e_000_kb321.book Page 116 Wednesday, August 27, 2003 12:09 PM Calling up saved functions Select [Custom Function] on the Main menu. Press the four-way controller (5) to display the Custom Functions screen. Press the four-way controller (45) Custom Function to select the number for the custom Program Line Normal function setting to call up.
Page 118: Setting The Color Saturation
e_000_kb321.book Page 117 Wednesday, August 27, 2003 12:09 PM Setting the Color Saturation This sets the brightness of colors in the picture. Select [Saturation] on the Main menu. Press the four-way controller (45) Main Menu to select from x (Normal), Format z (High), or y (Low).
Page 119: Setting The Contrast
e_000_kb321.book Page 118 Wednesday, August 27, 2003 12:09 PM Setting the Contrast You can set the image contrast level. Select [Contrast] on the Main menu. Press the four-way controller (45) Main Menu to select from x (Normal), Format z (High), or y (Low). Custom Function Saturation Sharpness...
Page 120: Auto Power Off
e_000_kb321.book Page 119 Wednesday, August 27, 2003 12:09 PM Auto Power Off You can set the camera to turn off automatically after a certain length of unused. Select [Auto Power Off] on the Main menu. Press the four-way controller (45) Main Menu to change the time for turning the Format...
Page 121: Changing The Date Style And Date / Time
e_000_kb321.book Page 120 Wednesday, August 27, 2003 12:09 PM Changing the Date Style and Date / Time You can change the initial date and time settings. You can also set the date display style. Choose from y/m/d, m/d/y, and d/m/y. Select [Date Adjust] on the Main menu.
Page 122 e_000_kb321.book Page 121 Wednesday, August 27, 2003 12:09 PM Press the four-way controller (45) to select the [City], and press the four-way controller (3). See The list on p.130 for available cities and their codes. Press the four-way controller (45) to select DST O (on) or P (off), and press the four-way controller (3).
Page 123: Setting The Display Language
e_000_kb321.book Page 122 Wednesday, August 27, 2003 12:09 PM Setting the Display Language You can change the language of the menus and error messages. Select [Language / ] on the Main menu. Press the four-way controller (5) Main Menu to display the [Language / Beep settings screen.
Page 124: Selecting The Video Output Format
e_000_kb321.book Page 123 Wednesday, August 27, 2003 12:09 PM Selecting the Video Output Format You can select the output format (NTSC or PAL) for capturing or playing back images on a TV monitor. Select [Video Out] on the Main menu. Press the four-way controller (45) Main Menu to select [NTSC] or [PAL], to match...
Page 125: Resetting The File Number
e_000_kb321.book Page 124 Wednesday, August 27, 2003 12:09 PM Press the OK button twice. The camera is ready for capture or playback. Resetting the File Number You can set the File Number used for the images when inserting a new CF card.
Page 126: Setting The Slideshow
e_000_kb321.book Page 125 Wednesday, August 27, 2003 12:09 PM Setting the Slideshow You can play back all recorded images on your CF card successively. To start continuous playback, use the menu screen displayed on the LCD monitor. Press the Playback button and use the four-way controller (45) to select the image to start the slideshow.
Page 127: Resetting To Default Settings
e_000_kb321.book Page 126 Wednesday, August 27, 2003 12:09 PM Press the four-way controller (2) Sensor Cleaning to select [Mirror Up]. Mirror Up To Clean CCD Turn the power OFF to end Mirror Up Cancel MENU Exit Press the OK button. The mirror is locked in the up position.
Page 128: Custom Function Chart
e_000_kb321.book Page 127 Wednesday, August 27, 2003 12:09 PM Custom Function Chart This chart shows the custom functions that can be set. Item Setting items Explanation Normal (Default Setting) Sets Program line to Normal program. Hi-Speed Sets Program line to High-speed priority program. Program Line Depth Sets Program line to Depth-of-field priority program.
Page 129 e_000_kb321.book Page 128 Wednesday, August 27, 2003 12:09 PM Item Setting items Explanation Disables shutter release when lens aperture is set at Off (Default Setting) F step other other than A. than A Enables shutter release even when lens aperture is set at other than A.
Page 130 e_000_kb321.book Page 129 Wednesday, August 27, 2003 12:09 PM Notes on setting “F step other than A” When the “F step other than A” in the custom functions is set to “On”, the shutter can be released even if the aperture ring of an attached lens is not set to the A position.
Page 131: List Of City Names
e_000_kb321.book Page 130 Wednesday, August 27, 2003 12:09 PM List of City Names Refer to following list of city and code names for setting the world time Region Country City Code Region Country City Code EUROPE SPAIN Madrid ASIA PHILIPPINES Manila UNITED KINGDOM London TAIWAN...
Page 132: Connecting
e_000_kb321.book Page 131 Wednesday, August 27, 2003 12:09 PM Connecting Connecting to a TV..........132 Connecting to a PC ..........133...
Page 133: Connecting To A Tv
e_000_kb321.book Page 132 Wednesday, August 27, 2003 12:09 PM Connecting to a TV By using the video cable (I-VC2), you can play back images using a TV or other equipment with a video IN jack as your monitor. Make sure that both the TV and the camera are turned off before connecting the cable.
Page 134: Connecting To A Pc
With your camera and PC connected with a USB cable (I-USB2), you can transfer images to your PC, and view images or develop RAW data using the PENTAX Photo Browser or PENTAX Photo Laboratory. See manuals for installing PENTAX Photo Browser and PENTAX Photo Laboratory and for viewing images and RAW data development.
Page 135 e_000_kb321.book Page 134 Wednesday, August 27, 2003 12:09 PM MEMO...
Page 136: Appendix
e_000_kb321.book Page 135 Wednesday, August 27, 2003 12:09 PM Appendix More Details about Capture Functions .....136 Optional Accessories..........146 Cleaning the CCD ..........149 Precautions Regarding Memory Cards .....151 Error Messages ...........152 Troubleshooting ..........153 Main Specifications..........154 Glossary ...............160 WARRANTY POLICY ...........162...
Page 137: More Details About Capture Functions
e_000_kb321.book Page 136 Wednesday, August 27, 2003 12:09 PM More Details about Capture Functions Effect of Aperture and Shutter Speed Correct exposure of the subject is established by a combination of shutter speed and aperture setting. There are many correct combinations of shutter speed and aperture for a particular subject.
Page 138 e_000_kb321.book Page 137 Wednesday, August 27, 2003 12:09 PM Effect of aperture The aperture increases or reduces the light beam (thickness) which passes through the lens, controlling how much light strikes the CCD. • Widening the beam by opening the aperture Objects closer and farther than the focused subject will be more out of focus.
Page 139: How To Check Depth Of Field
e_000_kb321.book Page 138 Wednesday, August 27, 2003 12:09 PM How to check depth of field When you focus on a portion of the subject, there is a range in which object closer and farther will also be in focus. This focused range is called the depth of field.
Page 140: Calculating Flash Distance From The Aperture Used (Using Built-In Flash)
e_000_kb321.book Page 139 Wednesday, August 27, 2003 12:09 PM Calculating flash distance from the aperture used (using built-in flash) Maximum flash distance= Guide Number ÷ Selected aperture Minimum flash distance= Maximum flash distance ÷ 5* (Note) The flash cannot be used when the distance is less than 0.7m. When the flash is used within 0.7m, it causes vignetting in the picture corners, light is distributed unevenly and the picture may be over-exposed.
Page 141: F, Fa And Fa J Lenses Compatibility With The Built-In Flash
e_000_kb321.book Page 140 Wednesday, August 27, 2003 12:09 PM F, FA and FA J Lenses Compatibility with the Built-in Flash = compatible, = incompatible because of vignetting Both are evaluated without a hood. Lens Name Compatible Vignetting may occur if focal length is less F Fisheye Zoom 17~28mm f/3.5~4.5 than 20mm.
Page 142 e_000_kb321.book Page 141 Wednesday, August 27, 2003 12:09 PM Lens Name Compatible FA20mm f/2.8 24mm f/2AL (IF) FA28mm f/2.8AL FA31mm f/1.8AL Limited FA35mm f/2AL FA43mm f/1.9 Limited FA50mm f/1.4 FA50mm f/1.7 FA77mm f/1.8 Limited 85mm f/1.4 (IF) FA135mm f/2.8 (IF) 200mm f/2.8ED (IF) 300mm f/2.8ED (IF) 300mm f/4.5ED (IF)
Page 143: Setting The White Balance Manually
e_000_kb321.book Page 142 Wednesday, August 27, 2003 12:09 PM Setting the White Balance Manually You can set the white balance with the camera pointed toward a white object under the lighting to be used for taking pictures. The camera can store delicate shades that cannot be precisely adjusted with the white balance provided in the camera (p.55).
Page 144: Shutter Release Button
e_000_kb321.book Page 143 Wednesday, August 27, 2003 12:09 PM Hold down the manual white balance button and press the shutter release button. Set correctly: [OK] appears on the LCD monitor. Incorrectly set: [NG] appears on the LCD monitor. • No image is recorded when the shutter release button is pressed to register the white balance.
Page 145: Functions Available With Various Lens Combinations
e_000_kb321.book Page 144 Wednesday, August 27, 2003 12:09 PM FUNCTIONS AVAILABLE WITH VARIOUS LENS COMBINATIONS Lenses that can be used with this camera Only FA J lenses and FA/F/A lenses having an A position on the aperture ring can be used with this camera. Other lenses and FA/F/A lenses with aperture ring set to other than A position cannot be used because the shutter will not release.
Page 146 e_000_kb321.book Page 145 Wednesday, August 27, 2003 12:09 PM Lens names and mount names FA single focal length lenses (non-zoom lenses) and FA J and F lenses use the KAF mount. Of the FA zoom lenses, power zoom enabled lenses use the KAF2 mount.
Page 147: Optional Accessories
e_000_kb321.book Page 146 Wednesday, August 27, 2003 12:09 PM Optional Accessories A number of dedicated accessories are available for this camera. Please contact our service center for details regarding accessories. Battery grip D-BG1 Usability is enhanced with the shutter release and AE lock buttons and Tv, Av dials for vertical positioning of the camera.
Page 148: Flash Accessories
e_000_kb321.book Page 147 Wednesday, August 27, 2003 12:09 PM Flash Accessories Auto Flash AF360FGZ An auto flash unit with maximum guide number 36 (ISO 100/m). Its features include AF spot beam, slave-sync flash, multiple-flash, high- speed sync, wireless flash, contrast-control-sync flash, and leading / trailing curtain-sync modes.
Page 149: For Viewfinder
e_000_kb321.book Page 148 Wednesday, August 27, 2003 12:09 PM For Viewfinder Magnifier FB A viewfinder accessory for magnifying the central area of the viewfinder. Ref-converter A An accessory that changes the viewfinder viewing angle at 90 intervals. The viewfinder magnification can be switched between 1× and 2×. Diopter correction lens adapter M This accessory adjusts the diopter.
Page 150: Cleaning The Ccd
This indicates that the CCD must be cleaned. The CCD is a precision part. Please contact PENTAX service center. Turn the camera on and remove the lens. Set [Sensor Cleaning] on the Main menu to ON.
Page 151 e_000_kb321.book Page 150 Wednesday, August 27, 2003 12:09 PM • Do not use a spray type blower. • Do not clean the CCD when the exposure mode is set to p (Bulb) mode. • Always cap the lens mount area to prevent dirt and dust from accumulating on the CCD when no lens is on the camera.
Page 152: Precautions Regarding Memory Cards
• The data on the CF card may be erased in the following circumstances. Pentax does not accept any liability for data that is erased. • When the CF card is mishandled by the user.
Page 153: Error Messages
e_000_kb321.book Page 152 Wednesday, August 27, 2003 12:09 PM Error Messages Error Messages Description Memory full The CF card memory is full, and no more images can be saved. Insert a new CF card or delete unwanted images. (p.34, 102) You may be able to save the image by changing the quality level or recorded pixels.
Page 154: Troubleshooting
e_000_kb321.book Page 153 Wednesday, August 27, 2003 12:09 PM Troubleshooting We recommend to check the following items before contacting a service center. Symptoms Causes Remedies The shutter does The lens aperture ring setting is Set the lens aperture ring to the not release.
Page 155: Main Specifications
e_000_kb321.book Page 154 Wednesday, August 27, 2003 12:09 PM Main Specifications TTL autofocus, auto-exposure SLR digital-still camera with Type built-in retractable P-TTL flash Effective Pixels 6.10 megapixels Total pixels 6.31 megapixels (3110 × 2030), interline / Sensor interlace scan CCD with a primary color filter L (3008 ×...
Page 156 (step less), (2) Manual 1/4000-30 sec. (1/2 EV step or 1/3 EV step) (3) Bulb Shutter lock by setting Main switch in OFF position. Pentax KAF bayonet mount (K-mount with AF coupler, lens Lens Mount information contacts) Compatible Lens...
Page 157 Daylight-sync flash, Slow-speed-sync flash, Contrast-control-sync flash (ISO range = PTTL: 200-3200 / TTL: 200-800). Hot shoe with X-contact, which couples with Pentax dedicated auto flashes, ISO range = PTTL: 200-3200 / Flash sync TTL: 200-800, Automatic flash, Red-eye reduction flash function, High-speed-sync, wireless-sync with PENTAX dedicated flash.
Page 158: Specification For Remote Control (Optional)
e_000_kb321.book Page 157 Wednesday, August 27, 2003 12:09 PM Specification for Remote Control (Optional) The operating distance of the remote control is approx. 5 m Remote Control from the front of the camera. Power source One 3V lithium battery (CR1620) Dimension 22mm(W) ×...
Page 159: Program Lines
e_000_kb321.book Page 158 Wednesday, August 27, 2003 12:09 PM Program lines Normal Program (FA J 18-35mm f4-5.6) [EV] [sec] 1/8000 1/30 1/125 1/500 1/2000 [ISO200] High-speed priority program (FA J 18-35mm f4-5.6) [EV] [sec] 1/8000 1/30 1/125 1/500 1/2000 [ISO200]...
Page 160 e_000_kb321.book Page 159 Wednesday, August 27, 2003 12:09 PM Depth-of-field priority program (FA J 18-35mm f4-5.6) [EV] [sec] 1/8000 1/30 1/125 1/500 1/2000 [ISO200] MTF priority program (FA J 18-35mm f4-5.6) [EV] [sec] 1/8000 1/30 1/125 1/500 1/2000 [ISO200]...
Page 161: Glossary
e_000_kb321.book Page 160 Wednesday, August 27, 2003 12:09 PM Glossary CCD (Charge Coupled Device) Photography element which converts the light entering through the lens into electric signals. DCF (design rule for camera file system) An image file standard established by the Japan Electronics and Information Technology Industries Association (JEITA).
Page 162 e_000_kb321.book Page 161 Wednesday, August 27, 2003 12:09 PM TIFF A format for saving image data in a non-compressed format. Image data using this format has a large file size and is not suited for attaching to e- mail, but is suited for processing on your PC. Color Temperature This numerically expresses the color of the light source illuminating the subject.
Page 163: Warranty Policy
Shipping charges are to be borne by the owner. If your PENTAX was purchased outside of the country where you wish to have it serviced during the warranty period, regular handling and servicing fees may be charged by the manufacturer’s representatives in that...
Page 164 Therefore, we recommend that you review the warranty card supplied with your product at the time of purchase, or contact the PENTAX distributor in your country for more information and to receive a copy of the...
Page 165 e_000_kb321.book Page 164 Wednesday, August 27, 2003 12:09 PM For customers in USA STATEMENT OF FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 166: Declaration Of Conformity
The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109. Product Name: PENTAX Digital Still Camera Model Number: w Contact person: Customer Service Manager Date and Place: Aug., 2003, Colorado...
Page 167 Page 2 Wednesday, August 27, 2003 12:36 PM MEMO Thank you for buying the PENTAX w Digital Camera. Please read this manual before using the camera in order to get the most out of all the features and functions. Keep this manual safe, as it can be a valuable tool in helping you to understand all the camera's capabilities.

Pentax *istD Operating Manual

Before Using Your Camera

Getting Started

Basic Operation

Shooting Functions

Playback Functions

Settings

Connecting

Appendix

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pentax *istD

Summary of Contents for Pentax *istD

Table of Contents
