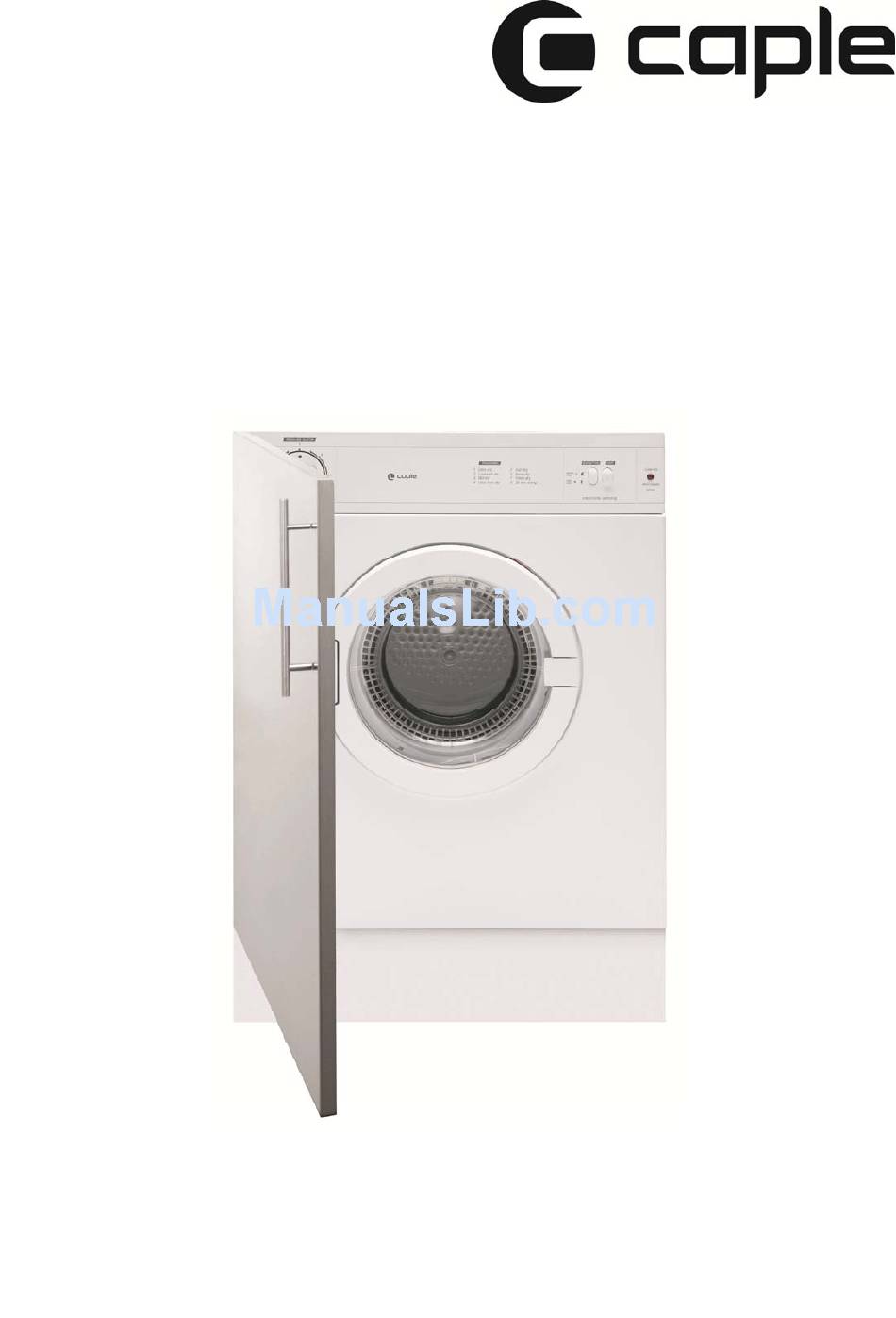

- Page 1 Instruction manual for integrated tumble dryer Model code: TDI110 Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
- Page 2 CONTENTS Important User Information Installation The Filter Operating Instructions Drying your Laundry Door & Decor Door Reversal Technical Data & Problem Guide...
- Page 3 IMPORTANT USER INFORMATION These notes are provided in the interest of safety. You must read them carefully before installing or using this appliance. − Children should not be allowed to tamper with the controls and should be supervised to ensure they do not play with the appliance. −...
- Page 4 INSTALLATION The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations. Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram.
-
Page 5: The Filter
ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is carried out by a qualified person complying with the IEE 17 addition of the electrical regulations. IMPORTANT Please remember that the tumble dryer must be capable of being switched off, (disconnected from the supply), when fitted in position THE FILTER The filter is found, as seen from the diagram, by opening the door and must always be in... - Page 6 CONTROL PANEL GUIDE PROGRAMME SELECTOR: Choose the final dryness of the load by selecting the desired dryness setting (see the programme chart). The dryer will stop automatically when the chosen dryness is achieved. Note: the use of an iron dry programme will use 30% less energy than a cupboard dry programme.
-
Page 7: Drying Your Laundry
Programs 1−7 can be operated on either full heat or half heat setting and have a 12 minute cool−down period at the end of the cycle Program 8 operates without the heater (regardless of the heat switch setting), circulating air through the dryer at the ambient temperature. - Page 8 There is an automatic 12−minutes cool down period at the end of every cycle, during which the heater is switched off. This is to help minimize creasing. After each of the programmes, the machine goes into anti−crease. This feature rotates the drum for briefly every 6 minutes until the dryer is stopped or the door is opened.
-
Page 9: Door Reversal
DOOR REVERSAL APPLIANCE DOOR The door on the dryer can be positioned either with the left or right hand hanging. Please follow illustrations below to change the door position. THE DECOR DOOR The hinges can be fastened through the pre−drilled holes on either the left or right hand with the door stops being fitted on the other side. - Page 10 DON’TS. Do not ˘ Overload the dryer. Do not ˘ Dry articles singly as they tend to roll up and so increase drying time. Do not ˘ Dry woolen or wool mixture articles unless the article is labeled as suitable. This should avoid shrinkage.
- Page 12 www.caple.co.uk...
