Summary of Contents for Caple TDI111

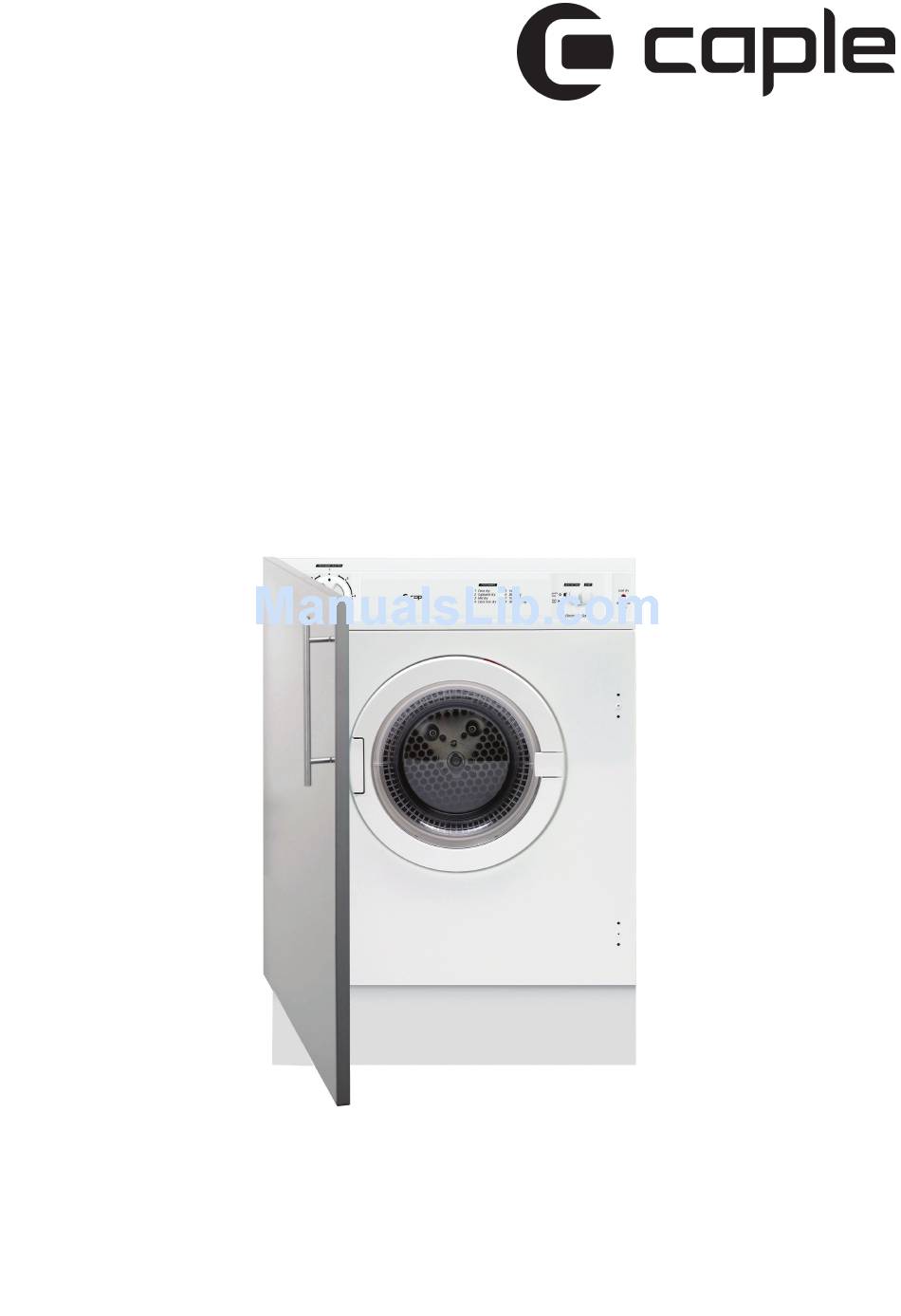

- Page 1 Instruction manual for integrated tumble dryer Model code: TDI111 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 2 Contents Important user information Installation The filter Operating instructions Drying your laundry Door and decor door reversal Technical data and troubleshooting guide...
- Page 3 IMPORTANT USER INFORMATION These notes are provided in the interest of safety. You must read them before installing or using the appliance. –This tumble dryer is intended for NORMAL DOMESTIC USE ONLY. SECTION 1: BEFORE USE * Safety warnings These notes are provided in the interest of safety. You must read them before installing or using the appliance.
- Page 4 –Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected. –A carpet must not obstruct the ventilation openings in the base of the dryer. –Do not stack the tumble dryer on top of other appliances without the correct stacking kit.
- Page 5 -– The special mains cable and plug assembly must only be replaced with a genuine part by the manufacturer or his service agents in order to avoid a hazard. - It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle.
- Page 6 DO NOT attempt to dry dripping wet articles. DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury.
- Page 7 - Keep the packing materials from your machine away from children to avoid hazards. - Keep pets away from your machine. - Your machine is designed for use in a domestic environment. The warranty will be invalid if you use it for commercial purposes. - It could be possible for a child or pet to gain access to the tumble dryer through the porthole door.
- Page 8 Installation The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations. Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram.
- Page 9 6 damp dry heat anti-crease 7 timed dry active 8 30 min airing TDI111 electronic sensing read the instructions made in UK PROGRAMME SELECTOR: Choose the final dryness of the load by selecting the desired dryness setting (see the programme chart).
- Page 10 4. ANTI−CREASE ACTIVE When lit constantly, the neon indicates that the drying NEON cycle is completed and clothes can be removed. To reduce creasing of clothes, anti−crease will automatically start once the drying cycle is complete. PROGRAMME DESCRIPTIONS 1. extra dry 2.
- Page 11 We suggest that a fabric conditioner be used to reduce static electricity. Delicate articles e.g. tights should be placed inside a pillowcase. It is better to dry small and large articles together. Do not dry unwashed items in the tumble dryer. Remove all objects from pockets such as lighters and matches.
- Page 12 If the cut−out continues to operate after checking the above points, you should contact Caple Service. Your dryer is designed to operate in a room temperature range of 5°C to °...
- Page 13 The furniture door The hinges can be fastened through the pre−drilled holes on either the left or right hand with the door stops being fitted on the other side. Technical data Overall dimensions : height 86.5 - 89cm width 59.5cm depth 53cm Maximum dry weight of cotton, linen 7.0kg synthetics 7.0kg.
- Page 14 This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a Europen wide validity of return and Recycling on Waste Electrical and Electronic Equipment.
- Page 15 101mins 135mins 76mins dry½ Condensing efficiency class dry½ Sound power level 62dBA Built in/not built in Model TDI111 is intended on being built in. All other models are not intended on being built in.
- Page 16 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 4213 194 15901 V2 - 101117...
