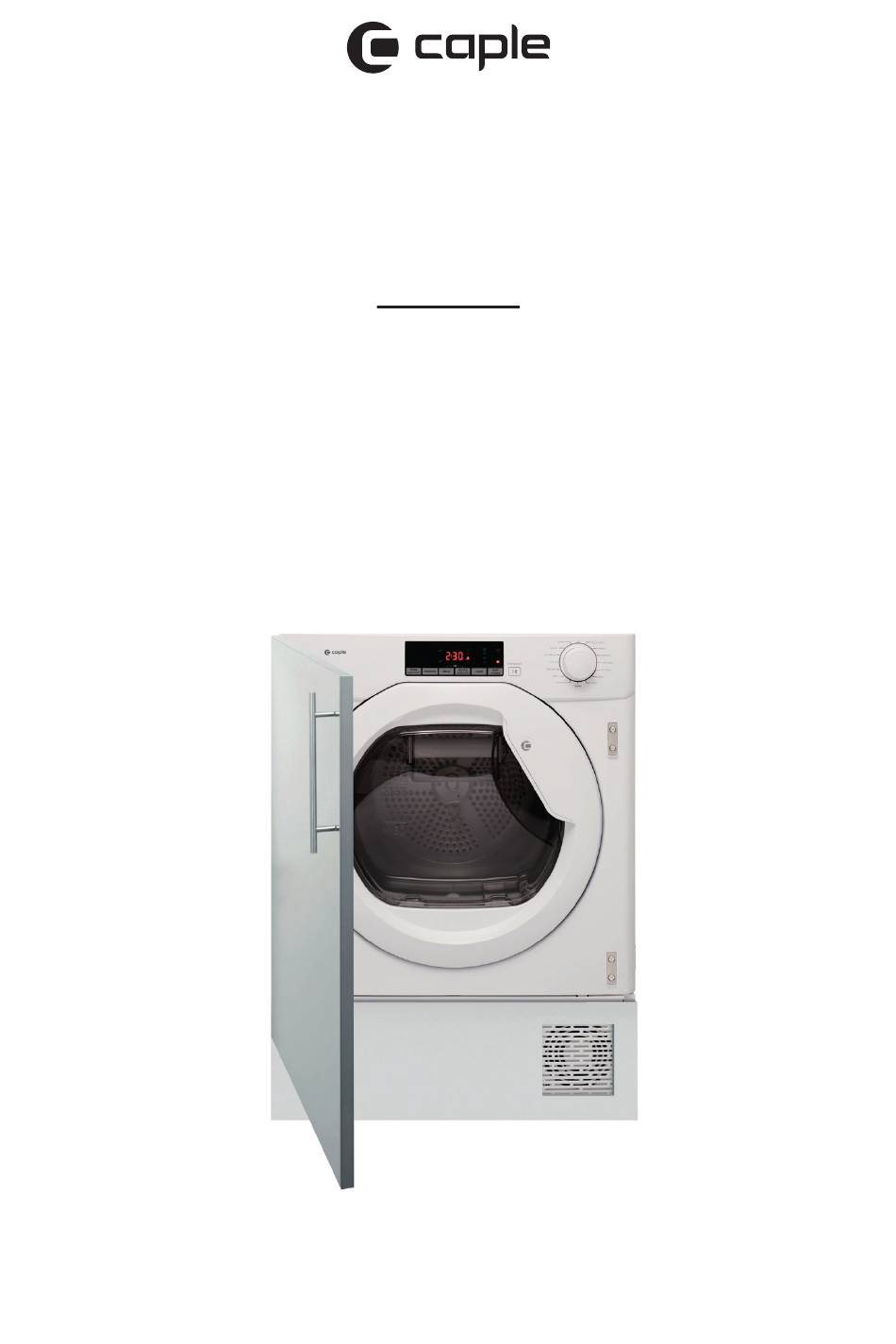

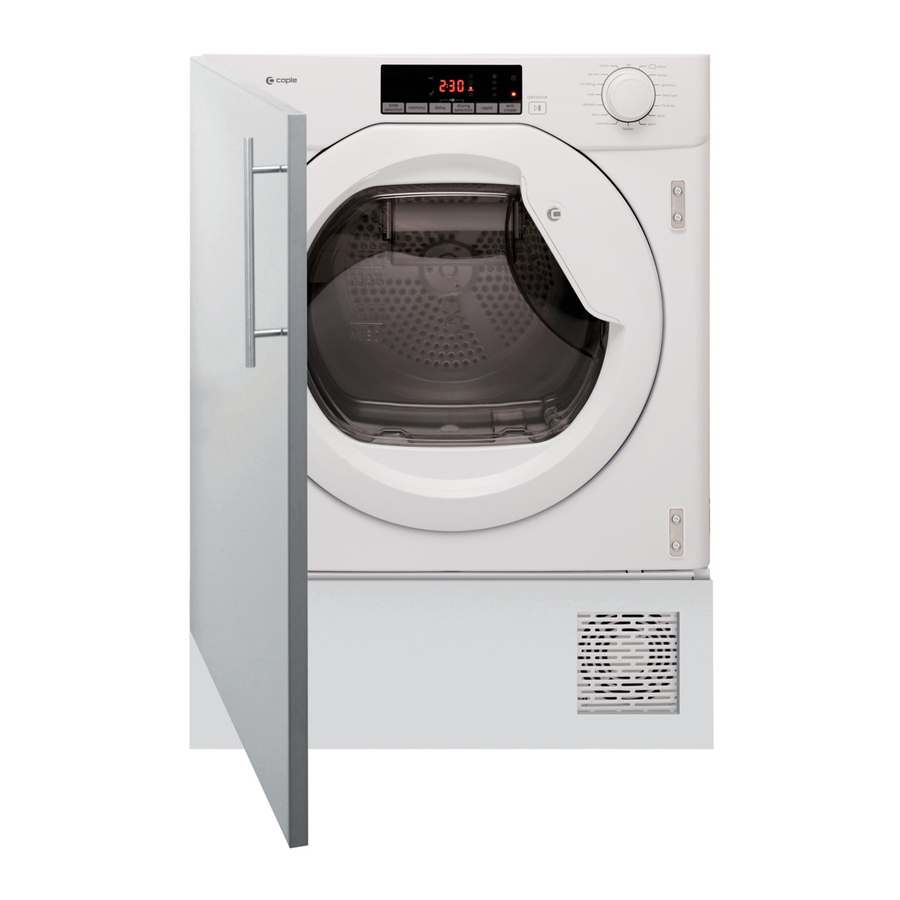

- Page 1 I n t e g r a t e d Tu m b l e D r y e r I n s t r u c t i o n M a n u a l TDI4 0 00 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Warnings Environmental Protection Warranty Installation Operation Quick User Guide Control Panel Drying Programmes Cleaning and Maintenance Troubleshooting Technical Data Caple Contact Details Instruction manual TDI4000 Please keep this instruction manual for future reference... -
Page 3: Warnings
(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 4 - It is recommended that the dryer be serviced annually by a person competent to service tumble dryers. - It is dangerous to alter or modify the product in any way other than fitting authorised accessories. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 5 Failure to do this could result in damage to the compressor. - The dryer must be installed by a Registered Installer. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 6 The inlet and outlet air should be kept clear of obstruction. - DO NOT block the air inlets at the front and back of your dryer. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 7 - DO NOT dry unwashed items in the tumble dryer. - DO NOT attempt to dry dripping wet articles. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 8 - The final part of the tumble dyer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 9 - Do not lean on the door when loading the machine or use the door to lift or move the machine. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 10 - The special mains cable and plug assembly must only be replaced with a genuine part available from the manufacturer or service agent in order to avoid a hazard. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 11 - The appliance contains R290, an eco-sustainable refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance. - DO NOT damage the refrigerating circuit. Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 12: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 13: Installation
= 50mm > 50mm Option 1 Option 2 NOTE: The distance does not consider the thickness of the kick plate of the kitchen. Instruction manual TDI4000 Please keep this instruction manual for future reference > 50mm... - Page 14 (7). » Place the plastic support (6) under the plate and fix it in position with screw (7). Instruction manual TDI4000 Please keep this instruction manual for future reference Instruction manual TDI4000 Instruction manual TDI4000...
- Page 15 This is only possible with some types of kick plate (e.g. wood or plastic). We suggest to check with the kitchen suppliers. the kitchen suppliers. Instruction manual TDI4000 Please keep this instruction manual for future reference Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 16 Firstly, slide the dryer into an opening of the size indicated on page 13. NOTE: As soon as the hinges are fixed on the furniture is not possible to slide the dryer in and out. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 17 L metal brackets (K) to the furniture sides, to avoid possible tilting. A furniture plinth may now be run across the front of the dryer, but it’s height will be dictated by the front kick plate. Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 18: Operation
Always: Check that the filter is clean before every drying cycle. Never: Put dripping wet items into the tumble dryer, this may damage the appliance. Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 19 » By type of fabric cottons / linen: Towels, cotton jersey, bed and table linen. » Synthetics: Blouses, shirts, overalls etc. made of polyester or polyamid, as well as cotton/ synthetic mixes. Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 20: Quick User Guide
This will continue until the machine is switched OFF or the door is opened. 8. When the programme is complete the LED indicator will light. Do not open the door during the automatic programmess in order to obtain a good drying result. Instruction manual TDI4000 Please keep this instruction manual for future reference... -
Page 21: Control Panel
It is activated every 10 minutes, up to 6 hours after the end of the drying cycle. To stop the movements, set the knob to OFF. This is useful when it’s not possible to immediately remove the laundry. Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 22 Recall: After the selection of the cycle, push the button “memory” for recall of the stored options (not the cycle). Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 23 Filter Cleaning: Lights when the cleaning of the filters is necessary (the door and the lower filter). Cooling: Lights up when the cycle is in the final cooling phase. Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 24: Drying Programmes
* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature. Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 25 A N T I - A L L E R G Y • • • • P R E I R O N • • R E F R E S H • • Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 26: Cleaning And Maintenance
Clean the filters before every cycle. Pay attention that overloading or a bulk load can lead to the door opening. In this case, reduce the load capacity to continue the drying cycle. Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 27 Pull on handle to open the door. To restart the dryer, close the door and press start/pause button WARNING: When the tumble dryer is in use the drum and door may be VERY HOT. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 28 If the laundry is not drying check that the filter is not clogged. Clogged filters could increase the drying time and cause damages and expensive cleaning operation. If you clean filters under water, remember to dry them. Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 29 W A R N I N G : Clean the filters before every cycle. Overloading or a bulk load can lead to door opening. In this case reduce the load capacity to continue the drying cycle. Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 30: Troubleshooting
T H E W AT E R TA N K I N D I C ATO R I S O N : Does the water container need emptying? If the problem persists or more help is required, please contact our Caple service team on 0117 938 7420 or via email service@caple.co.uk... -
Page 31: Technical Data
I N F O R M AT I O N F O R T E S T L A B O R ATO RY EN 61121 Programme To Use. Standard dry cotton Iron dry cotton Whites Easy-Care Textile Synthetics Instruction manual TDI4000 Please keep this instruction manual for future reference... - Page 32 N OT E S : Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 33 N OT E S : Instruction manual TDI4000 Please keep this instruction manual for future reference...
-
Page 34: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
