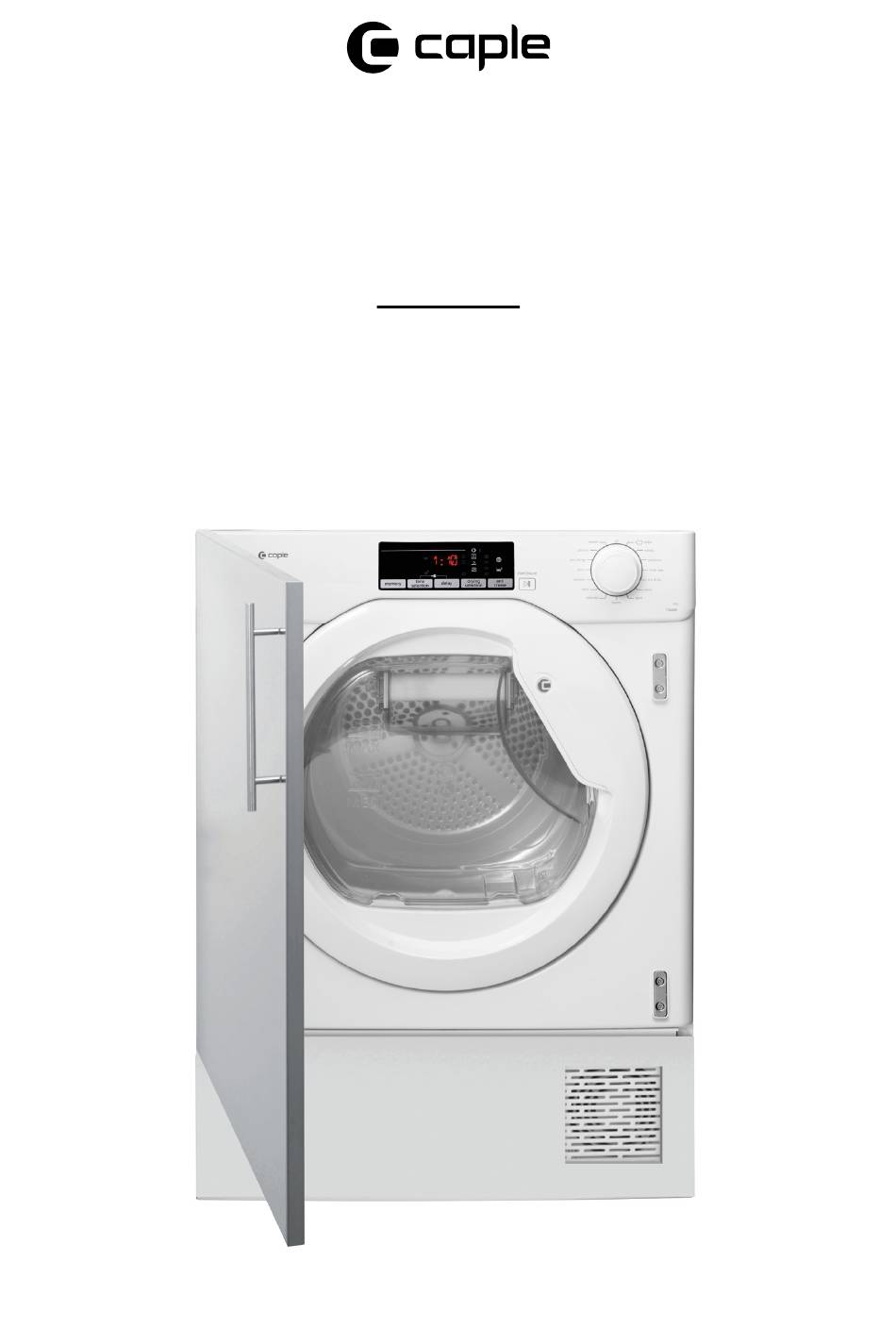

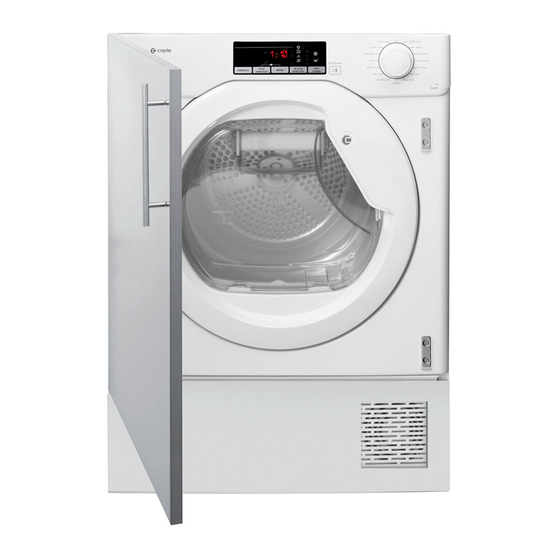

- Page 1 I n t e g r a t e d Tu m b l e D r y e r I n s t r u c t i o n M a n u a l TDI4 0 01 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Warnings Environmental Protection Warranty Installation Operation Quick User Guide Control Panel Drying Programmes Cleaning and Maintenance Troubleshooting Caple Contact Details Instruction manual TDI4001 Please keep this instruction manual for future reference... -
Page 3: Warnings
- Children shall not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 4 - It is important to clean the lint filter after each drying cycle or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 5 Misuse of a tumble dryer may create a fire hazard. CAUTION Injury or property damage risk RI5505 Fridge Freezer Instruction Manual.indd 7 RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:30 05/02/2020 14:30 IMPORTANT Operating the system correctly Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 6 5-35°C. Please note that operating in cold conditions (between +2 and +5°C) might cause some water condensation and water drops on floor. - Never install the dryer near curtains. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 7 - Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 8 - Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with glass fibres. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 9 RI5505 Fridge Freezer Instruction Manual.indd 7 RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:30 05/02/2020 14:30 IMPORTANT Operating the system correctly removed and spread out so that the heat is dissipated. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 10 - The socket outlet and the plug on the appliance must be of the same type. - Do not touch the appliance when hands or feet are damp or wet. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 11 RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:30 05/02/2020 14:30 not use the appliance if it is damaged. - Should there be any kind of problem, contact Caple Service. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 12 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 13: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 14: Installation
= 54mm = 54mm > 54mm Option 1 Option 2 NOTE: The distance does not consider the thickness of the kick plate of the kitchen. > 54mm Instruction manual TDI4001 > 54mm Please keep this instruction manual for future reference... - Page 15 (7). Instruction manual TDI4000 Please keep this instruction manual for future reference Instruction manual TDI4001 Please keep this instruction manual for future reference Instruction manual TDI4000 Please keep this instruction manual for future reference...
- Page 16 This is only possible with some types of kick plate (e.g. wood or plastic). We suggest to check with NOTE: the kitchen suppliers. This is only possible with some types of kick plate (e.g. wood or plastic). We suggest to check with the kitchen suppliers. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 17 (GRILL/SENSE300) for the plinth cut out. To purchase, visit www.caple.co.uk. A LT E R N AT I V E I N S TA L L AT I O N - M O U N T I N G T H E F U R N I T U R E D O O R TO...
- Page 18 L metal brackets (K) to the furniture sides, to avoid possible tilting. A furniture plinth may now be run across the front of the dryer, but it’s height will be dictated by the front kick plate. Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 19: Operation
Always: Check that the filter is clean before every drying cycle. Never: Put dripping wet items into the tumble dryer, this may damage the appliance. Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 20 Sort the load by cares symbols. These can be found on the collar or inside the seam: Suitable for tumble drying Tumble drying at low temperature only Tumble drying at high temperature Do not tumble dry Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 21: Quick User Guide
CAUTION Injury or property damage risk drying result. RI5505 Fridge Freezer Instruction Manual.indd 7 RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:30 05/02/2020 14:30 Instruction manual TDI4001 IMPORTANT Operating the system correctly Please keep this instruction manual for future reference... -
Page 22: Control Panel
OFF. B - S TA R T / PA U S E B U T TO N To start the selected programme and/or suspend it. Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 23 › Press the START/PAUSE button again to re-start the programme from the point it had been paused at. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 24 RECALL: After the selection of the cycle, push the MEMORY button for recall of the stored options (not the cycle). NOTE: The delay start function cannot be memorised. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 25 1) Drying Selection Indicator Lights: These lights display the degrees of dryness that can be Instruction manual TDI4001 selected by the relevant button. Please keep this instruction manual for future reference...
- Page 26 When the dryer is off, the option is automatically inactivated. Child lock can be modified at any When the dryer is off, the option is automatically inactivated. Child lock can be modified at any time of the cycle. time of the cycle. Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 27: Drying Programmes
Operating the system correctly Please pay attention that overloading or bulky loads can lead to the door opening. In this case, please reduce the load capacity to continue the drying cycle. Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 28 A N T I - A L L E R G Y • • • P R E I R O N • • R E F R E S H • • Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 29: Cleaning And Maintenance
Clean the filters before every cycle. Pay attention that overloading or a bulk load can lead to the door opening. In this case, reduce the load capacity to continue the drying cycle. Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 30 When the tumble dryer is in use the drum and door may be VERY HOT. RI5505 Fridge Freezer Instruction Manual.indd 7 RI5505 Fridge Freezer Instruction Manual.indd 7 05/02/2020 14:30 05/02/2020 14:30 IMPORTANT Operating the system correctly Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 31 If the laundry is not drying check that the filter is not clogged. Clogged filters could increase the drying time and cause damages and expensive cleaning operation. If you clean filters under water, remember to dry them. Instruction manual TDI4001 Please keep this instruction manual for future reference...
- Page 32 Clean the filters before every cycle. Overloading or a bulk load can lead to door IMPORTANT Operating the system correctly opening. In this case reduce the load capacity to continue the drying cycle. Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 33: Troubleshooting
Does the filter need cleaning? T H E W AT E R TA N K I N D I C ATO R I S O N : Does the water container need emptying? Instruction manual TDI4001 Please keep this instruction manual for future reference... - Page 34 This is not a fault with the product. Humidity and condensation can form in the room when the product is in use. Ensure the room is adequately ventilated. If the problem persists or more help is required, please contact our Caple service team on 0117 938 7420 or via email service@caple.co.uk.
- Page 35 Instruction manual TDI4001 Please keep this instruction manual for future reference...
-
Page 36: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
