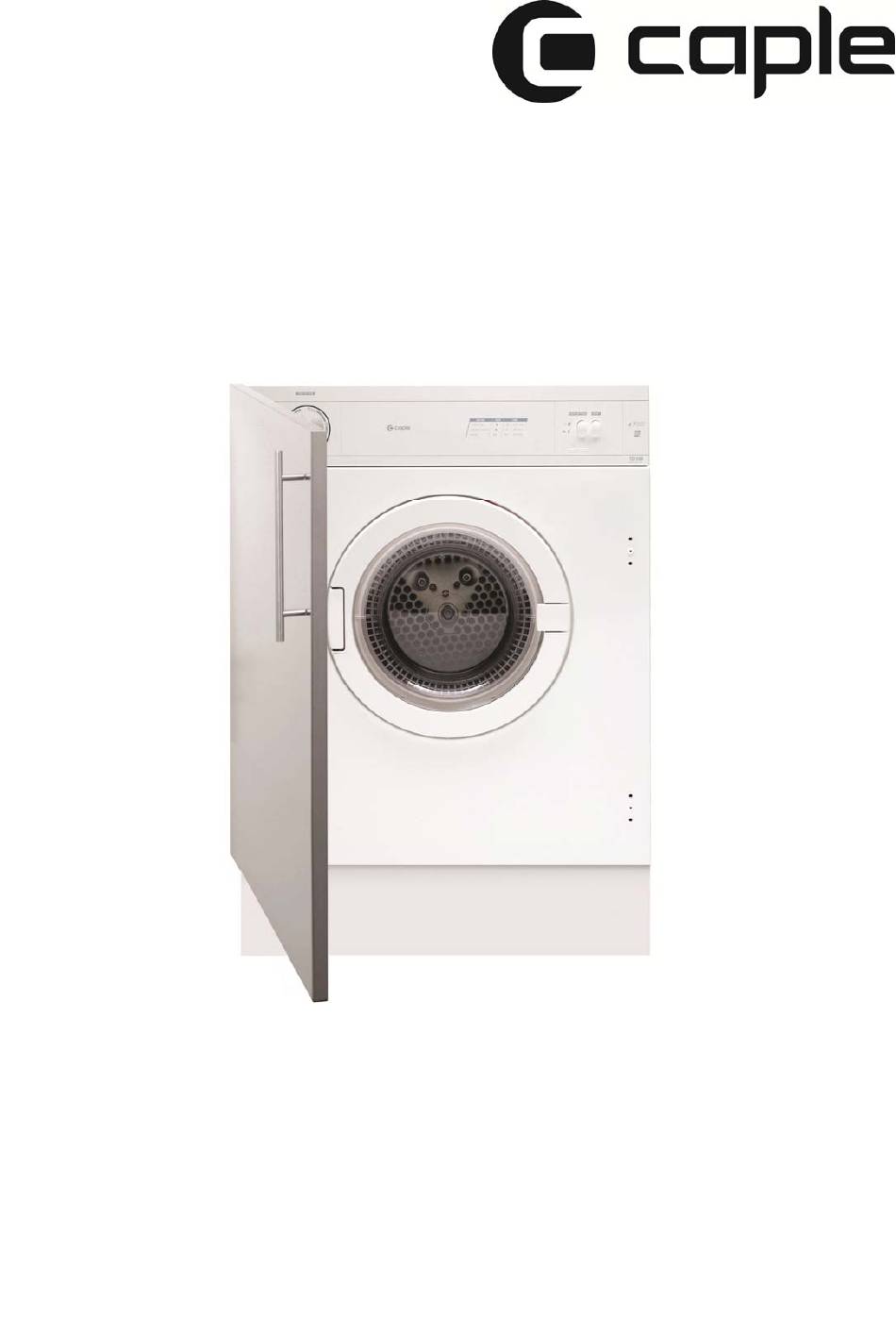

- Page 1 Instruction manual for integrated tumble dryer Model code: TDI100 Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
- Page 2 CONTENTS User Information Installation The Filter Control Panel Operation Door Reversal & Decor Door Technical Data & Problem Guide...
-
Page 3: Important User Information
IMPORTANT USER INFORMATION These notes are provided in the interest of safety. You must read them carefully before installing or using this appliance. − Children should not be allowed to tamper with the controls and should be supervised to ensure they do not play with the appliance. −... -
Page 4: Installation
INSTALLATION The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations. Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram. - Page 5 THE FILTER The filter is found, as seen from the diagram, by opening the door and must always be in position when drying items in the appliance. To allow the dryer to operate efficiently it should be cleaned after each drying cycle. Do not be alarmed by the amount of fluff deposited on the mesh.
-
Page 6: Control Panel Guide
CONTROL PANEL GUIDE 1. The Timer Select the drying time from the recommendations shown on the control panel (3). Turn the timer knob to the required drying time. 2. Heat Setting Select half or full heat as recommended on the control panel. -
Page 7: Operation
OPERATION Sort out the clothes into groups of similar fabrics and colours. Check the care label inside the garment. We suggest that a fabric conditioner be used to reduce static electricity. Delicate articles e.g. tights should be placed inside a pillowcase. It is better to dry small and large articles together. -
Page 8: Door Reversal
DOOR REVERSAL APPLIANCE DOOR The door on the dryer can be positioned either with the left or right hand hanging. Please follow illustrations below to change the door position. THE DECOR DOOR The hinges can be fastened through the pre−drilled holes on either the left or right hand with the door stops being fitted on the other side. -
Page 9: Technical Data
TECHNICAL DATA Overall dimensions : height 86.5 ˘ 89cm width 59.5cm depth 53cm Maximum dry weight of cotton, linen 6.0kg synthetics 2.0kg. For electrical ratings see plate on rear of machine. This product is manufactured to comply with the radio interference requirements of the Council directive 89/336/EEC, 2004/108/EC. - Page 10 This label positioned on the rear of your dryer, indicates the surface is hot when in operation ˘ avoid touching. CAUTION HOT SURFACE This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a Europen wide validity of return and Recycling on Waste Electrical and Electronic Equipment.
