Gateway Five
iPod, USB, Bluetooth
User Manual
Peugeot CAN
v1.0
Part 1
GWF-9203-1
1
Introduction

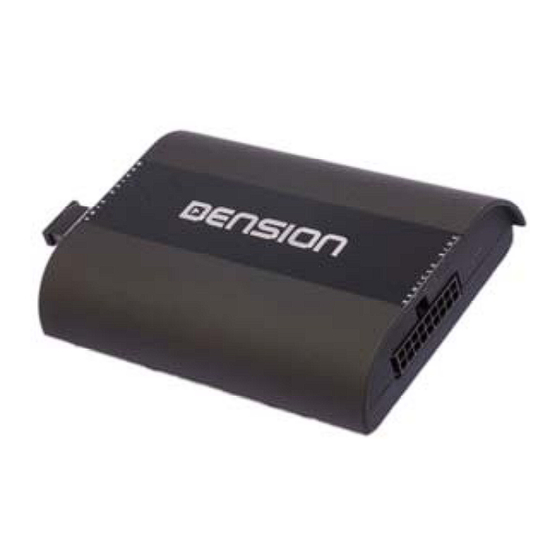

The Dension Gateway Five lets you connect your
iPod or USB storage (stick, hard drive or mass
storage capable mp3 player) to your original car
radio, providing music playback, menu based
control and charging.
The
Gateway
Five
also
connectivity for music streaming (via A2DP) and
handsfree mobile call handling via the original
buttons and screens of your vehicle.
Supported audio devices
USB
Flash Memory and Hard Disk Drive
(UBS1.1 and higher)
File System:
FAT16 or FAT32
Storage capacity: up to 250 GB*
Music Format:
MP3,
WAV, OGG
th
iPod
iPod (4
generation)
st
nd
iPod nano (1
, 2
, 3
generation)
iPod mini
iPod Photo 4G
iPod Video 5G
iPod Classic
st
nd
iPod Touch (1
, 2
and 3
iPhone, iPhone 3G, iPhone 3Gs
Aux
3.5mm stereo aux input
*250 GB or more depending on your music
content (e.g. size, bitrate, number of songs)
Connections
Switch on your car radio and select CD-Changer
mode by pressing the 'SOURCE' button.
Connect your iPod or USB storage to the
Gateway. It will start playing the first song on the
device. If the Gateway has been in use earlier,
music will play from your iPod or USB from the
point at which they last played.
When switching off the radio the playback will stop
and the source devices will go to standby if the
ignition key is removed.
2
You can pair the Gateway Five with a Bluetooth
capable mobile phone for music streaming
(requires an A2DP capable phone) or handsfree
use (if that option is active in the Gateway).
Pairing is controlled from the mobile phone the
same way as connecting to other Bluetooth
offers
Bluetooth
accessories. The pin code to the Gateway Five is
0000 (for further details read Section 8).
How to control
The menu of the Gateway five is displayed on the
main screen.
controlled from the radio, but it is also possible to
select the next (
from the stalk controller.
WMA
and
rd
th
th
, 4
and 5
rd
generation)
3 Operation
You can enter the Gateway Five main menu by
pressing disc 6 on the Radio or by rolling the
'MEMO' wheel down on the stalk controller.
Getting started
The music playback and settings are
) or the previous track (
)
