Summary of Contents for Caple C603E

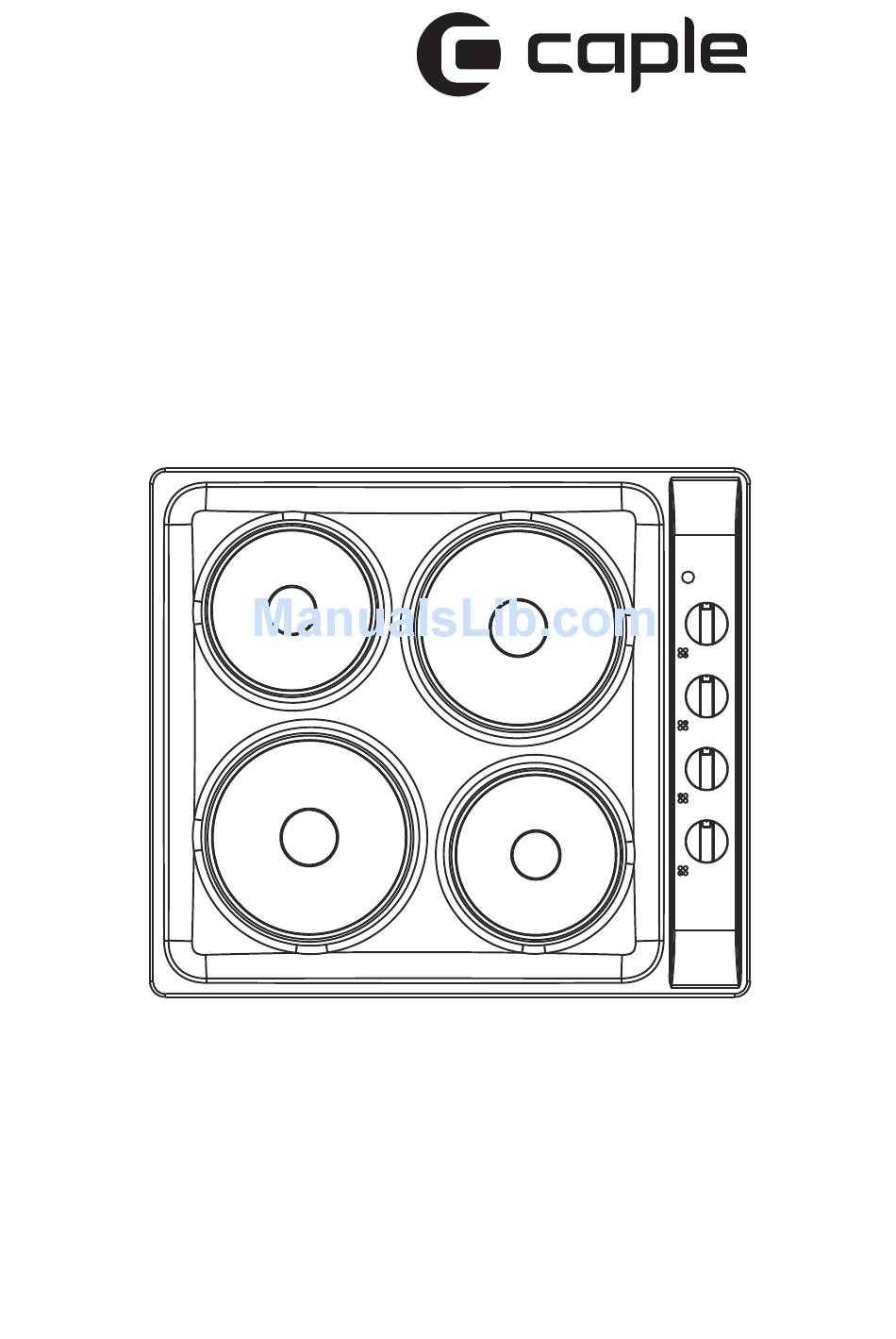

- Page 1 Instruction manual for 4 plate electric hob model code: C603E Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: Safety Instructions
Safety instructions This manual explains the proper installation and use of your appliance, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Service may repair this hob. - Page 3 Safety instructions Do not use the cooking zones with empty Safety when cleaning For cleaning, the appliance must be switched off cookware or without cookware. and cooled down. To avoid damaging cookware, do not allow For safety reasons, the cleaning of the appliance saucepans or frying pans to boil dry.
- Page 4 Hotplate Control Knobs Technical Data Accessories Product Dimensions Electrical Max. Power Description Model (h x w x d) mm Connection Rating C603E 45x580x510 220-240V/50Hz 5500 W User Manual Left-upper(standard) 1000 W Ø 155mm ST4.2x22 Ø 155mm Right-lower(standard) 1000 W Ø 188mm...
-
Page 5: Installing The Appliance
Installing The Appliance IMPORTANT: The benchtop and surrounding cabinet(s) must be able to withstand a minimum temperature rise of 100°C above the ambient temperature of the room it is located in, during period of use. This appliance is to be built into a kitchen unit (depending on size) or 600mm worktop, providing the following minimum distances are allowed: 600mm (minimum) between the hob surface and the underside of any horizontal surface above it. - Page 6 IMPORTANT: Do not use a silicon sealant to seal the appliance against the benchtop. This will make it difficult to remove the cooktop from the benchtop in future, particularly if it needs to be serviced. 1. Benchtop 2. Screw 3. Bracket 4.
- Page 7 Start Using Your Appliance Before first use, switch on one hotplate at a time for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
- Page 8 You should not use saucepans with rough bottoms, as this can scratch the solid plates. Before use, make sure that the bottoms of the saucepans are clean and dry. Cover pans with a lid to permit cooking at a lower heat. Food or liquid that has a high sugar content may damage the cooktop if it comes into contact with the hotplates.
-
Page 9: Maintenance
Maintenance Caution: Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed. Cleaning Your Cooktop Allow the cooktop to cool before cleaning. The hotplates should be cleaned after every use to avoid build up of food. - Page 10 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk t: 0117 938 1900 e: sales@caple.co.uk...
