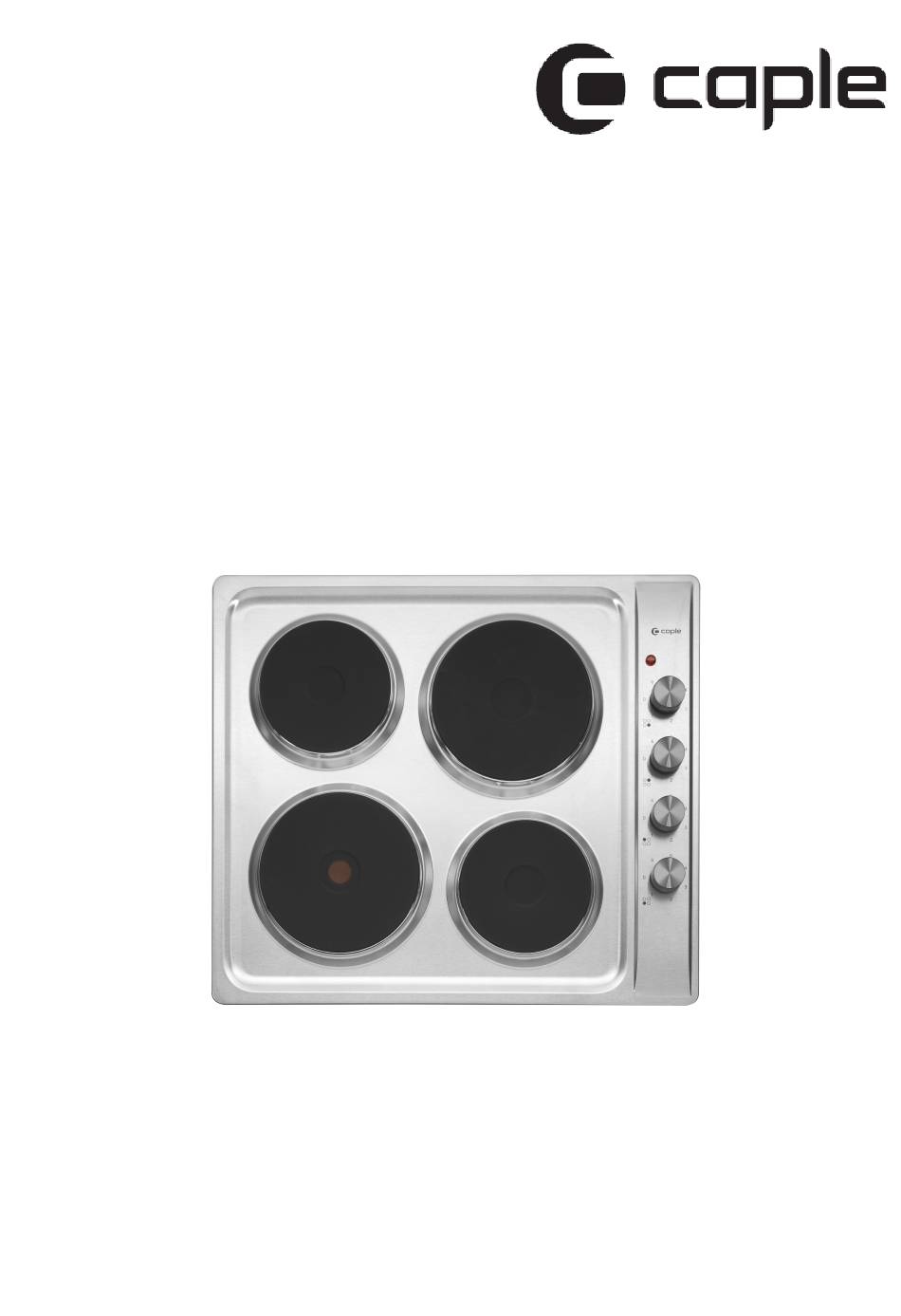

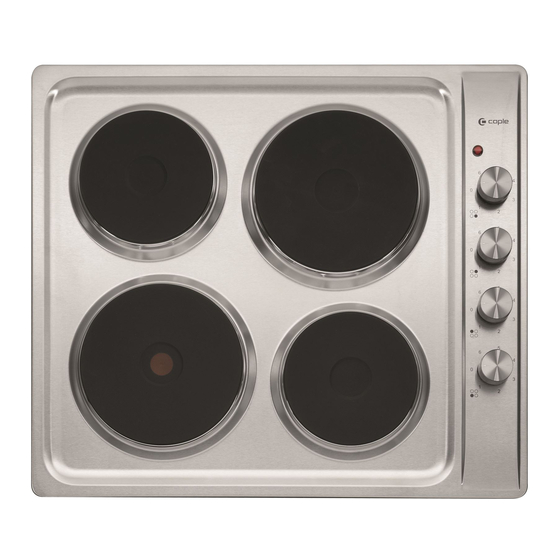

- Page 1 Instruction manual for 4 plate electric hob Model code: C605E Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Contents Environmental note IMPORTANT SAFETY INFORMATION 4 – 7 Specifications Product and aperture dimensions Product specifications Electrical details Using the hob 9 - 11 Before first use Control knobs Switching on a zone and setting a power level Hob guidelines Cleaning and maintenance Cleaning the hob top After each use... -
Page 3: Environmental Note
Environmental note Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). -
Page 4: Important Safety Information
Important safety information Your safety is of the utmost importance to us. Please make sure that before you read this instruction booklet attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the retailer where you purchased your unit. - Page 5 To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and maintenance the appliance. Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
- Page 6 o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times. Older children should only be allowed to utilise the appliance when supervised. General Safety The appliance should only be installed and connected by a suitably qualified person.
- Page 7 Cleaning o Cleaning of the hob should be carried out on a regular basis. IMPORTANT: Before attempting to clean the appliance, it should be disconnected from the mains and allowed to cool. o Great care should be taken whilst using this appliance and when following the cleaning procedure.
-
Page 8: Specifications
Specifications Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 485 mm Width: 580 mm Width: 560 mm Height: 52 mm Product specifications: o 1 x 2.00 kW rapid plate (Ø 188 mm) o 1 x 1.50 kW standard plate (Ø 188 mm) o 2 x 1.00 kW standard plate (Ø... -
Page 9: Electrical Details
Electrical details Rated Voltage: 220-240V ac 50-60 Hz Supply Connection: 25A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 5.50 kW Mains Supply Lead: 3 core x 4.0 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 10: Control Knobs
Control knobs o All operations are performed by means of the 4 control knobs that can be found on the right hand side of the cooktop top. o The control knobs can be turned either clockwise or anti-clockwise to select a heating level. -
Page 11: Hob Guidelines
Hob guidelines o The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use. o The hob surface is fitted with cooking areas of different diametre and power. o The positions where the heat will radiate from are clearly marked on the hob top. -
Page 12: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning or maintenance process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 13: Maintaining The Solid Plates
Maintaining the solid plates o If something is spilt onto the plate itself, then it can be removed using a soft brush, plastic or nylon scourer and warm water. o To keep the solid plates in good condition, you should put a little olive oil onto a kitchen towel and rub it onto the surface of the plate. -
Page 14: Installation
Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o AS/NZS 3000: 2007 Wiring Regulations o 2010 Electricity Safety Regulations Positioning The adjacent furniture must be able to withstand a minimum temperature rise of 100°C above the ambient temperature of the room it is located in, during periods of use. -
Page 15: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. IMPORTANT: You must observe the ventilation requirements shown in the drawing opposite. IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. - Page 16 IMPORTANT: There are ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 17: Electrical Connection
Electrical connection YOUR HOB IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o Cable type: H05 RRF 3 core x 4.0 mm² (Type RR-F <HAR> marked). o The mains cable is not supplied with this product. o Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 18: Replacing The Mains Supply Cable
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. o Broken or damaged power leads must only be replaced by a suitably qualified person. A power lead of a similar type must be used in replacement. The cable must be able to withstand temperatures of 120°C. - Page 19 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Caple customer services department, telephone 0844 800 3830. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if a service technician is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
-
Page 20: Contact Details
Caple Fourth Way Avonmouth Bristol BS11 8DW ww.caple.co.uk...
