  • Page 1 User Manual...
  • Page 2 Functions & Features The digital camcorder has various features and functions: l Digital Video l Digital camera (5 million pixels) l 2.7″ resistive touch screen l Mass Storage (Removable disk) l PC Digital video (Camera l 8 times digital zoom Accessories You will find the following main accessories after opening the package: USB connector...

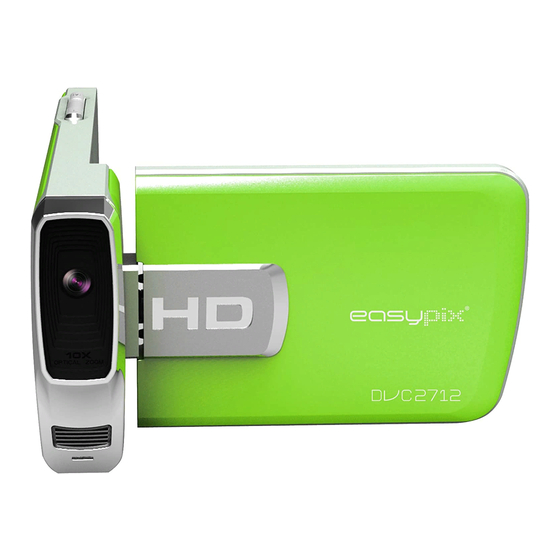

  • Page 3 Brief Introduction on Appearance...
  • Page 4 (1) Shutter key (2)Shaft (3) Hang rope buckle (4) Display screen (5) AV port (6) TF card slot (7) USB port (8) Power key (9) Mode switch key (10) Menu key (11) Charger light (12)W key (13) T key(14) Loudspeaker (15) Lens (16) LED fill light (17) Microphone...
  • Page 5 Camera key press functions and indicators Press/Indicator Functions Power key Turn the digital camcorder on/off Video mode, record video/stop recording, shooting Shutter key mode, act as a shutter Digital enlargement and digital zoom, select document by pressing T key left (playing back mode). Press up to select menu. After opening menu, the volume will be turned up (when display video) Digital lessen and digital zoom, select document by pressing right W key...
  • Page 6 ─────────────────────────────────────────────── Note lTurn the power off before replacing the memory card. lInsert cards in correct direction. Do not insert cards with large force to avoid damaging cards or any part of the digital video. If failed, check whether the direction is correct. l...
  • Page 7 Tap the center of the touch screen once to start recording; press it again to stop. Shoot In the shooting mode, press Shoot key to take photos. Tap the center of the touch screen once to start shooting. Self-timer mode: start countdown after pressing the Shoot key. Take one photo after delaying 2s or 10s.
  • Page 8 Shutter key to play. Press this key again to stop playing. During playing, press OK key to suspend, and then press such key again to continue playing. After selecting videos, tap icon to play it. Tap key to suspend playing; icon to continue playing.
  • Page 9 NOTE lIf setting auto power off on "OFF", the camera will not power off automatically until the power is low. Menu Settings In the shooting/video recording/playing back modes, press Menu key to open the menu, and then press Up/Down/Left/Right key to select menus, then press OK key to enter sub-menu.
  • Page 10 In the setting interface, press Left/Right keys to select items to be adjusted (date or time). The button icon will be shown on the up/down edges of selected items. Press Up/Down keys to adjust (or tap icons to adjust). After adjustment, press OK key or tap icon on the screen to confirm.
  • Page 11 Press Shutter key to start recording, and press such key again to stop recording. Tap the icon to open/close the LED fill light (the fill on the touch screen light is unavailable in the playing back mode). The information will be shown on the screen in the video recording modes. 1 2 3 4 Icon Name Description...
  • Page 12 The free time indicates the remaining Recording time available recording time; the recording time indicates the recorded time. icon indicates to insert the TF card memory card. power Tap it on the touch screen to turn on/off on/off for LED LED fill light.
  • Page 13 Menu Settings for video recording Press Menu key to open Video recording. Press T/W key to select menus, and then press shutter key to enter sub-menus. Press Menu key or OK key to return to the main menu. Press T/W key to select, and the press SHUTTER key to confirm.
  • Page 14 Auto It is fit for many conditions. light Day light circumstance. cloudy Cloudy day White balance circumstance. It is fit for fluorescent lamp Fluorescent lamp circumstance. It is fit for tungsten lamp Tungsten lamp circumstance. Normal Normal effect Black & White Black &...
  • Page 15 When shooting/video recording, the date will be Date print on the lower right corner of files. When shooting/video recording, the date and Date & Time time will be print on the lower right corner of files Shooting Mode After being turned on, the digital camcorder will enter the video recording mode automatically, please press Mode Switch key to enter the shooting mode.
  • Page 16 1 2 3 4 5 6 7 Icon Name Description It indicates that it is able to take Shooting photos by pressing Shutter key in mode the shooting mode. Countdown It instructs the countdown for for self-timer self-timer. White It indicates the current settings for balance white balance.
  • Page 17 Picture It indicates current selected picture quality quality. Available It indicates the remaining numbers numbers of of photos available to be taken. photos It indicates current ISO setting. power Tap it on the touch screen to turn on/off on/off LED fill light. LED fill light Menu key on touch...
  • Page 18 instruction digital zoom. Menu setting for shooting mode Press Menu key to open Shooting menu. Press T/W key to select menus, and then press shutter key to enter sub-menus. Press Menu key or OK key to return to the main menu. Press T/W key to select, and the press SHUTTER key to confirm.
  • Page 19 Normal Normal picture quality It subjects to the central Central metering area when metering Multi-spot It subjects to multi spots Metering mode metering when metering It subjects to one spot Spot metering when metering Auto It is fit for many conditions. light Day light circumstance.
  • Page 20 delayed self-timer mode. delayed self-timer mode. Continuous Continuous shooting shooting Normal Normal effect Black & White Black & White effect Return to the Return ancients ancients effect Special effects Negative film Negative film effect Partial red effect Green Partial green effect Blue Partial blue effect Disable...
  • Page 21 13 14 15 2 3 4 5 7 8 9 10 11 When shooting/video recording, the date and Date & Time time will be print on the lower right corner of files. AUTO Set ISO value as Auto ISO 100 Set ISO value as 100 ISO 200 Set ISO value as 200...
  • Page 22 Document Indicates current document has been locked to protect. protection Indicates current document has added Voice memo voice memo After enlarging photo, click four icons Translational including up, down, left and right on icon screen to realize translational scan photo. Menu Click the icon on screen to open menu Indicates current document is video...
  • Page 23 Menu Settings for Playing Back Mode Press Menu key to open the main menu, and then press Up/Down keys to select. Press OK key to enter the sub-menus. Press Menu key or OK key to return to the main menu. Press Up/Down keys to select, and then press OK key to confirm.
  • Page 24 Loop Yes/No Add voice memo to photos Voice memo Delete Delete voice from photos Note: It is able to add voice memo up to 30s to every photo. In the playing back mode, photos with voice memo will have icon. Press OK key to start to play voice memo, during which press Up key to suspend playing or press Menu key to stop playing.
  • Page 25 Main Menu Sub Menu Description Shutter On/off Starting up No/1/2/3 tone Sound Key tone On/off Volume 0/1/2/3 No playback after shooting Auto playback Playback 1s after shooting Playback 3s after shooting Set light source frequency as 50Hz 50HZ Power frequency Set light source frequency as 60Hz 60HZ...
  • Page 26 Set date & time, together with the Date & Time date format English Set the menu language as English Français Set the menu language as French. menu language Español Spanish. Language Italiano Set the menu language as Italian. menu language Português Portuguese.
  • Page 27 directory “DCIM\100MEDIA” in the removable disk. It is able to enter such directory to copy files to your computer hard disk. ─────────────────────────────────────────────── Note: do not disconnect USB connection during files download. Do not insert or remove memory cards during USB connection to avoid data loss. ───────────────────────────────────────────────...

  • Page 28: Installing Driver And Software

    Please ensure that selecting the Preview the menu of Option Installing driver and software The accessory CD contains the camera driver and provided software MAGIX Video easy SE / MAGIX Photo Manager MX (for photo and video processing). Installation interface Please insert the CD into the CD-ROM, the system will automatically run the installer in the CD, and the screen shows the installation wizard window as below.
  • Page 29 Installing driver In the installation wizard window, click the “Install Driver” button and follow the wizard to install step by step. Please restart the PC after installing the driver. Run the software MAGIX Video easy SE / MAGIX Photo Manager MX, click the button in the wizard window and follow the prompt to install step by step.
  • Page 30 File format JPEG, AVI FHD1920x1080 HD 1280X720 VGA 640×480 Video resolution Self-timer delay 2 s / 10s Digital Zoom 8 times Auto / Sunny day / Cloudy day / Fluorescent lamp / Tungsten White balance lamp Exposure compensation -2.0 ~ +2.0 USB port USB2.0 TV output...
  • Page 31 Note: the design specification of the product was formulated according to the latest information when compiling this instruction. There is no prior notice for any modification. Please refer to the actual digital video. There is not enough power, please replace batteries. The camera fails to Do not remove the battery package start up after installing...

  • Page 32: Declaration Of Conformity

    DECLARATION OF CONFORMITY easypix herebly declares that the product DCV2712 is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_dvc2712.pdf For technical help please visit our support area on www.easypix.eu.
