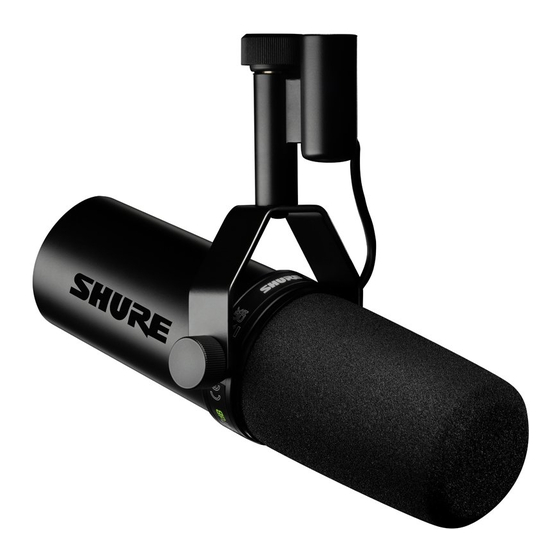

- Page 1 SM7dB Vocal Microphone with Active Preamp SM7dB online user guide. Version: 2.0 (2023-I)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Adjust Back Panel Switches SM7dB Vocal Microphone with Active Preamp Switching Microphone Orientation SAFETY PRECAUTIONS Install or Remove the Stand Adapter General Description Specifications Powering the SM7dB Preamplifier Accessories Preamplifier Best Practices Furnished Accessories Replacement Parts... -
Page 3: Sm7Db Vocal Microphone With Active Preamp
Powering the SM7dB Preamplifier Important: The SM7dB requires +48 V phantom power to operate with the preamplifier engaged. It will operate in bypass mode without phantom power. To deliver audio directly to a computer, use an audio interface with an XLR input that provides +48 V phantom power, such as the Shure MVi or MVX2U, and turn phantom power on. -
Page 4: Preamplifier Best Practices
The SM7dB features a builtin active preamplifier which provides up to +28 dB of lownoise, flat, transparent gain that opti mizes audio performance. Adjust the gain level on the SM7dB before adjusting levels on your interface or mixer. This approach maximizes the signal-to- noise ratio for a cleaner, clearer sound. In podcast or quiet vocal applications, you are more likely to need the +28 dB setting, while louder talkers or singers may only need the +18 dB setting. For instrumental applications, you may find that the +18 dB or the bypass settings reach the ideal in... -
Page 5: Windscreen
Shure Incorporated Velcro Cable Tie Use the enclosed velcro tie to secure the cable. Windscreen Use the standard windscreen for general voice and instrumental applications. When you speak, you may hear vocal pops from some consonant sounds (known as plosives). To prevent more plosive sounds and wind noise, you can use the larger A7WS windscreen. -
Page 6: Switching Microphone Orientation
Boom and Microphone Stand Mounting Configuration The SM7dB can be mounted on a boom arm or a stand. The default setup for the SM7dB is for a boom mount. To keep the rear panel facing upright when mounted on a stand, reconfigure the mounting assembly. - Page 7 Shure Incorporated Mounting Assembly - Exploded View ① Tightening nut ② Fitted washer ③ Lock washer ④ Brass washers ⑤ Brass sleeve ⑥ Mounting bracket ⑦ Plastic washer ⑧ Response switches ⑨ Switch cover ⑩ Windscreen 7/12...
-
Page 8: Install Or Remove The Stand Adapter
Shure Incorporated Install or Remove the Stand Adapter To mount the microphone on a 3/8 in. stand, insert the included brass stand adapter and tighten it with a coin or screwdriver. Important: Make sure that the slots on the adapter face outward. - Page 9 Shure Incorporated Sensitivity Flat response bypass mode 59 dBV/Pa[1] (1.12 mV) Flat response +18 preamp engaged -41 dBV/Pa[1] (8.91 mV) Flat response +28 preamp engaged -31 dBV/Pa[1] (28.2 mV) Hum Pickup (typical, at 60 Hz, equivalent SPL/mOe) 11 dB Preamplifier Equivalent Input Noise (A-weighted, typical)
- Page 10 Shure Incorporated Typical Frequency Response Typical Polar Pattern 10/12...
-
Page 11: Accessories
31A1856 Replacement Parts Cartridge for SM7dB RPM106B Black Windscreen for SM7dB RK345B Nut and Washers for SM7dB Yoke Mount RPM604B Certifications CE Notice Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with Euro pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/enEU/support/declara... - Page 12 REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK) chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a concentration above 0.1% weight over weight (w/w) is available upon request.
