Clarion CZ3D2 Service Manual

This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
* Koki's lead free solder S3X-55M 1.0mm
(CLARION Parts No.642-0231-02)
2. Use a nitrogen solder system.
3. Do not use "General solder" and "Lead free solder"
together.
NOTES
* This product includes technology owned by Microsoft Cor-
poration and cannot be used or distributed without a li-
cense from MSLGP.
* Specification and design are subject to change without no-
tice for further improvement.
* Copyright 2012 Clarion Company,Ltd. All rights reserved.
No portion of this manual can be reproduced in any way,
electronically or otherwise, without the express prior per-
mission of the copyright owner.
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-ku, Saitama-shi, Saitama 330-0081 Japan
After Service Dept.: 7-2,Shintoshin,Chuo-ku,Saitama-shi 330-0081 Japan
Phone: +81-48-601-3792 Fax: +81-48-601-3804
- 1 -

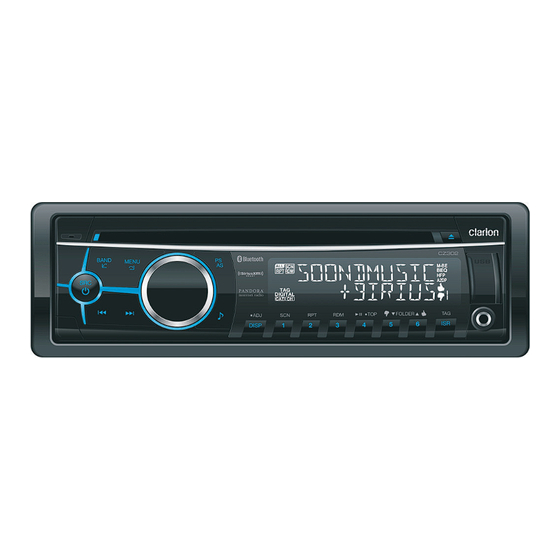

Service Manual
Bluetooth/CD/USB/MP3/WMA
RECEIVER
TX-1098B-A
Model
About the Registered Marks,etc.
* "Made for iPod," and "Made for iPhone" mean that an elec-
tronic accessory has been designed to connect specifi-
cally to iPod, or iPhone, respectively, and has been certi-
fied by the developer to meet Apple performance stan-
dards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards. Please
note that the use of this accessory with iPod or iPhone
may affect wireless performance.
iPhone and iPod are trademarks of Apple Inc., registered
in the U.S. and other countries.
* The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Clarion
Co.,Ltd. is under license.
Other trademarks and trade names are those of their re-
spective owners.
16.Apr.2012
Published by Foryou General Electronics Co., Ltd
Printed in P.R.C.
2012/04 No.E7210-00
CZ302
