Basic Operation; I Turning Power On; I Channel Selection; I Call Procedure - Icom IC-F43TR Instruction Manual

I Turning power ON

q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up passcode,
input the digit codes as directed by your dealer.
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
0
NUMBER
5
e When the "PASSWORD" indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.

I Channel selection

Push [UP] or [DOWN], or rotate [ROTARY SELECTOR] to
select the desired system channel or talk group, in sequence.
• Up to 16 pre-programmed channels can be selected via [ROTARY
SELECTOR].
UP
1 2 3 4
6 7 8 9

BASIC OPERATION

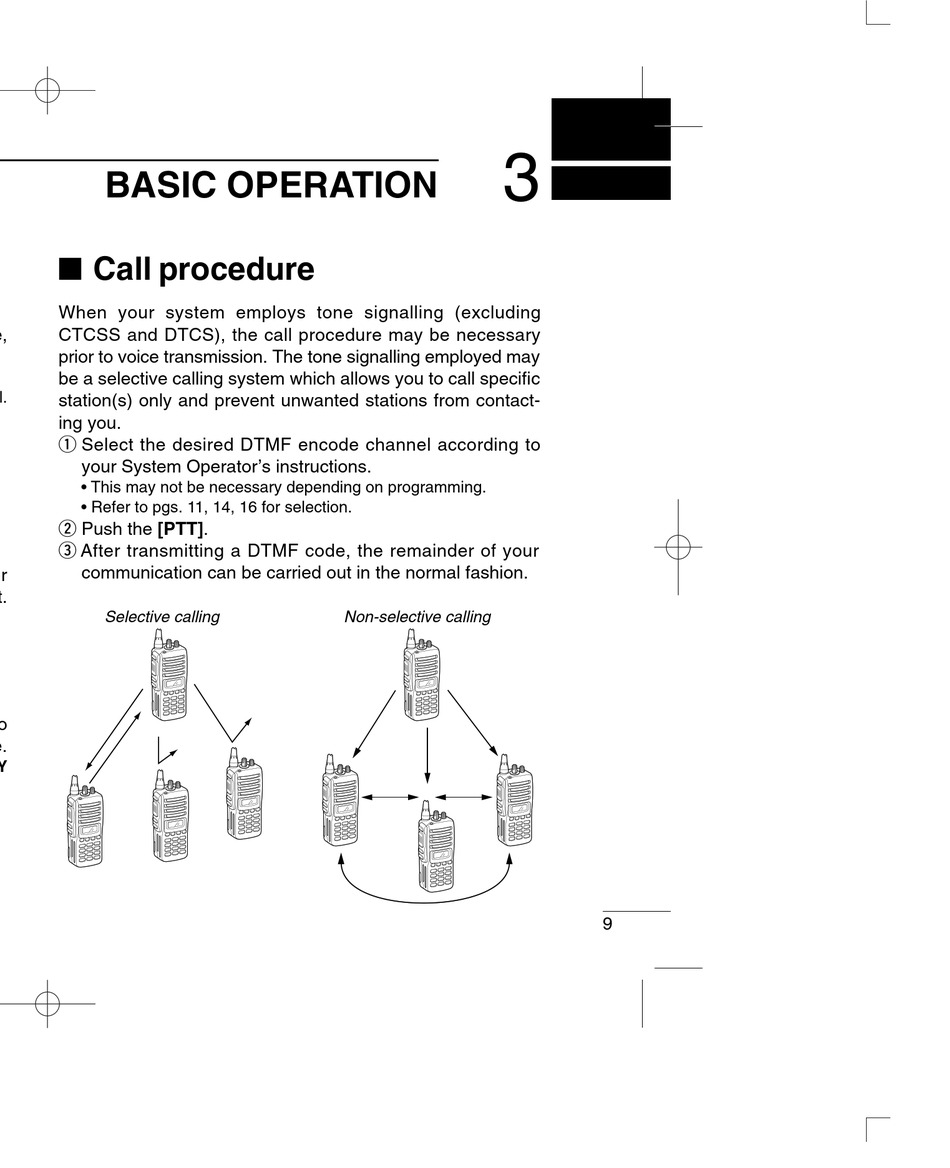

I Call procedure

When your system employs tone signalling (excluding
CTCSS and DTCS), the call procedure may be necessary
prior to voice transmission. The tone signalling employed may
be a selective calling system which allows you to call specific
station(s) only and prevent unwanted stations from contact-
ing you.
q Select the desired DTMF encode channel according to
your System Operator's instructions.
• This may not be necessary depending on programming.
• Refer to pgs. 11, 14, 16 for selection.
w Push the [PTT].
e After transmitting a DTMF code, the remainder of your
communication can be carried out in the normal fashion.
Selective calling
3
Non-selective calling
9
