I UT-109 and UT-110 installation

Install the optional UT-109/UT-110
lows:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 2)
w Remove the unit cover as shown on p. 18 (UT-113 instal-
lation).
e Cut the pattern on the PCB at the TX mic circuit (MIC) and
RX AF circuit (DISC) as shown below.
r Install the UT-109/UT-110
in the optional UT-113 installation (p. 18).
t Replace the unit cover and the battery pack, then rotate
[VOL] to turn the power ON.
as fol-
SCRAMBLER UNITS
as described
SCRAMBLER UNITS

OPTIONAL UNIT INSTALLATION

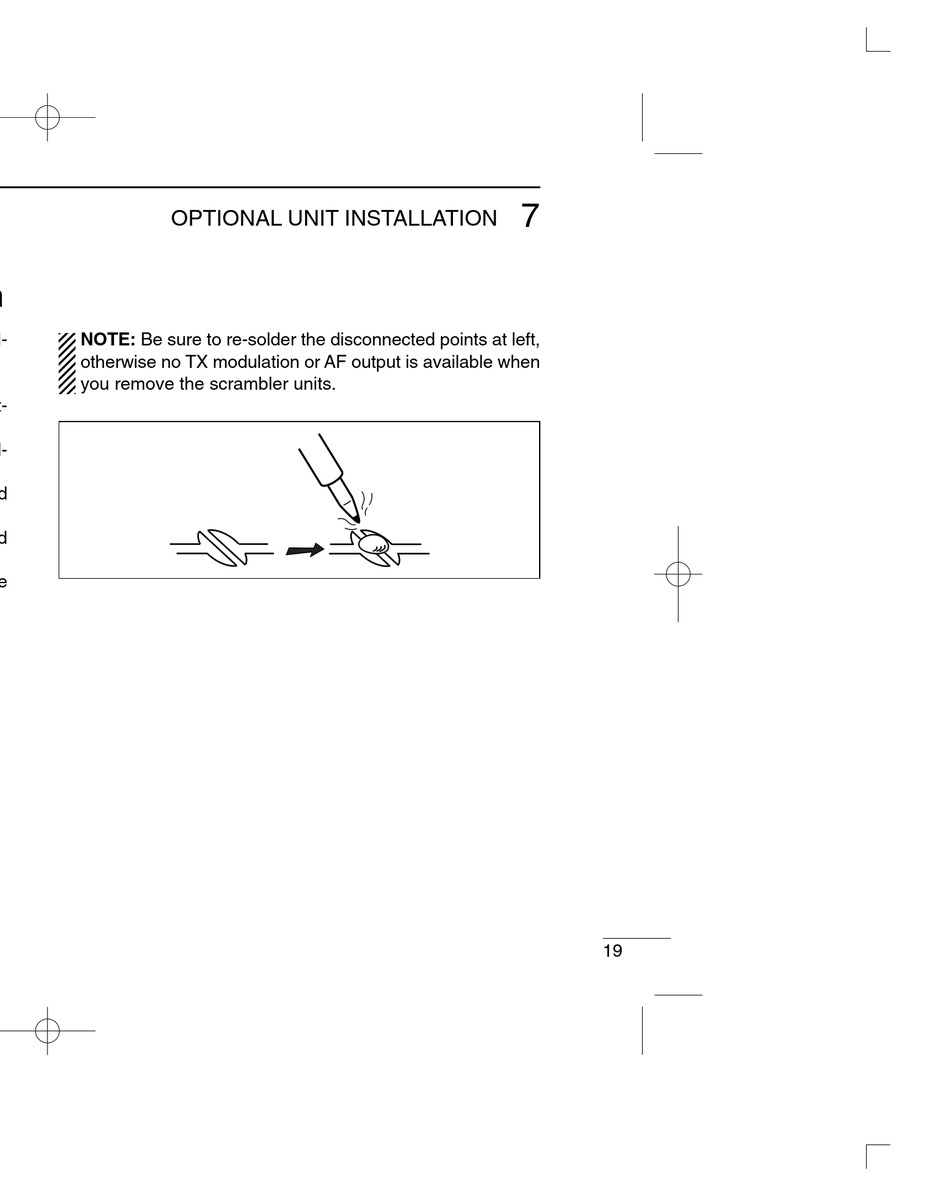

NOTE: Be sure to re-solder the disconnected points at left,
otherwise no TX modulation or AF output is available when
you remove the scrambler units.
