Icom IC-F43TR Instruction Manual page 26

8
BATTERY CHARGING

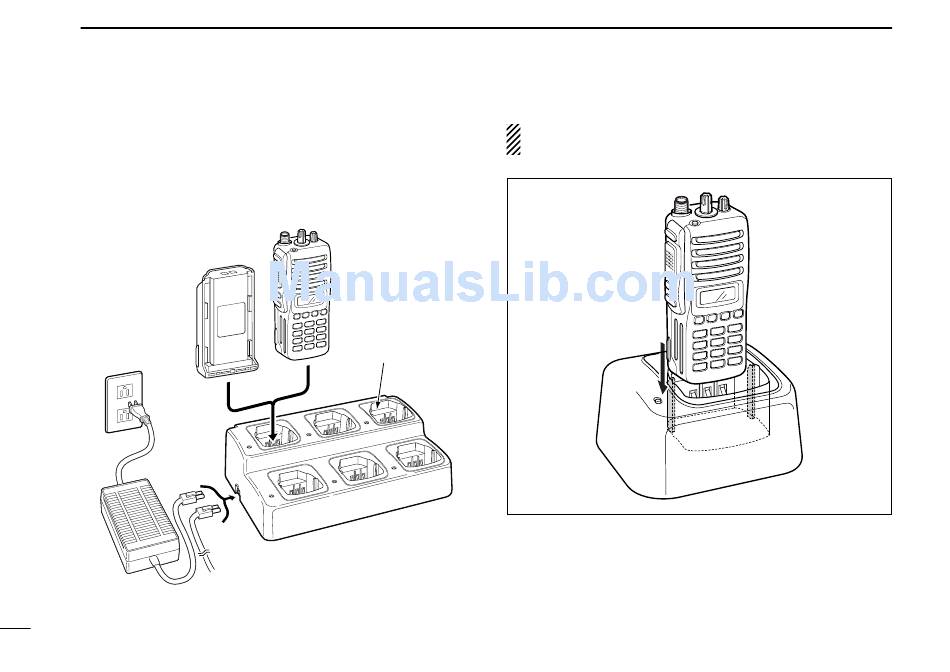

ï Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally
required.
• Six AD-106 charger adapters
• An AC adapter (BC-124)
AC adapter
(Purchase
separately)
22
IC-F43TR
BP-232
AD-106 charger
adapters are installed
in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
IMPORTANT: Ensure the sides of the battery pack are cor-
rectly aligned with the charger groves.
