Operating and Assembly Instructions
VR 421-611
Electric Grill

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR 421-611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gaggenau VR 421-611

Summary of Contents for Gaggenau VR 421-611

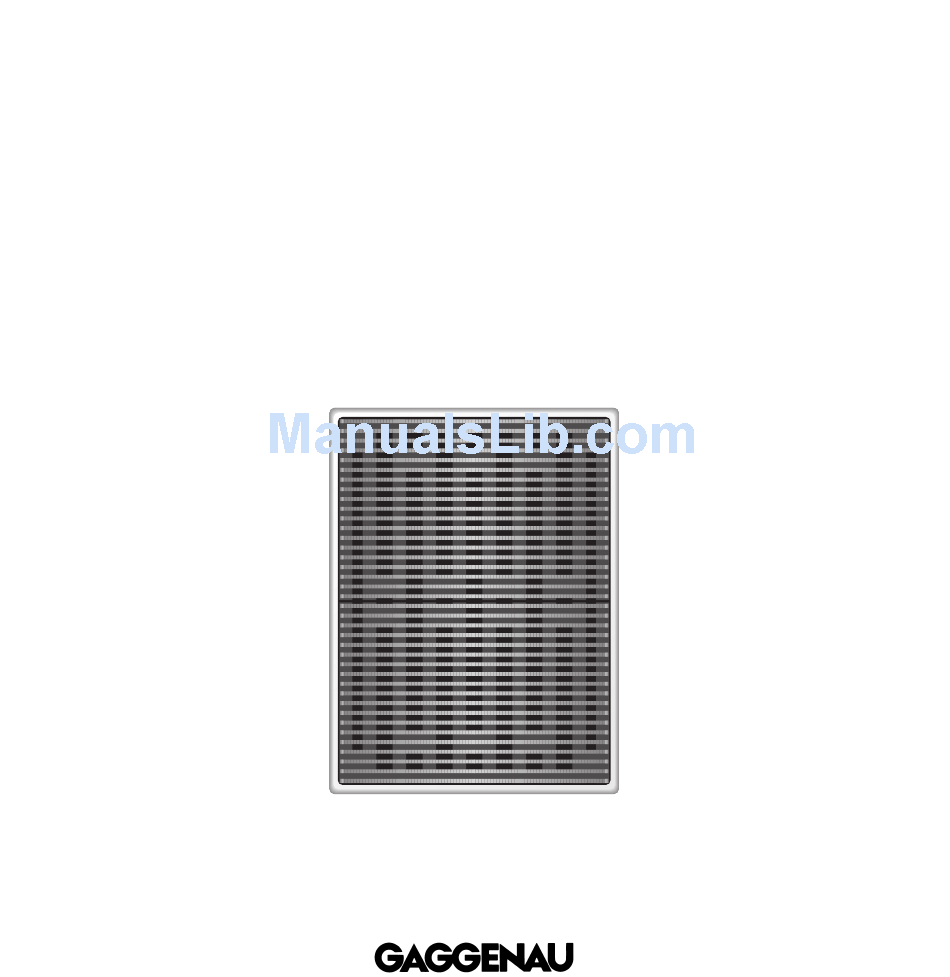

  • Page 1 Operating and Assembly Instructions VR 421-611 Electric Grill...

  • Page 3: Table Of Contents

    VR 421-611 Important Safeguards Page 3 1. Important Notes Page 4-5 For your safety Page 4 Operating for the first time Page 5 About use Page 5 2. Features Page 6 Features Page 6 Included accessories Page 6 Special accessories Page 6 3.
  • Page 4 Congratulations on purchasing your new “Vario” appliance. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important instructions on safety and operation. They will serve to ensure your personal safety and the long lasting use of your appliance.

  • Page 5: Important Safeguards

    Important Safeguards Read All Instructions. 4. DO NOT TOUCH HEATING ELEMENTS OR AREAS NEAR UNITS. Heating elements may be hot even though they are dark in color. Areas 2. To eliminate the risk of burns or fire by reaching near heating elements may become hot enough over the heated surface units, cabinet storage to cause burns.

  • Page 6: Important Notes

    1. Important Notes For your safety Do not operate the appliance if it is damaged. Isolate the appliance from the mains during every maintenance operation. To do this, remove the The appliance must only be connected by an mains plug or switch off the corresponding fuse. authorised specialist, paying attention to the relevant regulations of the power supply companies Repairs must be carried out by authorised...

  • Page 7: Operating For The First Time

    Gaggenau customer service. Read through these instructions carefully before operating your appliance for the first time. Before using the appliance for the first time, take the lava stones out of the plastic bag and pour them into the lava stone container.

  • Page 8: Features

    2. Features Features 1 Appliance cover 2 Cast grid iron (two parts, detachable) 3 Work surface 4 Grilling elements 5 Lava stone container to accommodate the lava stones 6 Grease tray (dishwasher-proof) 7 Control knob for front grilling element 8 Control knob for rear grilling element •...

  • Page 9: Operation

    3. Operation Caution! Switching on Grilling produces very high temperatures. Keep children away! Never switch on the appliance with the cover closed. Switching on Press down the control knobs and turn them left or right to the required position (1-12). For grilling, choose a level between 7 and 12.

  • Page 10: Switching Off

    Switching off Switching off Fully turn both control knobs to the OFF position. Residual heat display After switching both control knobs to the OFF position, the luminous discs behind the control knobs will flash, as long as the grill has not cooled down sufficiently to be touched safely.

  • Page 11: Operation With Griddle Plate

    4. Operation with griddle plate Note: make sure before switching on that there are lava stones in the appliance. The lava stones guarantee an even, intensive transfer of heat. Only operate the grill with lava stones. Remove both grid irons. Place the griddle plate on the grill, so that the feet of the griddle plate lie on the lava stone container.

  • Page 12: Settings Table

    5. Settings Table The specified grilling times serve as guide values only. Item Level* Grilling time* Remarks Meats Beef steak 11 to 12 4 - 5 min. each side Turn, when the steak comes off easily from the grid iron. The steak is medium, when juice forms on the top.

  • Page 13: Tips For Grilling

    6. Tips for grilling • The grilled result depends on the nature and • Meat is medium if juice leaks out of the surface of quality of the meat and on your personal taste. a steak (pink inside and crispy brown on the outside).
  • Page 14 Beef Poultry Tender cuts of beef are particularly suitable. If you All kinds of poultry can be cooked on the grill. For have not had much grilling experience, you should guinea fowl, small pigeons and quail, it is better to practice with pieces of meat such as rump steak or brush a little fat onto the skin.

  • Page 15: Cleaning And Care

    7. Cleaning and care The lava stones must be replaced when they are Note: to avoid jeopardising the electrical safety of black. In this case, the lava stones have become the appliance, do not use high-pressure or steam saturated with grease. Fat might ignite if too much jet cleaning devices –...

  • Page 16: Maintenance

    If the power supply is functioning correctly, but your appliance still does not work, please contact your Gaggenau dealer who will provide you with the address and telephone number of your nearest manufacturer’s authorized service agent or contact Gaggenau USA on (800) 828-9165.

  • Page 17: Installation

    Important notes on installation isolating device with a contact gap of at least 3 mm This appliance can be combined with all Gaggenau must be installed (e.g. domestic fuse). Vario 400 Series appliances.

  • Page 18: Preparing The Cabinet

    Preparing the cabinet The building back wall (1) and building side walls (2 / 3) must consist of non combustible material or must be protected by no less than -inch-thick Installation A flame-retardant millboard covered with no less than No. 28 MSG sheet steel, 0.015-inch-thick stainless steel, 0.024-inch-thick aluminimum, or 0.020-inch- thick copper.
  • Page 19 Preparing the cabinet • Cut out the recess for one or several Vario appliances in your worktop. Proceed as indicated on the installation sketch. The installation sketch contains the measurements of the space required for the trim between the appliances. Several appliances can also be installed in individual recesses, as long as a minimum clearance of 50 mm (2 ´...

  • Page 20: Installing The Control Panel

    Installing the control panel Note: only install control panel with appliance of the corresponding type. • Before connecting the grill, make sure the electricity is switched off at fuse point! • Before installation, remove all styrofoam packaging from the control knobs and peel off the protective film behind the luminous discs.

  • Page 21: Installing The Grill

    Installing the grill • Firmly plug the connecting cable in the grill and in the control panel (the plugs must lock into place). • Turn the clamping screws to the side. Insert the grill with the control panel on the front into the cut-out and align it.

  • Page 22: Fitting The Appliance Cover

    Fitting the appliance cover • The securing brackets are already fitted on the base. • Place the appliance cover on the brackets in upright position and screw it down using the pre-mounted grub screws. • Close the appliance cover. It must lie evenly on the appliance.
  • Page 24 GAGGENAU HAUSGERÄTE GMBH 5551 McFADDEN AVENUE CARL-WERY-STR. 34 · 81739 MÜNCHEN HUNTINGTON BEACH, CA 92649 GERMANY Y (0 89) 45 90 - 03 Y (800) 828-9165 · FAX (714) 901-0979 FAX (0 89) 45 90 - 23 47 www.gaggenau-usa.com...
