Summary of Contents for Gaggenau VI 411

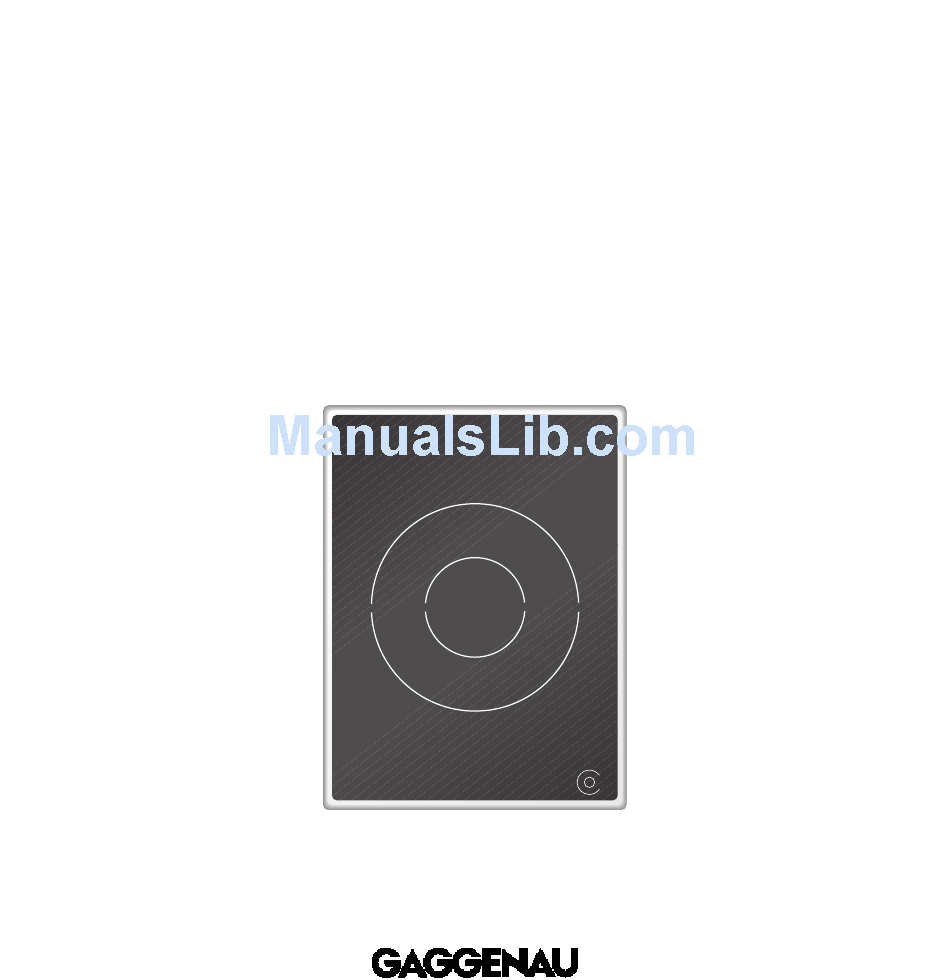

- Page 1 Operating and assembly instructions VI 411 Induction wok...
-
Page 3: Table Of Contents
VI 411 1. Important Notes Page 3-4 For your safety Page 3 Operating for the first time Page 4 About use Page 4 The advantages of cooking by induction Page 4 2. Features Page 5 Features Page 5 Special accessories Page 5 3. - Page 4 Congratulations on buying your new “Vario” appliance. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important notes on safety and operation. These will serve to ensure your personal safety and the lasting value of your appliance.
-
Page 5: Important Notes
1. Important Notes For your safety Do not store any substances that are sensitive to high temperatures, or which pose a fire hazard Do not operate the appliance if it is damaged. (e.g. cleaning agents or spray cans), in drawers or cupboards under the appliance. -
Page 6: Operating For The First Time
Gaggenau customer service. order. The serial number of the appliance can be found on The advantages of cooking by the quality control slip which is included with these instructions. -
Page 7: Features
2. Features Features 1 Cooking zone Ø 260 mm (3500 W) for pan sizes of Ø 120 - 260 mm 2 Display panel with indicator light, pot recognition and residual heat display 3 Control knob Special accessories You can order the following special accessory: WZ 400-000 Wok stand WP 400-000 Wok VV 400-000 Connecting trim... -
Page 8: Operation
3. Operation Switching on Switching on Press down the control knob and turn it left or right to the required position (1 -12). The luminous disc behind the control knob and the indicator light on the display panel light up, as long as the cooking zone is switched on. -
Page 9: Visual Signals
Visual signals luminous disc behind indicator light operating mode the control knob on the cooker appliance is OFF appliance is ON, pan recognized, normal use appliance is ON, no pan recognized appliance is OFF , residual heat display overheating protection holiday safeguard, faulty installation (Connecting cable between the appliance and the control panel is not plugged in) -
Page 10: Settings Table
4. Settings table Settings table Cooking Cooking method Examples level Boiling Water Searing Meat Heating Fat, liquids Boiling Soup, sauce Blanching Vegetables 11 - 8 Roasting Meat, fish, potatoes 7 - 6 Browning Flour, onions Roasting Almonds, breadcrumbs Baking Pancakes, egg dishes Boiling in open pot Liquids 6 - 5... -
Page 11: Suitable Cooking Receptacles And How To Use Them
5. Suitable cooking receptacles and how to use them Only ferromagnetic receptacles are suitable for cooking by Induction. To see if your receptacles are suitable, make sure that they are attracted to a magnet. Receptacles made of enamelled steel, cast iron or special stainless-steel receptacles (designed for cooking by induction) can all be used. -
Page 12: Cooking In The Wok
Use the wok stand only on the induction wok can be stirred and turned faster and with greater VI 411. The wok stand should not be used on a ease than in a conventional frying pan. Thanks to normal glass ceramic cooking hob. -
Page 13: Cleaning And Care
Immediately remove such food using the glass scraper. Clean the hob with a damp, soft cloth or kitchen paper and the Gaggenau glass ceramic cleaner or Iridiscent discoloration can be caused by the bases similar cleaner suitable for glass ceramic cooktops. -
Page 14: Maintenance
If the power supply is functioning correctly, but your appliance still does not work, please contact your dealer or your local Gaggenau customer service agency. Specify the appliance type. The serial number and type of the appliance can be found on the quality control slip which is included with these instructions. -
Page 15: Installation
Technical Data Total connected load: 3 500 W / 220-240 V Important notes on installation This appliance can be combined with all Gaggenau There must be a gap of at least 20 mm at the side Vario 400 Series appliances. -
Page 16: Preparing The Cabinet
Preparing the cabinet • Cut out the recess for the hob in your worktop. Proceed as indicated on the installation sketch. The installation sketch contains the measurements of the space required for the trim between the appliances. Several appliances can also be installed in individual recesses, as long as a minimum clearance of 50 mm is kept to between the appliances. -
Page 17: Installing The Control Panel
Installing the control panel Note: only install control panel with appliance of the corresponding type. Before connecting the appliance, make sure the electricity is switched off at fuse point! • Before installation, remove all styrofoam packaging from the control knob and peel off the protective film behind the luminous disc. -
Page 18: Installing The Cooktop
Installing the cooktop • Firmly plug the connecting cable in the cooktop and in the control panel (the plugs must lock into place). • Turn the clamping screws to the side. Insert the hob with the control panel on the front into the cut-out and align it. - Page 20 GAGGENAU HAUSGERÄTE GMBH CARL-WERY-STR. 34 · D - 81739 MÜNCHEN Y (0 89) 45 90 - 03 FAX (0 89) 45 90 - 23 47 www.gaggenau.com...
