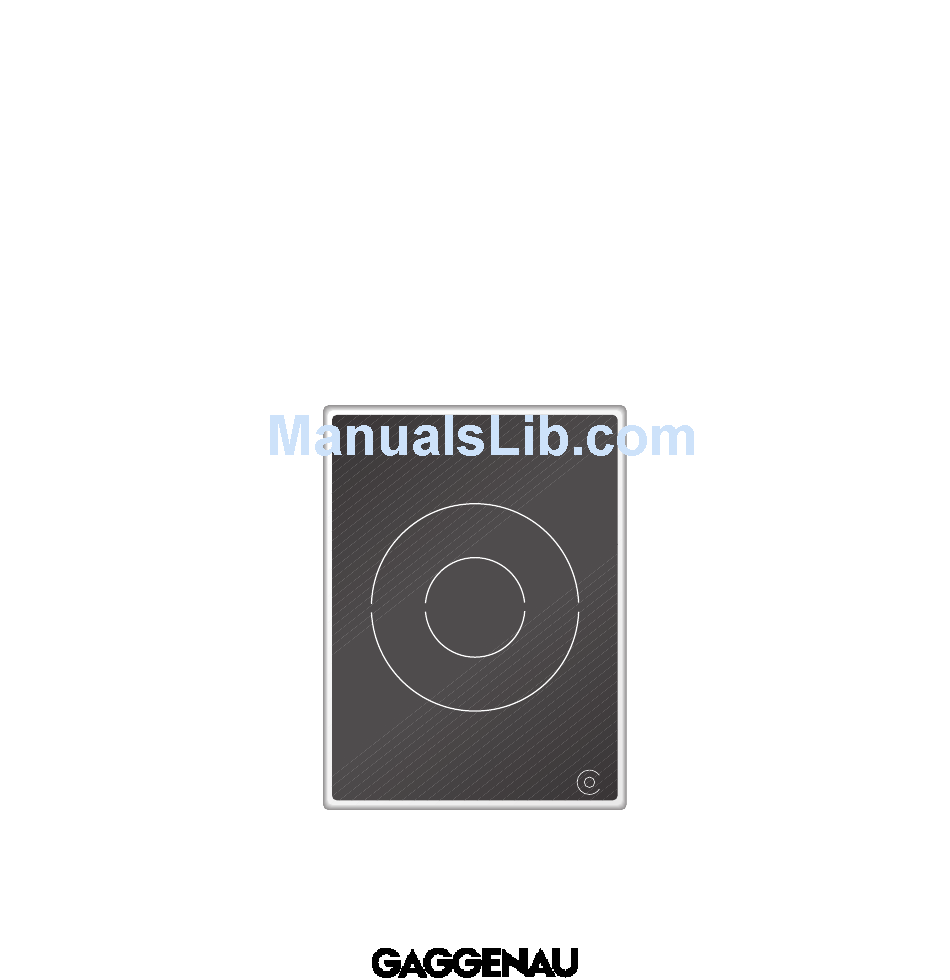

- Page 1 Operating and Assembly Instructions VI 411-610 Induction Wok...
-
Page 3: Table Of Contents
VI 411-610 Important safeguards Page 3-4 1. Important notes Page 5-6 For your safety Page 5 Operating for the first time Page 6 About use Page 6 The advantages of cooking by induction Page 6 2. Features Page 7 Features... - Page 4 Congratulations on buying your new “Vario” appliance. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important notes on safety and operation. These will serve to ensure your personal safety and the lasting value of your appliance.
-
Page 5: Important Safeguards
Important safeguards Read All Instructions. g) Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical or foam-type extinguisher. 2. To eliminate the risk of burns or fire by reaching over the heated surface units, cabinet storage h) Use Only Dry Potholders –... - Page 6 6. CAUTION: Do not store items of interest to children in cabinets above a range. Children climbing on the appliance to reach items could be seriosly injured. 7. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color.
-
Page 7: Important Notes
1. Important notes For your safety There are fans beneath the cooking hob. Warning! Small objects or pieces of paper kept beneath the Do not operate the appliance if it is damaged. cooking hob may either damage the fan if they are sucked into it or affect the cooling process. -
Page 8: Operating For The First Time
Gaggenau customer service. order. The serial number of the appliance can be found on The advantages of cooking by the quality control slip which is included with these instructions. -
Page 9: Features

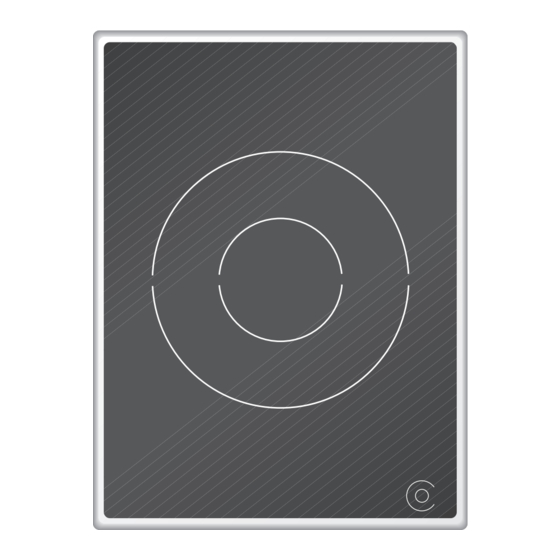

2. Features Features 1 Cooking zone Ø 10 ´ ´ (3500 W) for pan sizes of Ø 5 ´ ´ - 10 ´ ´ 2 Display panel with indicator light, pot recognition and residual heat display 3 Control knob Special accessories You can order the following special accessory: WZ 400-000 Wok stand WP 400-000 Wok... -
Page 10: Operation
3. Operation Switching on Switching on Press down the control knob and turn it left or right to the required position (1 -12). The luminous disc behind the control knob and the indicator light on the display panel light up, as long as the cooking zone is switched on. -
Page 11: Visual Signals
Visual signals luminous disc behind indicator light operating mode the control knob on the cooker appliance is OFF appliance is ON, pan recognized, normal use appliance is ON, no pan recognized appliance is OFF , residual heat display overheating protection holiday safeguard, faulty installation (Connecting cable between the appliance and the control panel is not plugged in) -
Page 12: Settings Table
4. Settings table Settings table Cooking Cooking method Examples level Boiling Water Searing Meat Heating Fat, liquids Boiling Soup, sauce Blanching Vegetables 11 - 8 Roasting Meat, fish, potatoes 7 - 6 Browning Flour, onions Roasting Almonds, breadcrumbs Baking Pancakes, egg dishes Boiling in open pot Liquids 6 - 5... -
Page 13: Suitable Cooking Receptacles And How To Use Them
5. Suitable cooking receptacles and how to use them Only ferromagnetic receptacles are suitable for cooking by Induction. To see if your receptacles are suitable, make sure that they are attracted to a magnet. Receptacles made of enamelled steel, cast iron or special stainless-steel receptacles (designed for cooking by induction) can all be used. -
Page 14: Cooking In The Wok
The wok and wok stand can be obtained from your You can fry, steam, deep fry, stew and cook normally. Gaggenau dealer. The wok pan has a rounded base Stir frying is the special cooking method for the and can only be used together with the wok stand. -
Page 15: Cleaning And Care
Immediately remove such food using the glass scraper. Clean the hob with a damp, soft cloth or kitchen paper and the Gaggenau glass ceramic cleaner or Iridiscent discoloration can be caused by the bases similar cleaner suitable for glass ceramic cooktops. -
Page 16: Maintenance
If the power supply is functioning correctly, but your appliance still does not work, please contact your Gaggenau dealer who will provide you with the address and telephone number of your nearest ma- nufacturer’s authorized service agent or contact Gaggenau USA on (800) 828-9165. -
Page 17: Installation
Important notes on installation There must be a gap of at least 20 mm ( ´ ´ ) at the This appliance can be combined with all Gaggenau side between the appliance and any walls or Vario 400 Series appliances. -
Page 18: Preparing The Cabinet
Preparing the cabinet The minimum spaces that must be maintained between the appliance cooking surface and the ho- rizontal surface above the cooking top shall be: A = 30 inches (762 mm) minimum clearance bet- ween the top of the cooking surface and the bottom of an unprotected wood or metal cabinet;... -
Page 19: Preparing The Cabinet
Preparing the cabinet • Cut out the recess for the hob in your worktop. Proceed as indicated on the installation sketch. The installation sketch contains the measurements of the space required for the trim between the appliances. Several appliances can also be installed in individual recesses, as long as a minimum clearance of 50 mm (2 ´... -
Page 20: Installing The Control Panel
Installing the control panel Note: only install control panel with appliance of the corresponding type. Before connecting the appliance, make sure the electricity is switched off at fuse point! • Before installation, remove all styrofoam packaging from the control knob and peel off the protective film behind the luminous disc. -
Page 21: Installing The Cooktop
Installing the cooktop • Firmly plug the connecting cable in the cooktop and in the control panel (the plugs must lock into place). • Turn the clamping screws to the side. Insert the hob with the control panel on the front into the cut-out and align it. - Page 24 GAGGENAU HAUSGERÄTE GMBH 5551 McFADDEN AVENUE CARL-WERY-STR. 34 · 81739 MÜNCHEN HUNTINGTON BEACH, CA 92649 GERMANY Y (0 89) 45 90 - 03 Y (800) 828-9165 · FAX (714) 901-0979 FAX (0 89) 45 90 - 23 47 www.gaggenau-usa.com...
