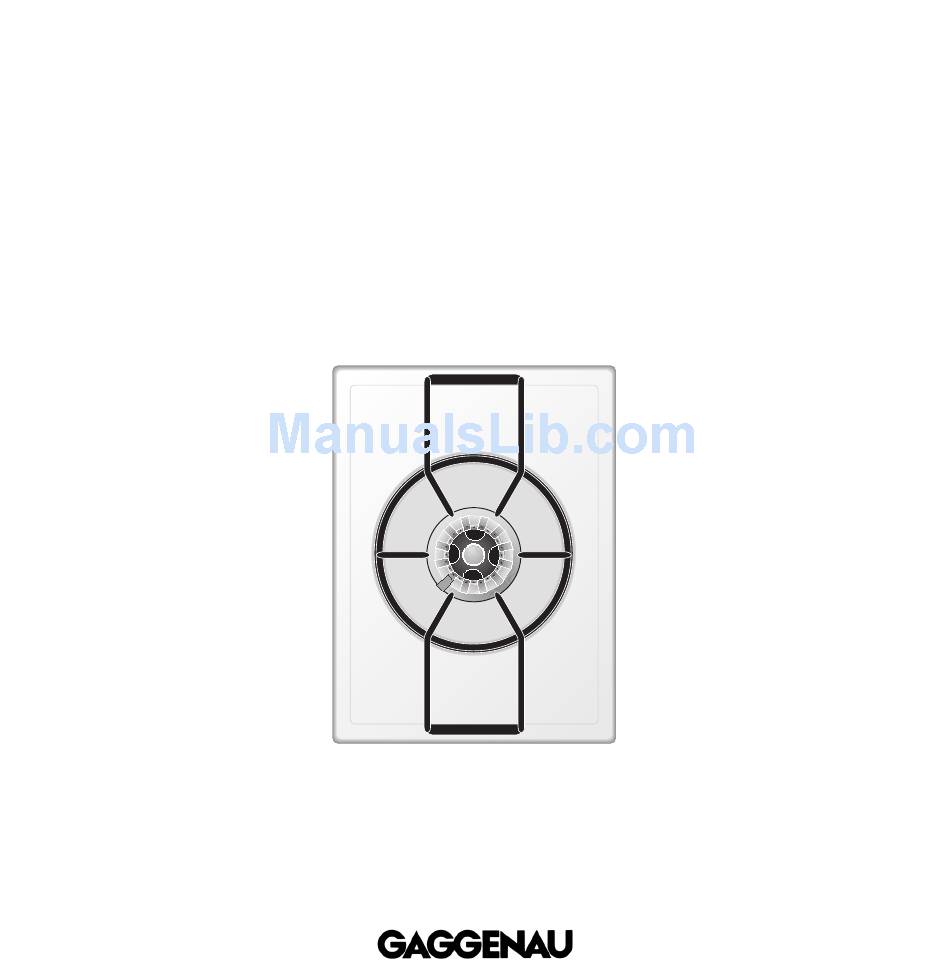

- Page 1 Operation, Maintenance and Installation Manual VG 441-110/110F VG 441-210 Gas Wok...
-
Page 3: Table Of Contents
VG 441-110/110F VG 441-210 1. Important Notes Page 3-4 For Your Safety Page 3 Operating for the First Time Page 3 About Use Page 4 2. Features Page 5 Features of the Appliance Page 5 Control Knob Page 5 Burner Parts Page 5 3. - Page 4 Congratulations on buying your new “Vario” appliance. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important notes on safety and operation. These will serve to ensure your personal safety and the lasting value of your appliance.
-
Page 5: Important Notes
1. Important Notes For Your Safety Operating for the First Time You must not operate the appliance if it is damaged. Remove the packaging from the appliance and dispose of it according to local regulations. Be When connecting electrical appliances in the proxi - careful to remove all accessories from the mity of the appliance, make sure that connec ting packaging. -
Page 6: About Use
Use pots and In the event of malfunctions, please inform your pans with thicker bottoms because heat distribution specialist dealer or your nearest Gaggenau after- is particularly improved in the low setting. Using sales service. -
Page 7: Features
2. Features Features of the Appliance 1 Ventilation openings 2 Large (Wok) burner 5 kW (VG 441-110/110F) 6 kW (VG 441-210) 3 Pot grid Control Knob Simmering Cooking levels 1 - 12 Burner Parts 1 Burner head cover 2 Burner ring... -
Page 8: Operating Principle
3. Operating Principle The appliance features one-hand operation, flame detection and automatic re-ignition. The ignition is activated when the control knob is turned. Should the flame go out during operation, the appliance will automatically re-ignite the burner. 0 - OFF During a disturbance, the appliance will cut off the gas supply as a safety measure, to prevent unburned gas escaping. -
Page 9: Operation
4. Operation Switching on Only light the burner if all burner parts are dry, and • Place a suitable pot or a pan on the cooking assembled correctly. Otherwise, malfunctions may position. occur or the appliance may switch off. • Press down the control knob and turn it to the required position. -
Page 10: Settings Table
5. Settings Table Cooking Cooking method Examples level Heating Water, clear soup Blanching Vegetables 10 – 12 Searing Meat Roasting at high temperature Meat, potatoes Roasting in a wok Meat, vegetables Deep frying French fries, pastries 5 – 8 Boiling in open pot Liquids, pasta Roasting at medium temperature Poultry, fish... -
Page 11: Cookware Recommendations
6. Cookware Recommendations Pots with a diameter of less than 160 mm or more VG 441 Recommended Minimum than 320 mm should not be used. When using large pot diameter pot diameter pots, pay attention to keeping to a minimum distance of 50 mm between the cooking vessel and Wok Burner 240 - 320 mm... -
Page 12: Wok Cookware Recommendations
7. Wok Cookware Recommendations The Wok and Accessories Cooking in the Wok (not included in the scope of delivery) You can fry, steam, deep fry, stew and cook normally. – The round-bottom wok is the ideal wok for your Stir frying is the special cooking method for the gas cooker. -
Page 13: Cleaning And Care
8. Cleaning and Care The burner (burner head cover and burner ring) burner assembly wok burner will change the color during operation and become darker. This change in color will not influence the burner head use-value. cover Please thoroughly clean the appliance before operating it for the first time and after every use. - Page 14 (Order and polish the whole cooktop after cleaning No. 310631) from your Gaggenau to get an even stainless steel surface. dealer. Never allow food stains or salt to remain Caution: no liquid should enter on stainless steel for any length of time.
-
Page 15: Maintenance
14 to see, if you can rectify the problem yourself. If your appliance still does not work, please contact your dealer or your local Gaggenau customer service agency. Specify the appliance type (see rating plate). Repairs may only be carried out by authorised technicians, in order to guarantee the safety of the appliance. -
Page 16: Visual Signals
10. Visual Signals Luminous disc Signification Cause / Remedy behind the control knob lights OFF appliance is OFF lights constantly appliance is ON normal use slow flashing residual heat The appliance is too hot to be touched display safely. fast flashing safety deactivation Turn control knob to 0 and then switch on again if required. -
Page 17: Technical Data / Nozzle Table
11. Technical Data / Nozzle Table Technical data (gas) (VG 441-210) Gas connection: R 1/2’’ union nut for R 1/2’’ bracket to DIN 1999, conical-cylindrical Burners: Full burning (natural gas) 6 kW Low burning 0.3 kW Simmering 0.15 kW Technical data (electrical) Rated consumption 15 W Voltage... - Page 18 Rated consumption 15 W Voltage 220-240 V 50-60 Hz Frequency Technical modifications reserved. Nozzle table wok burner - VG 441-110/110F Countries BE CH CZ DK AT CH DE ES FI FR GB GR HU IE IS IT LU NO PL...
-
Page 19: Installation Instructions
12. Installation Instructions Important Notes Please observe the general safety notes and the The appliance may be installed in kitchen important information in chapter 1. combinations made of wood or similar combustible materials without taking additional measures. The installing technician is responsible for The rear wall must consist of non-combustible perfect functioning of the appliance at its installa - material. -
Page 20: Connecting The Appliance
Connecting the Appliance Gas connection The gas connection must be in a location that permits access to the shut-off valve and which, if applicable, is visible after opening the door of the cabinet. By means of the included R 1/2“ connection bracket (on the appliance end) with the affiliated washer, the appliance must be connected to a fixed con - nec ting line or a gas safety hose to DIN 3383... -
Page 21: Preparing The Cabinet
Preparing the Cabinet • Cut out the recess for the hob in your worktop. Proceed as indicated on the installation sketch. The installation sketch contains the measurements of the space required for the trim between the appliances. Several appliances can also be installed in individual recesses, as long as a minimum clearance of 50 mm is kept to between the appliances. -
Page 22: Installing The Control Panel
Installing the Control Panel Note: only install control panel with appliance of the corresponding type. Before connecting the appliance, make sure the electricity is switched off at fuse point! • Before installation, remove all styrofoam packaging from the control knob and peel off the protective film behind the luminous disc. -
Page 23: Installing The Cooker
• Turn the clamping screws to the side. Insert the hob with the Gaggenau logo on the front into the cut-out and align it. Note: do not stick the hob onto the worktop with silicone. -
Page 24: Nozzle Replacement
Nozzle Replacement Changing over to a different gas type Only an authorised Gaggenau after-sales service technician is permitted to change this appliance over to a different gas type. The nozzles needed for the gas type to be set are available as a conversion kit. Please specify the appliance type and the required gas type. - Page 25 Replacing the main burner nozzles of the outer main nozzle wok-burner • Unscrew the Wok burner from the trough (Torx T20). Loosen locking screw from the air regulation bush. Fully push in the air regulation bush. Detach the safety springs on the supply line. Leave the electrode connected.
- Page 28 GAGGENAU HAUSGERÄTE GMBH CARL-WERY-STR. 34 · D - 81739 MÜNCHEN Y (0 89) 45 90 - 03 FAX (0 89) 45 90 - 23 47 www.gaggenau.com...
