- Page 1 Operating and Assembly Instructions VC 230-613 Glass ceramic cooking range...
-
Page 2: Table Of Contents
VC 230-613 Preface Important safeguards Page 3-4 1. Important safety notes Page 5-6 1.1 For your safety Page 5 1.2 Operating for the first time Page 6 1.3 Caution Page 6 2. Structure and operating principle Page 7 2.1 Structure Page 7 2.2 Special accessories... -
Page 3: Preface
Preface Cooking with your new glass-ceramic cooker will be even more fun than before. The appliance offers you the following advantages – The cooker features SuperQuick cooking zones. – Thanks to the novel installation method implemented, installation is child's play! To ensure that you will be able to use this appli- ance in all its diversity, read through the operating and assembly instructions conscientiously before... -
Page 4: Important Safeguards
Important Safeguards Read All Instructions. h) Use Only Dry Potholders – Moist or damp potholders on hot surface may result in burns from steam. Do not let potholders touch hot 2. To eliminate the risk of burns or fire by reaching heating elements. - Page 5 6. CAUTION: Do not store items of interest to children in cabinets above a range. Children climbing on the appliance to reach items could be seriosly injured. 7. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color.
-
Page 6: Important Safety Notes
1. Important safety notes 1.1 For your safety No warranty claims can be lodged for any Do not operate the appliance if it is damaged. damage resulting from failure to observe these The appliance must only be connected by an instructions. -
Page 7: Operating For The First Time
Pay attention to the fact that there are accessories do with the power supply, please contact your in the base of the packaging. specialist dealer or your local Gaggenau after- Keep packaging elements out of the reach of sales service. -
Page 8: Structure And Operating Principle

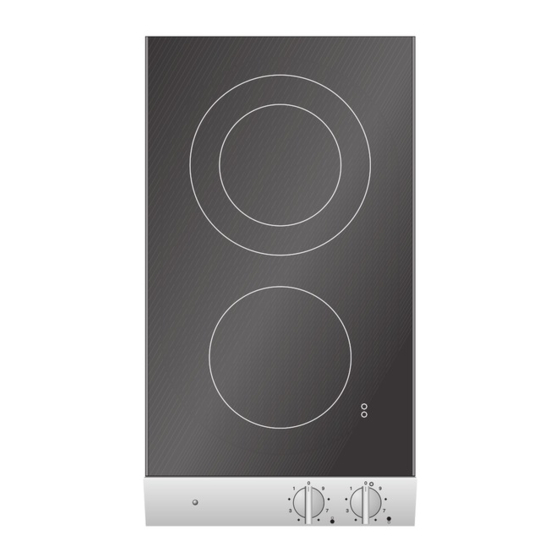

2. Structure and operating principle 2.1 Structure 1 Pilot light 2 Control knob for front cooking zone 3 Control knob for rear cooking zone 4 Residual heat display 5 SuperQuick cooking zone Ø 140 mm / 5 ” (1200 W) 6 SuperQuick cooking zone Ø... -
Page 9: Operation
3. Operation 3.1 Switching on /off Switching on: Front cooking zone Switching on: Turn control knob 2 to the left or right to the required cooking level (1-9). (Fig. 4) Rear cooking zone Turn control knob 3 to the left to the required cooking level (1-9). -
Page 10: Operating With The Combination Function
3.2 Operating with the combination function Switching on the combination function – Turn control knob 3 (rear cooking zone) to the left to the (Combination) position on the left and then to the cooking level you require. Switching off combination: –... -
Page 11: Settings Table
3.3 Settings Table Cooking Cooking method Examples level Boiling Water Searing Meat Heating Fat, liquids Boiling Soup, sauce Blanching Vegetables 8 - 6 Roasting Meat, fish, potatoes 7 - 5 Browning Flour, onions Roasting Almonds, breadcrumbs Baking Pancakes, egg dishes Boiling in open pot Liquids 6 - 5... -
Page 12: Cleaning And Care
If the power supply is functioning correctly, but your all repair work. appliance still does not work, please contact your Gaggenau dealer who will provide you with the address and telephone number of your nearest manufacturer’s authorized service agent or contact Gaggenau USA on (800) 828-9165. -
Page 13: Assembly Instructions
6. Assembly instructions 6.1 Important notes on installation Pay attention to the "Important notes" (Chapter 1). Damages caused by failure to observe these installation instructions cannot be recognised. The appliance must only be installed by an authorised specialist, paying attention to the There should be a distance of at least 20 mm ( ”) relevant regulations of the power supply companies... -
Page 14: Electrical Connection
6.2 Electrical connection Rated power consumption: 3.0 kW Note: when installing a shelf, observe a distance of at Note: least 20 mm ( ”) from the bottom edge of the if there is a need for an intermediate cupboard wall housing trough to the shelf or the next combustible under the hob, cut out the recess so that the trough item of furnishing. - Page 15 The minimum spaces that must be maintained between the appliance cooking surface and the horizontal surface above the cooking top shall be: A = 30 inches (762 mm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet; or A = 24 inches (600 mm) minimum when bottom of wood or metal cabinet is protected by no less than -inch-thick flame-retardant millboard covered...
-
Page 16: Installation And Removal
6.3 Installation and removal Installation – Produce the recess for one or several Vario appliance(s) in your worktop. Proceed as " indicated on the installation sketch and the dimension table. The dimension table contains details of the space requirement for the trim between the appliances. - Page 17 GAGGENAU HAUSGERÄTE GMBH 780 DEDHAM STREET CARL-WERY-STR. 34 · 81739 MÜNCHEN CANTON, MA 02021 GERMANY Y (0 89) 45 90 - 03 Y 800.828.9165 FAX (0 89) 45 90 - 23 47 www.gaggenau-usa.com...
