Emulex NC551i Datasheet

D A T A S H E E T
Dual Port 10GbE
Integrated FlexFabric Adapters
HP NC551i Converged FlexFabric Adapter
HP NC553i Converged FlexFabric Adapter
SIMPLIFIED
NETWORKING,
TRUSTED SAN
INTEROPERABILITY
AND INCREASED
BUSINESS
AGILITY

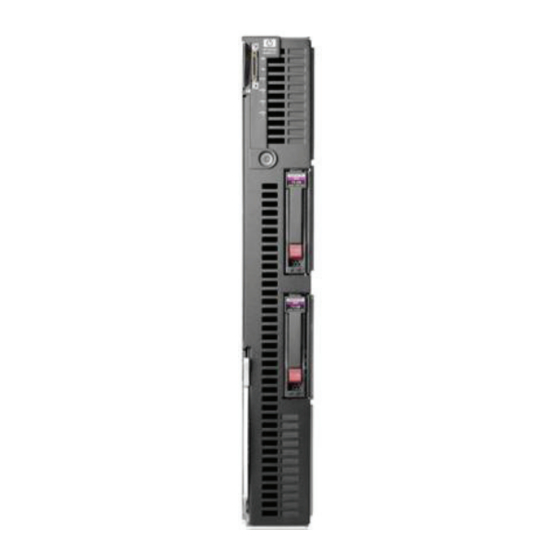

BL685c G7 (shown)
BL465c G7
BL460c G7
(shown)
BL490c-G7
HP NC551i for ProLiant
AMD G7 servers and
HP NC553i for ProLiant
Intel G7 servers
Overview
Emulex dual port 10Gb Ethernet (10GbE) Integrated
FlexFabric Adapters are available as a converged
Universal LAN on Motherboard (ULOM) for HP c-Class
ProLiant G7 BladeSystems:
NC551i - BL685c and BL465c ProLiant AMD G7
n
blade servers
NC553i - BL460c and BL490c ProLiant Intel G7
n
blade servers
Based on the Emulex OneConnect
Converged Network Adapter (UCNA) technology, these
integrated adapters support Transmission Control
Protocol/Internet Protocol (TCP/IP) and Fibre Channel
over Ethernet (FCoE) or accelerated iSCSI connectivity
concurrently with high-performance protocol offloads
that optimize server efficiency and maximize server
virtualization ratios.
Emulex OneConnect UCNA technology fully
supports HP's FlexFabric Converged Infrastructure,
a next-generation, highly scalable data center
fabric architecture and a technology layer in the
HP Converged Infrastructure architecture. The
combination of HP's new ProLiant G7 server
blades with Emulex UCNA technology and the new
HP Virtual Connect FlexFabric module simplifies,
consolidates and virtualizes the server edge for HP
BladeSystem customers.
Optimized Network Connectivity
Lower cost—The HP FlexFabric adapters can save
up to 98% on adapter cards, switch ports, and cables
needed to support network and storage traffic.
Lower power and cooling—The HP FlexFabric
adapters can reduce the number of adapter cards
and switches, resulting in savings up to 40% for
power and cooling.
Support for converged networks with HP
Virtual Connect—HP Virtual Connect provisions
Local Area Network (LAN) and Storage Area
Network (SAN) connectivity for BladeSystem
server blades through administration of Media
Key Features
One platform for network and storage
connection
Simplifies I/O hardware choices for
n
IT managers
Multiple protocol offloads for
optimum server efficiency
Stateless TCP/IP with Flex-10 support
n
TCP Offload Engine (TOE)
n
Universal
™
FCoE or accelerated iSCSI
n
Provides (up to) eight connections to network
n
and storage without the need for add-in
mezzanine cards
Superior performance
Full 20Gb/s bidirectional Ethernet
n
bandwidth per port
Up to 800K I/Os per second (IOPS) for FCoE
n
Energy-efficient design
Industry-leading performance per watt
n
Complements data center "green" initiatives
n
Easy to deploy and manage
One management console for network and
n
storage adapters
HP Insight Control suite with enhanced
n
Integrated Lights-Out 3 (iLO 3) remote
management
Centralized enterprise I/O management with
n
Emulex OneCommand
Key Benefits
Optimized for convergence
Maximizes I/O consolidation with high-
n
performance 10GbE ports
One network and management infrastructure
n
reduces capital (CapEx) and operating
expenses (OpEx)
Leverages existing IT investments
n
Enterprise-ready
Hardware parity, CRC, ECC and other
n
advanced error checking
Backed by field-proven HP and Emulex
n
reliability and support
C O N N E C T I V I T Y
Manager
™
