ANY ELECTRICAL WORK PERFORMED MUST MEET NFPA 70-NEC AND ANY LOCAL CODES THAT APPLY.

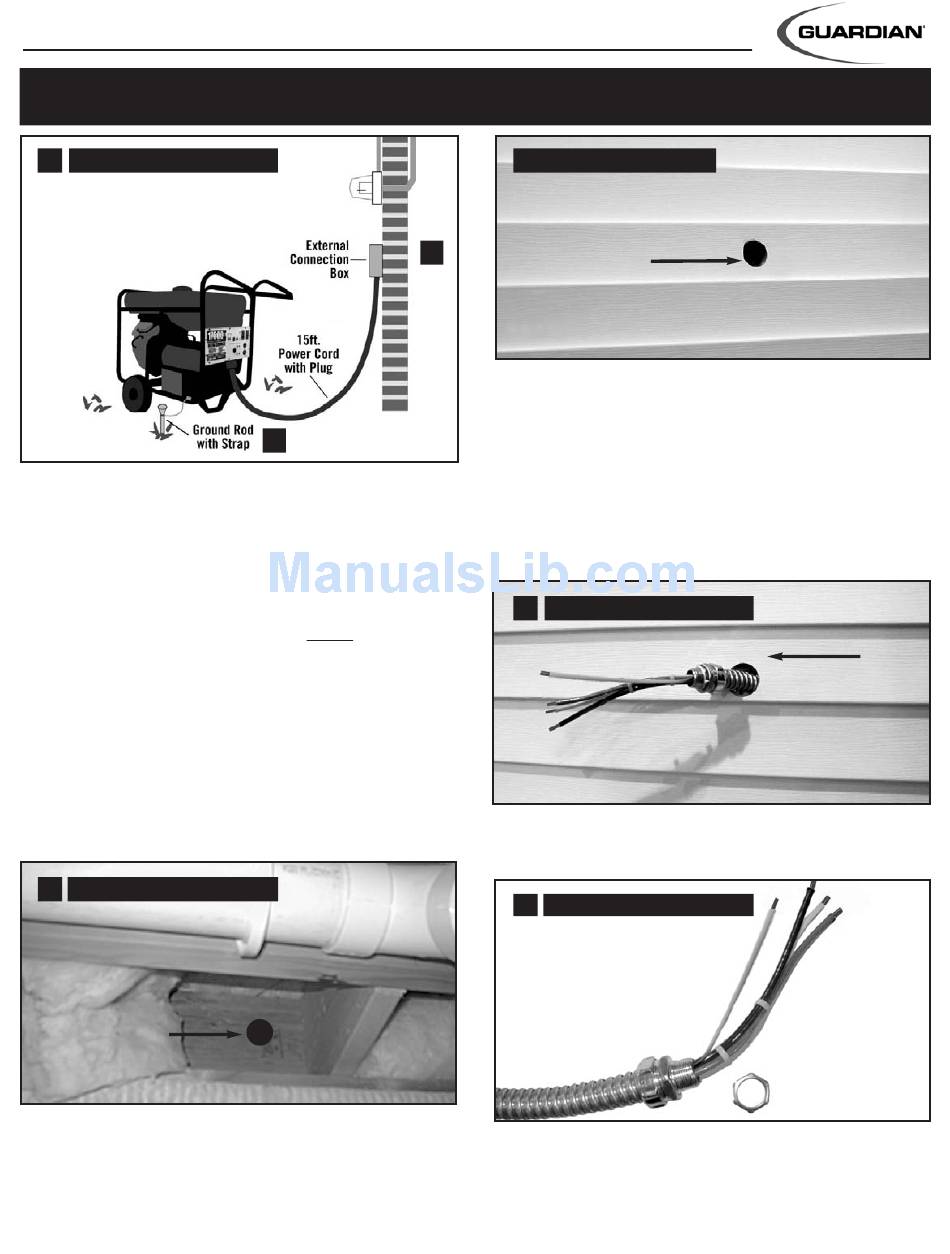

1 Portable Generator Placement
Generator should be placed as far away from
house as power cord will allow. It is understood
that the cord should not be pulled tight and it
will lay along the ground between the external
connection box and generator panel.
FIGURE A
1. PLAN THE LOCATION OF YOUR GENERATOR
(Fig. A) shows the GUARDIAN Ultra Source 17,5000
watt portable generator placed outside the home and
connected to the weather protective external box. The
ground rod and ground strap show a suggested
location only. When fully installed the ground rod will
not protrude above ground level. NOTE: Do not place
the generator directly under a window.
Select an area outside of your home about 10 feet away
where you can easily transport the portable generator
to and from. Keep in mind that the generator must have
free air flow for proper operation and to ensure there is
no possibility for exhaust gases to build up.
2. Drive an 8-foot grounding rod into the ground to grade
(so that no part is exposed above ground).
3 Drill Hole Through House
1-3/4"
Diameter Hole
3. Determine where the user supplied conduit will pass
through the house from inside to outside. When you
are certain you have clearance on each side of the wall,
drill a small pilot hole through the wall to mark the
location.
Section 5—Installation for Manual Transfer Switch
THESE INSTRUCTIONS ARE TO SERVE AS A GUIDE ONLY!
3
2
Drill Pass Through Hole
1-3/4"
Diameter Hole
With hole saw, drill hole through the sheathing and siding.
4. Measure the lengths of wire and conduit needed to
reach the Manual Transfer Switch. Allow extra length
to clear the joists/studs. While adhering to all local
electrical codes, route the customer supplied conduit
and wiring along ceiling/floor joists and wall studs to
the location where the conduit will pass through the
wall to the exterior of the house.
5 Feed Conduit and Wires
5. From the inside of the house, feed the end of the
customer supplied conduit through the wall to outside.
6 Threaded Lock Nut
6. Remove the threaded lock nut from the conduit
coupling.
Silicone
Caulk
