After Power-On
After power-on the last stored data will be tested. In case of a storage failure a "reset" is
made, with the display indicating reset. After that, or in case of valid data, status reports are
indicated in two steps, and all status LED's are lit up.

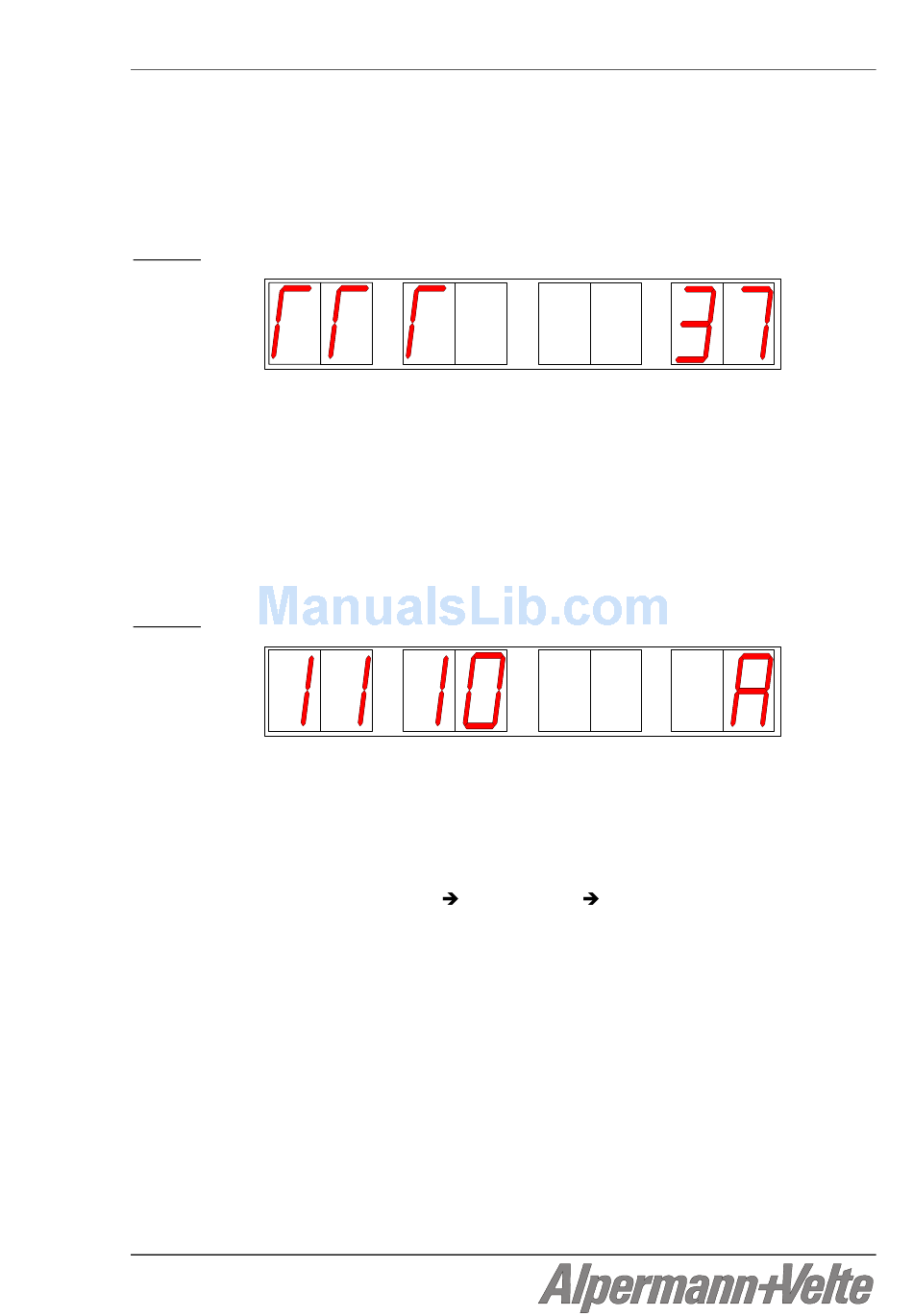

Status 1:
Digit 8
Digits 8, 7 and 6 indicate the type of the unit.
Digits 5 and 4 indicate a special version; with standard version these digits are blank.
Digit 3 indicates the frame rate of the system: blank = 25 (standard),
Digits 2 and 1 indicate the revision of the installed firmware.
Status 2:
Digit 8
Digit 8:
=1 if the LTC reader (software) is built in, otherwise =0.
Digit 7:
=1 if the option GPI is built in, otherwise =0.
Digit 6:
=1, if the option DCF77 or GPS is built in, otherwise =0.
Digit 5:
with digit 6 =0 this field is blank.
with digit 6 =1: marks the transfer protocol of the DCF77/GPS receiver
Digit 4:
not used.
Digit 3:
not used.
Digit 2:
= 1 if the option VITC is built in, otherwise = 0.
Digit 1:
hexadecimal number (0..F) indicating the built-in modules:
bit 0:
bit 1: =1 if a RS485 is built in, otherwise =0.
bit 2: =1 if colour framing is built in, otherwise =0.
bit 3: =1 if an LTC reader (hardware) is built in, otherwise =0.
Operating Manual AV-MTD G 30 TTT
Digit 7
Digit 6
Digit 5
4 = 24,
3 = 30,
d = 30 Drop.
Digit 7
Digit 6
Digit 5
(e.g. = 0
Meinberg, =1
Digit 4
Digit 3
Digit 2
Digit 3
Digit 2
Digit 4
Hopf).
Page 11
Digit 1
Digit 1
