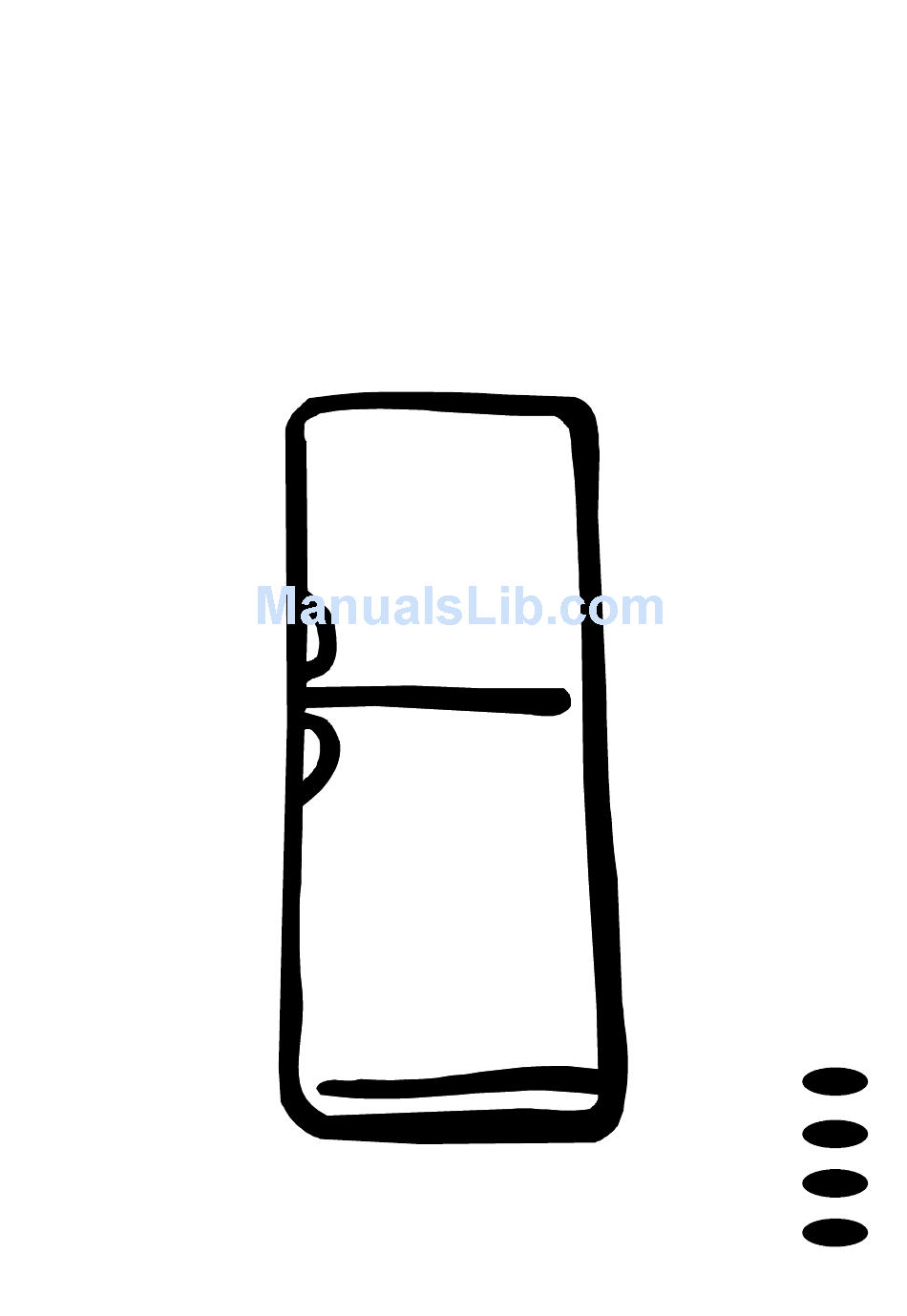

K û h l -- / G e f r i e r k o m b i n a t i o n / F r i d g e -- f r e e z e r / F r i g o f í c o -- C o n g e l a d o r /
R é f r i g é r a t e u r -- C o n g é l a t i o n
NL
GEBRAUCHSANWEISUNG
INSTRUCTION BOOK
INSTRUZIONI D'USO
NOTICE D'UTILISATION
DE
GB
ER8509BX, ER8509BCRE, ER8509BSAN
IT
FR
818 16 10--02/6
Advertisement
Table of Contents
Related Manuals for Electrolux ER8509BX
Summary of Contents for Electrolux ER8509BX
- Page 1 K û h l -- / G e f r i e r k o m b i n a t i o n / F r i d g e -- f r e e z e r / F r i g o f í c o -- C o n g e l a d o r / R é f r i g é r a t e u r -- C o n g é l a t i o n GEBRAUCHSANWEISUNG INSTRUCTION BOOK INSTRUZIONI D’USO NOTICE D’UTILISATION ER8509BX, ER8509BCRE, ER8509BSAN 818 16 10--02/6...
-
Page 2: Table Of Contents
Safety instructions Your new fridge/freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. -
Page 3: Description Of The Appliance
Description of the Appliance Control Panel ALARM SUPER B C D E F A. Thermometer F. Green indicator lamp Displays the warmest temperature inside the freezer. Lights when the freezer is operating. B. Alarm shut-off button G. Thermostat control Used to turn the audible alarm off. Use to switch on and set the desired temperature in the freezer. -
Page 4: Switching Off
Switching off Turn the control anti-clockwise past the click position to "H". Unplug the power supply plug from the wall socket or, alternatively, remove the fuse. Temperature inside the fridge A suitable temperature inside the fridge is approx. +5°C. If the thermostat control is set to a too cold temperature, food with a high water content may start to freeze if it has been placed in the coldest places in the fridge. -
Page 5: Switching Off
Switching off Turn the control anti-clockwise past the click position to "H". Unplug the power supply plug from the wall socket or, alternatively, remove the fuse. Alarms and other features Temperature alarm The warning lamp lights and an alarm sounds if it gets warmer than -12°C. -
Page 6: Temperature Inside The Freezer
Thawing Temperature inside the freezer It is best to use the fridge to thaw food. Place the foodstuff on a plate with a raised edge to prevent To ensure that foodstuff will keep for a long time, be liquids from running out. To quickly thaw food, put sure that the temperature inside the freezer is -18°C it in room temperature or in cold water. - Page 7 Glass interior Glass shelf The shelf can be re--arranged if you so desires. Small glass shelf This shelf must be placed above the vegetable drawer. Vegetable drawer Placed in the bottom of the refrigerator. Cleaning: All plastic-- and glass parts can be washed with lukewarm water and a mild detergent.
-
Page 8: Hints And Tips
Hints and Tips Saving energy thickness of 3-5 mm. · Make sure the door gasket is complete and · Pay careful attention to where the cabinet is always clean. placed. See the section "Installation". When installed correctly, the cabinet will consume less Food Storage energy. -
Page 9: To Change The Light Bulb
To Change the Light Bulb The light is switched on automatically when the door is opened. Before replacing the light bulb, disconnect the power plug from the outlet. Fold the grille backward by unsnapping the front edge. Use a bulb of the same type, E14 socket, maximum rating of 25 W. -
Page 10: Defrosting The Freezer
Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. Remove the freezer drawers and place them on top of each other by turning every other drawer one half turn. - Page 11 It is too cold inside the refrigerator. Set a higher temperature. Vegetables and other products that are easily frozen have been placed on a "too cold" shelf. See the chapter "Temperature inside the refrigerator". There is water on the cooling plate inside This is normal.
-
Page 12: Customer Care Department
Sound level in cabinet is too high. The refrigerating system will always produce some sounds. A pulsing sound is heard when coolant is pumped inside the cooling pipes. A ticking sound from the thermostat can be heard when the compressor switches on and off. The sound level varies depending on the operation of the cabinet. -
Page 13: Technical Specification
Technical specification ER8509BX, ER8509BCRE, Model ER8509BSAN Gross volume 239 l 85 l 595 mm Width Height 1750 mm 600 mm Depth 460 kWh/year Energy consumption Energy class 160W Rated power 68 kg Weight Freezing capacity 12 kg/24 hours Number of compressors... -
Page 14: Installing The Cabinet
Mounting the handles Pool handle 1. Screw a handle attachment onto the handle bar. 2. Screw the other handle attachment on the cabinet door. 3. Put the handle with the handle attachment on the door and screw into place. Caution! Do not overtighten the screws (max 2 Nm) as you may damage the door handles. -
Page 15: Electrical Connection
Electrical connection This appliance must be earthed. If the plug that is fitted to your appliance is not suitable for your socket outlett, it must be cut of and the appropriate plug fitted. Remove the fuse from the cut off plug.The cut off plug should then be disposed of to prevent the hazard of socket inanother part of your home. -
Page 16: Door Reversal
Door Reversal 1. Close the cabinet and pull out the plug from the electrical outlet. 2. Unscrew the handle. Firstly unscrew the handle attachment from the upper handle holder. Then loosen both handle holders from the door. 3. Remove the ventilation grille. There is a part on the grille that can be removed. - Page 17 MARIESTAD DD--AV...
