Summary of Contents for Electrolux ER8415B

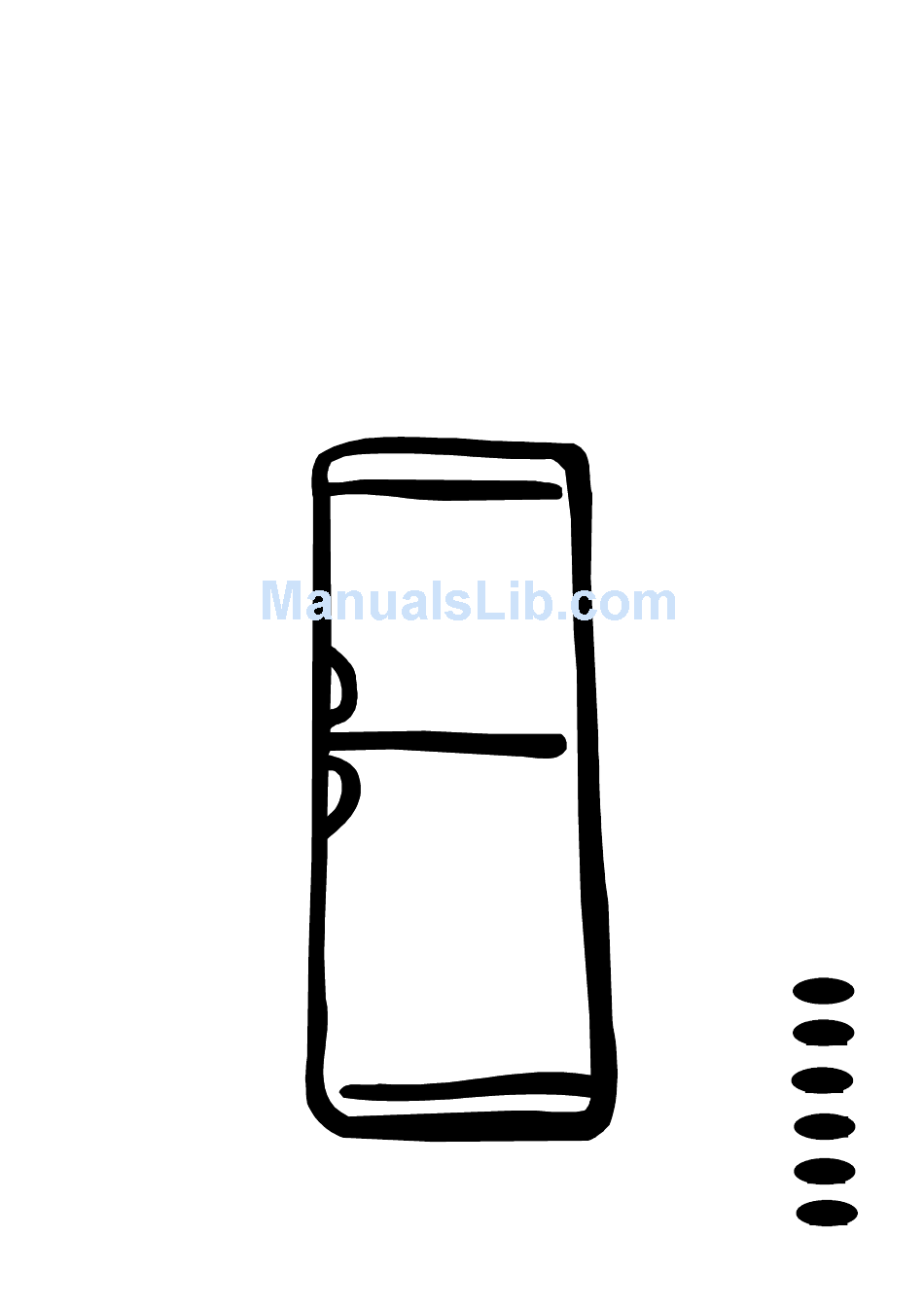

- Page 1 Fridge--freezer / Kühlraum--Gefrier / Réfrigérateur--Congélation / Frigorifíco--Congelador / Koelkast--Vries / Køle--Fryseskap INSTRUCTION BOOK GEBRAUCHSANWEISUNG NOTICE D’UTILISATION INSTRUZIONI D’USO GEBRUIKSAANWIJZING BRUKSANVISNING ER8415B 818 16 31--03/0...
-
Page 2: Table Of Contents
Safety instructions Your new fridge/freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. -
Page 3: Description Of The Appliance
Description of the Appliance Model ER8415B Glass shelf Bottle & Can shelf Vegetable drawer Butter comparment Door shelf Eggtray Bottle shelf Shelf with grill 10. Freezer drawer 11. Ventilation grille 12. Freezer calender Control Panel A. Green indicator lamp B. Thermostat control Lights when the fridge is operating. -
Page 4: Using The Fridge/Freezer
Using the fridge/freezer This cabinet is a combined freezer/freezer whereby both freezer/freezer compartments are operated by the same compressor. This means that if the fridge compartment becomes overloades it will result in even colder temperatures in the freezer. Starting and setting the tempera- ture Turn the thermostat control to the desired position. -
Page 5: Temperature Inside The Freezer
Hints: · Distribute foodstuffs to allow cold air to circulate freely between the products. · Do not place food products directly against the cooling plate on the rear wall since they may freeze in this case. · Also never put warm products into the cabinet. Wait until they have cooled down. -
Page 6: Cabinet Interior
Cabinet interior Refrigerator compartment The vegetable drawer has a removable plate to separate different vegetables. The shelves and door compartments are removable and can easily be re-arranged. Certain shelves must be lifted up by the rear edge to enable them to be removed. The lower door compartment and the glass shelf above the vegetable drawer must not be moved. -
Page 7: Food Storage
straight away. The use of an insulated container is · Food which is to be frozen (when cool) should advisable. When you arrive home place the be placed in the fridge before being transfered to frozen food in the freezer immediately. the freezer. -
Page 8: Defrosting The Fridge
External Cleaning Wash the outer cabinet with warm soapy water. Remove the ventilation grille (see the section "Removing the ventilation grille") and vacuum-clean under the cabinet. Once or twice a year dust the condenser (black grille) and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive... -
Page 9: To Change The Light Bulb
To Change the Light Bulb The light is switched on automatically when the door is opened. Before replacing the light bulb, disconnect the power plug from the outlet. Fold the grille backward by unsnapping the front edge. Use a bulb of the same type, E14 socket, maximum rating of 25 W. -
Page 10: Guarantee Conditions
It is too cold inside the freezer. Set a warmer temperature. The compressor operates continuously. Set a warmer temperature. Make sure that the door is completely closed and that the insulating strip is complete and clean. The temperature where the cabinet is placed is above normal room temperature. -
Page 11: Technical Specification
Technical specification ER8415B Model 236 l Volume fridge freezer 80 l 595 mm Width 1800 mm Height 600 mm Depth 460 kWh/year Energy consumption Energy class 130W Rated power 7kg/24 hours Freezing capacity Installation Unpacking Unpack the cabinet and check that it is in good condition and free of any transport damage. -
Page 12: Installing The Cabinet
Installing the cabinet To obtain the best performance from the cabinet, ensure : · the cabinet is placed in a dry, cool place and is not exposed to direct sunlight. · the cabinet is not placed close to a source of heat, e.g. -
Page 13: Electrical Connection
Connect the Green and Yellow (earth) wire to the Electrical connection terminal in the plug which is marked with the letter This appliance must be earthed. "E" or the earth symbol or coloured greeen and If the plug that is fitted to your appliance is not yellow. - Page 14 6. On the doors: Change the positions of the door fittings. Put a new plug in the hole on the lower door. 7. Replace the upper door and secure the upper hinge pin. Replace the lower door. Change the position of the hinge pin of the lower hinge.
- Page 15 qÜÉ=bäÉÅíêçäìñ=dêçìé=áë=íÜÉ=ïçêäÇDë=ä~êÖÉëí=éêçÇìÅÉê=çÑ=éçïÉêÉÇ=~ééäá~åÅÉë=Ñçê=âáíÅÜÉåI=ÅäÉ~åáåÖ=~åÇ=çìíÇççê=ìëÉK jçêÉ=íÜ~å=RR=ãáääáçå=bäÉÅíêçäìñ=dêçìé=éêçÇìÅíë=EëìÅÜ=~ë=êÉÑêáÖÉê~íçêëI=ÅççâÉêëI=ï~ëÜáåÖ=ã~ÅÜáåÉëI=î~Åììã=ÅäÉ~åÉêëI ÅÜ~áå=ë~ïë=~åÇ=ä~ïå=ãçïÉêëF=~êÉ=ëçäÇ=É~ÅÜ=óÉ~ê=íç=~=î~äìÉ=çÑ=~ééêçñK=rpa=NQ=Äáääáçå=áå=ãçêÉ=íÜ~å=NRM=ÅçìåíêáÉë ~êçìåÇ=íÜÉ=ïçêäÇK aáÉ=bäÉÅíêçäìñJdêìééÉ=áëí=ÇÉê=ïÉäíïÉáí=Öê∏≈íÉ=eÉêëíÉääÉê=îçå=Ö~ëJ=ìåÇ=ëíêçãÄÉíêáÉÄÉåÉå=dÉê®íÉå=ÑΩê=ÇáÉ=hΩÅÜÉI=òìã oÉáåáÖÉå=ìåÇ=ÑΩê=cçêëí=ìåÇ=d~êíÉåK=gÉÇÉë=g~Üê=îÉêâ~ìÑí=ÇáÉ=bäÉÅíêçäìñJdêìééÉ=áå=ΩÄÉê=NRM=i®åÇÉêå=ÇÉê=bêÇÉ=ΩÄÉê=RR jáääáçåÉå=mêçÇìâíÉ=EhΩÜäëÅÜê®åâÉI=eÉêÇÉI=t~ëÅÜã~ëÅÜáåÉåI=pí~ìÄë~ìÖÉêI=jçíçêë®ÖÉå=ìåÇ=o~ëÉåã®ÜÉêF=ãáí=ÉáåÉã tÉêí=îçå=êìåÇ=NQ=jêÇK=rpaK Le Groupe Electrolux est le premier fabricant mondial d'appareils domestiques, d'entretien et pour l'extérieur. Plus de 55 millions de produits du Groupe Electrolux (tels que réfrigérateurs, cuisinières, lave-linge, aspirateurs, tronçonneuses, tondeuses à gazon) sont vendus chaque année pour un montant d'environ 14 milliards d'euros dans plus de 150 pays à...
