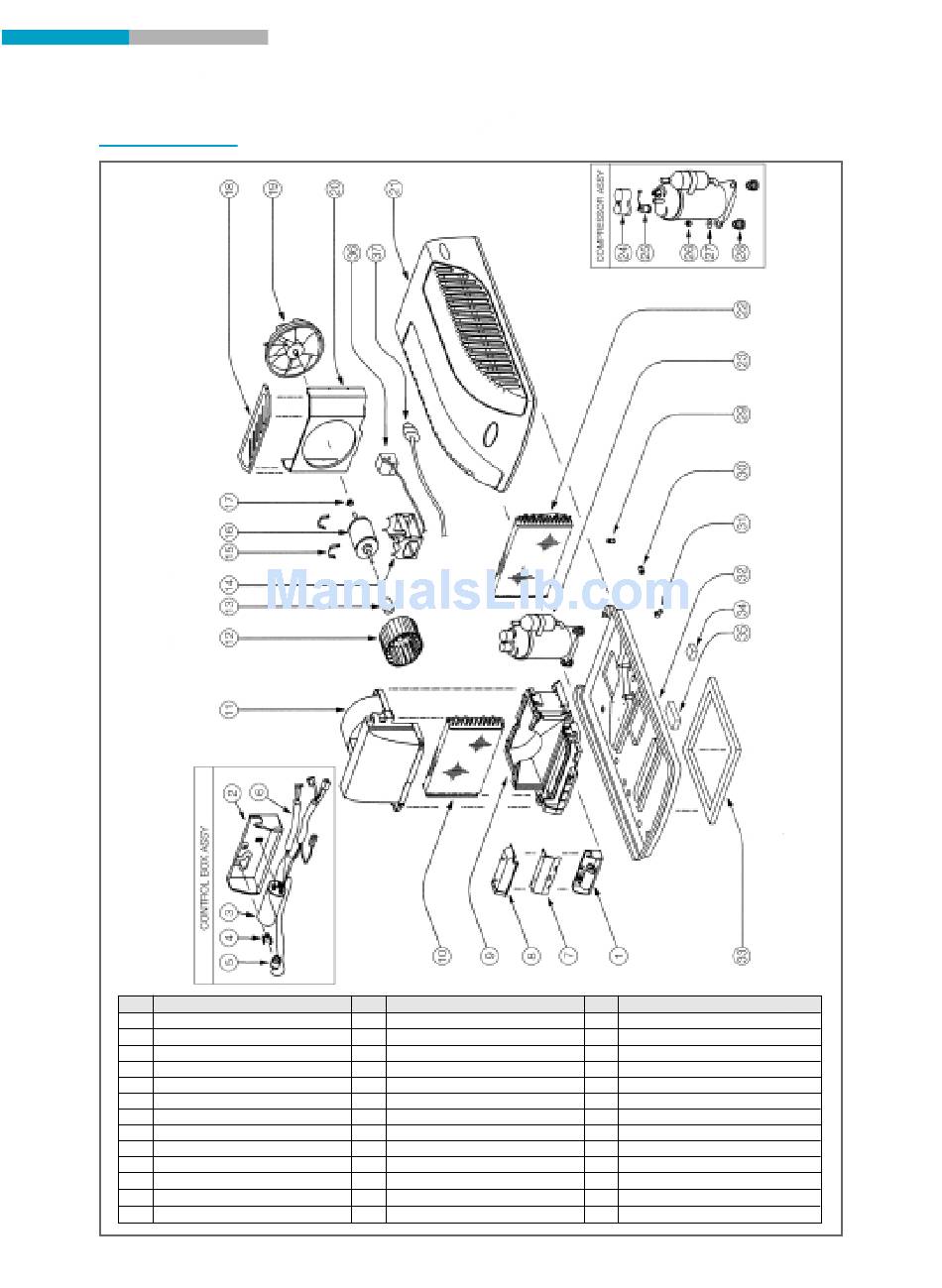

PART DIAGRAM

UPPER UNIT
NO PART NAME
1 UPPER CONTROL ASSY
2 BOX, CONTROL
3 CAPACITOR
4 CLIP, THERMISTOR
5 START THERMISTOR
6 WIRE ASSY A
7 COVER, CONTROL BOX
8 COVER, WATER
9 LOWER SCROLL ASSY
10 COIL ASSY, EVAP
11 UPPER SCROLL ASSY
12 BLOWER WHEEL ASSY
13 FAN MOTOR SEAL
NO PART NAME
14 BRACKET ASSY,MOTOR
15 CLIP, MOUNTING
16 MOTOR, FAN
17 RING, COMPRESSION
18 COVER ASSY, CONDENSER
19 FAN, PROPELLER
20 ORIFICE, CONDENSER
21 COVER ASSY, COND
22 COIL ASSY, COND
23 COMPRESSOR
24 TERMINAL COVER
25 OVERLOAD PROTECTOR
26 NUT LOCK
OWNER
NO PART NAME
27 WASHER CAP
28 GROMMET
29 GROMMET TUBE
30 GROMMET TUBE
31 CLAMP TUBE
32 BASE PAN ASSY
33 GASKET
34 INSU BASE 4
35 INSU BASE 3
36 RVS COIL AS
37 FREEZE S/W ASSY
'
