Electrical Requirements - GE Monogram ZDP36L6HSS Dimensions And Installation Information

zDP36N6hSS
(Natural Gas)
zDP36L6hSS
(Liquid Propane)

Electrical Requirements

Ranges must be supplied with 208/240V, 60Hz, and connected to
an individual, properly grounded branch circuit protected by a circuit
breaker or time-delay fuse. Install a 30-amp circuit for 36" ranges. The
receptacle must be a NEMA 14-50R device to accept the four-prong
plug on the range.

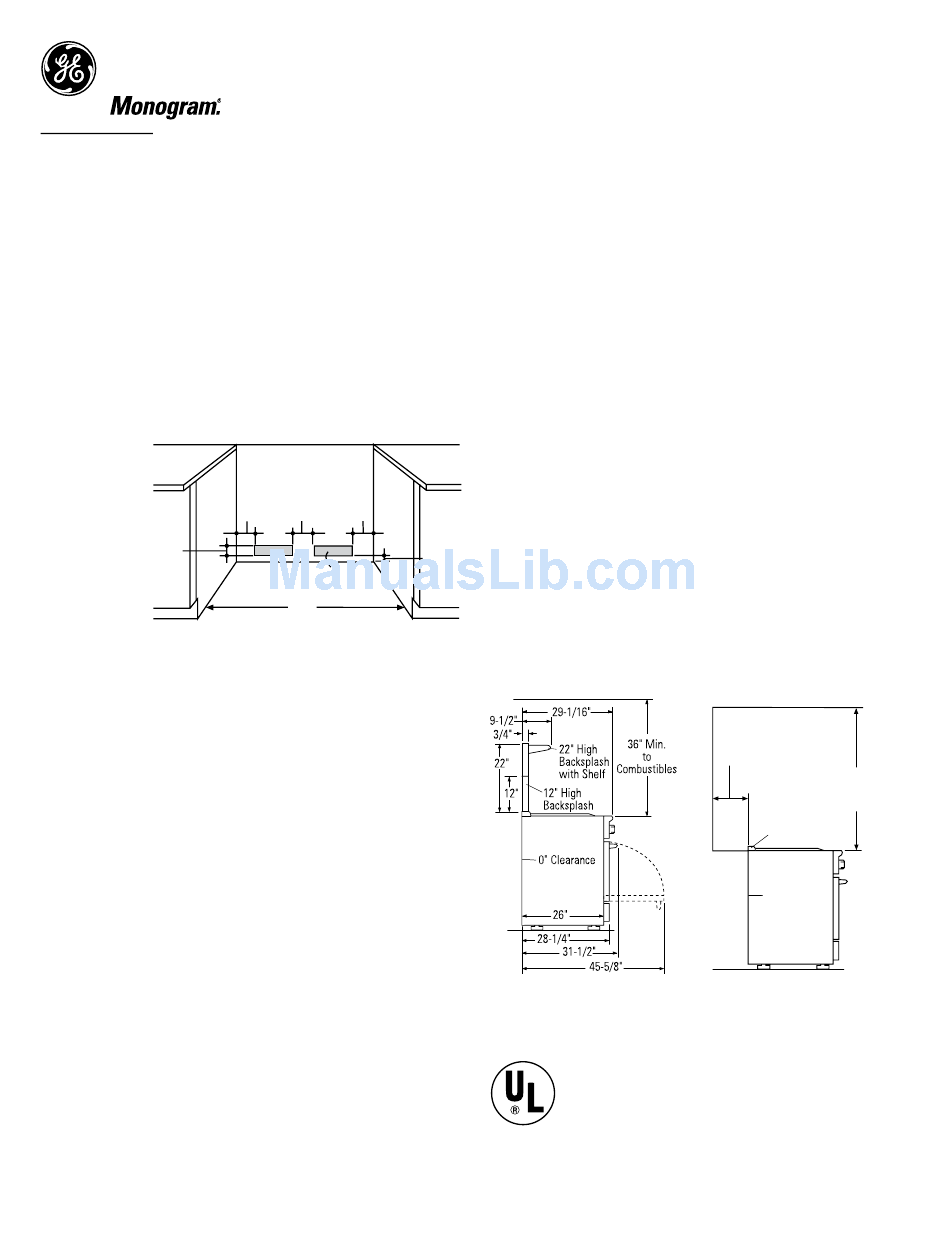

Locate gas and
electric as shown
4"
Gas Supply
• Natural gas models are designed to operate at 5" water column
pressure. A regulator is required at the natural gas source to
provide maximum of 7" water pressure to the range regulator.
• The liquid propane models are designed to operate at 10" water
column pressure. A regulator is required at the LP source to provide
maximum of 14" water pressure to the range regulator.
Specification Revised 3/08
130546
– GE Monogram 36" Dual Fuel Professional Range
with 6 Burners
4" 4" 4"
12" 12"
Gas
Electric
Supply
Supply
36"
Optional Backsplash Accessories
The range requires a 12" minimum clearance to a vertical combustible
surface at the rear. A backsplash is required for installations with
less than 12" clearance. The following backsplash accessories are
available, or a custom, non-combustible backsplash can be used.
Backsplashes: Order one with a 36"-wide range
zX12B36hSS–12" backsplash
zX22B36hSS– 22" backsplash with warming shelf
Backsplash with Warming Shelf
All Monogram Professional Wall-Mounted Hoods feature infrared
warming lights. The 22"-high warming shelf is a perfect complement
when installed with the tapered or straight-sided hoods.
1-1/2"
If you choose to install this range with a Restaurant-Style
Professional Hood (ZV36RSFSS), no additional accessories are
required. These hoods are shipped with a stainless steel
backsplash and warming shelf.
Side View with a Backsplash
Listed by
Underwriters
Laboratories
For answers to your Monogram,
GE appliance questions, visit our website at
®
GEAppliances.com or call GE Answer Center
service, 800.626.2000.
12" Min. to Combustibles or
0" Min. to Combustibles
with 12" or 22" Backsplash
36" Min.
to
Combustibles
Backguard
0" Clearance
GE Profile or
® ™
®
