GE ZDP364LRPS Dimensions And Installation Information

GE ZDP364LRPS Dimensions And Installation Information

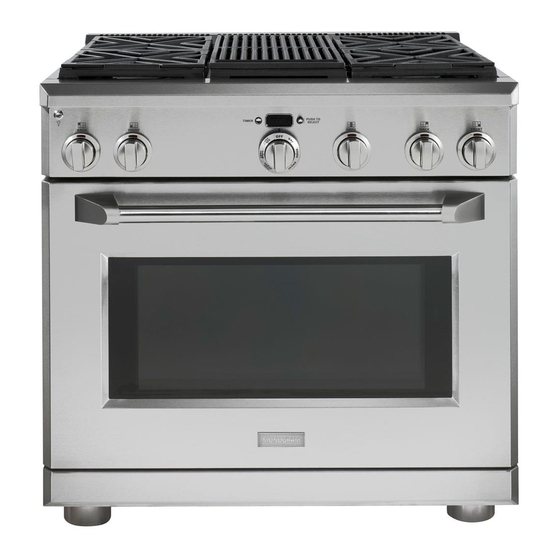

36" dual-fuel professional range with 4 burners and grill

Advertisement

Quick Links

ZDP364NRPSS (Natural Gas)
ZDP364LRPSS (Liquid Propane)
GE Monogram
Dimensions and Installation Information (in inches)
Professional ranges offer a number of choices in size and
cooktop configurations.
All Professional Ranges are factory set for natural or liquid
propane gas. The correct model should be ordered for the
installation situation.
Note: Conversion kits are included with the range if the wrong
gas type was ordered. High Altitude kit, WB28K10553 for
operation above 3,000 feet (for Natural and LP gas models), is
also available. The kits must be installed by a qualified service
technician at additional cost.
Installation Information
Before installing, consult installation instructions packed with
product or online at Monogram.com for current dimensional
data.A 36" or 42" wide professional vent hood with a minimum
600 CFM is recommended for installation over this range.

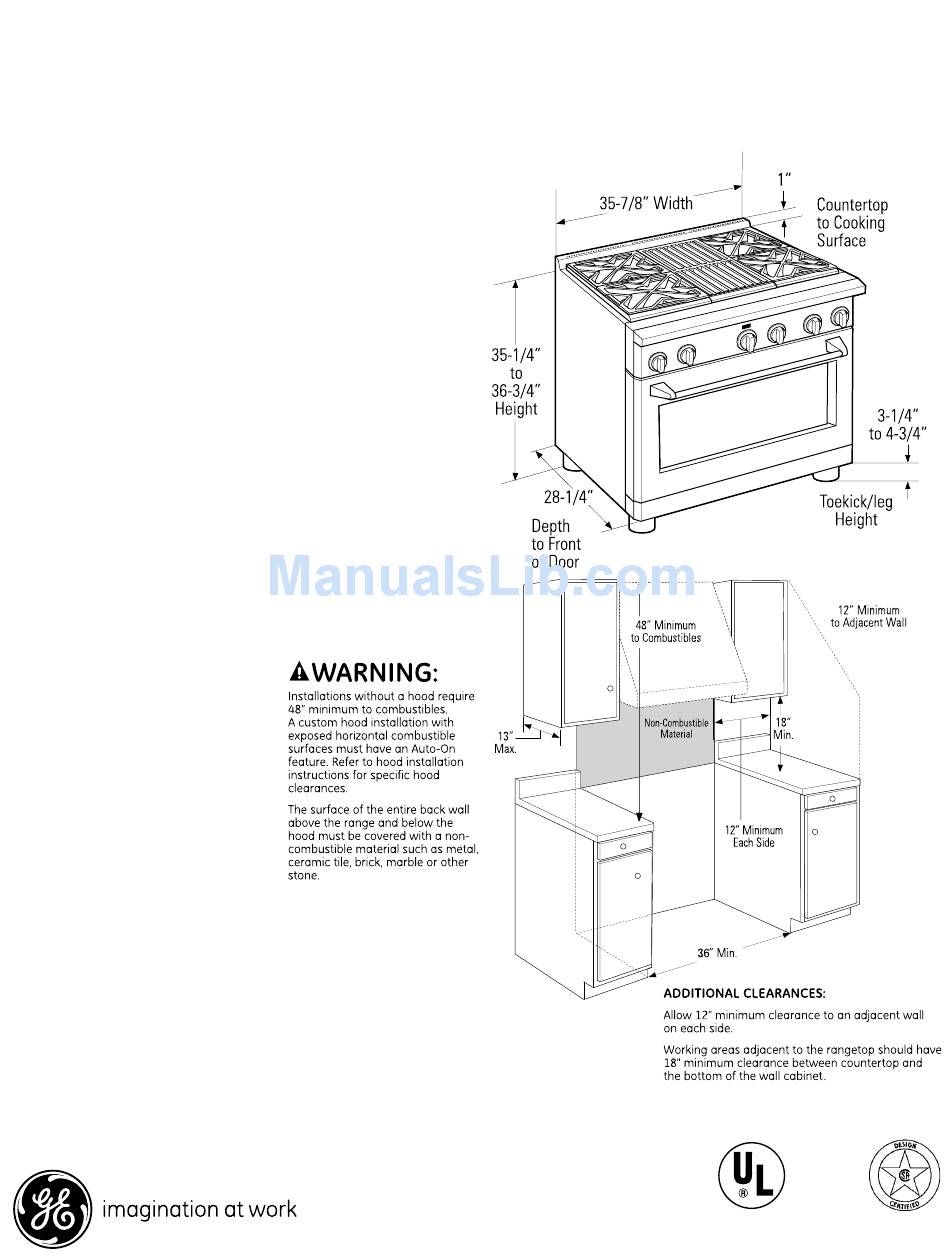

Advance Planning

Refer to dimensional drawings
for appropriate placement and
necessary clearances when
planning the installation.
• Working areas adjacent to the
range should have 18" minimum
clearance between countertop
and cabinet bottom.
• Clearance between range and side
wall or combustible material must
be at least 12" on each side.
• Installation must conform with
local codes. In the absence of local
codes, the range must comply with
the National Fuel Gas Code, ANSI
Z223.1-1990.
For answers to your Monogram,
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
36" Dual-Fuel Professional Range with 4 Burners and Grill
®
GE Profile
or
®
service,
®
Listed by
Underwriters
Laboratories
Specification Created 7/08
130555
