QuickSpecs

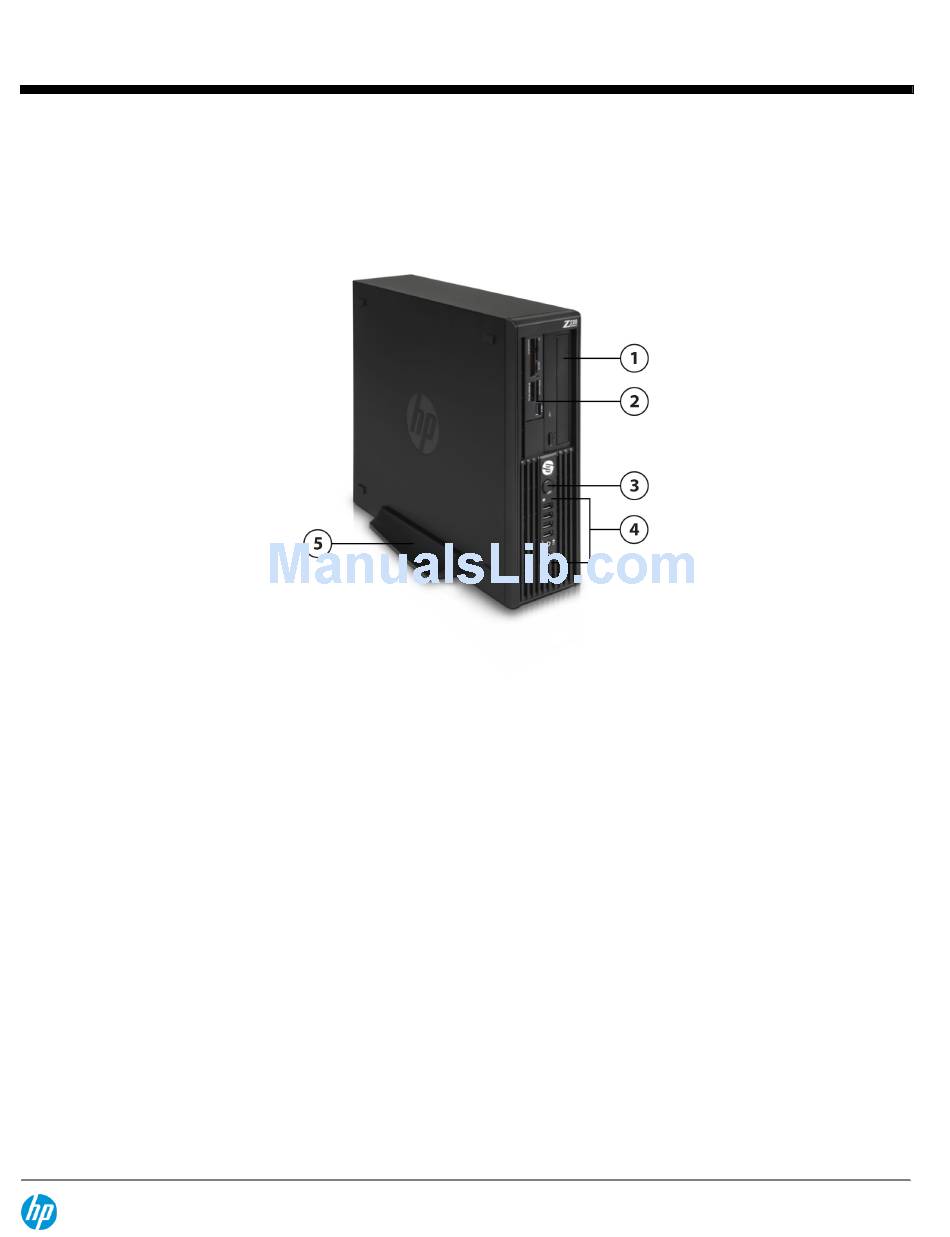

Overview
1.
External 5.25" bay
2.
External/internal shared 3.5" bay
3.
Power button
4..
Front I/O (in top to bottom order): 4 USB 2.0 port, Headphone, Microphone
5.
SFF tower stand (optional)
DA - 14265 North America — Version 21 — November 21, 2013
HP Z220 SFF Workstation
Page 1

Advertisement

loading

Related Manuals for HP Z220 SFF

Summary of Contents for HP Z220 SFF

  • Page 1 QuickSpecs HP Z220 SFF Workstation Overview External 5.25” bay External/internal shared 3.5” bay Power button Front I/O (in top to bottom order): 4 USB 2.0 port, Headphone, Microphone SFF tower stand (optional) DA - 14265 North America — Version 21 — November 21, 2013...
  • Page 2 Windows 7 Ultimate 64-bit Windows 7 Professional 32/64 Windows 7 Home Premium 32/64 HP Installer Kit for Linux [includes drivers for 64-bit OS versions of Red Hat Enterprise Linux 6 and SUSE Linux Enterprise Desktop (SLED) 11] Windows 8 Pro 64-bit...
  • Page 3 QuickSpecs HP Z220 SFF Workstation Overview Genuine Windows® 7 Enterprise 32/64 Genuine Windows® XP Professional 32/64* Notes: *See the "Windows XP Support Matrix for Z Workstations" at: http://www.hp.com/support/workstation_manuals Notes: For detailed OS/hardware support information for Linux, see: http://www.hp.com/support/linux_hardware_matrix Clock Intel® Turbo Memory Featuring Intel®...
  • Page 4 Color Jack Black Convertibility The Z220 SFF can either be placed flat on the desktop or made to stand on the desk with the optional tower stand. Expansion Slots (see 1 PCIe Gen3 x16 slot...
  • Page 5 QuickSpecs HP Z220 SFF Workstation Overview Humidity Operating: 8% to 85% Non-operating: 8% to 90% Maximum Altitude (non- Operating: 3,000 m (10,000 ft) Non-operating: 9,100 m (30,000 ft). pressurized) Power Supply 240 watts wide-ranging, active Power Factor Correction, 90% Efficient The Power Supply Efficiency Report for this product may be found at these links: http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD_PS-4241-...

  • Page 6: Supported Components

    QuickSpecs HP Z220 SFF Workstation Supported Components Processors Option Factory Option Kit Part Support Configured Number Notes Intel® Xeon® processor E3 v2 family (Z220) Intel® Xeon® processor E3-1280v2, Quad-Core, 8 MB cache, See Note 3.6 GHz, up to 4.0 GHz with Intel Turbo Boost Technology Intel®...

  • Page 7: Hp Z220 Sff Workstation

    HP ZR24w 24-inch S-IPS LCD Monitor HP ZR2440w 24-inch LED Backlit IPS Monitor HP ZR2240w 21.5-inch LED Backlit IPS Monitor HP ZR2040w 20-inch LED Backlit IPS Monitor Supported by all Operating Systems available from HP Screen Size Diagonally Measured Hard Drives SATA Hard Drives...
  • Page 8 QuickSpecs HP Z220 SFF Workstation Supported Components Hard Drive Controllers Option Kit Factory Part Support Configured Option Kit Number Notes Integrated SATA Controller (Z220) Integrated SATA Controller (SFF), RAID 0,1 supported: 2 ports 3 Gb/s, 2 ports 6 Gb/s Factory integrated RAID on motherboard for SATA drives...
  • Page 9 Intermixing integrated Intel HD graphics and discrete graphics cards in order to drive more than two displays can be enabled using the Computer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching three or more displays.
  • Page 10 Option Kit Part Support Notes Number DDR3-1600 nECC Unbuffered DIMMs CTO HP 32GB (4x8GB) DDR3-1600 nECC RAM HP 16GB (4x4GB) DDR3-1600 nECC RAM HP 12GB (2x4GB+2x2GB) DDR3-1600 nECC RAM HP 8GB (2x4GB) DDR3-1600 nECC RAM HP 8GB (4x2GB) DDR3-1600 nECC RAM...
  • Page 11 HP USB 3.0 2x2 Port SuperSpeed PCIe x1 Card QT587AA See Note NOTE 1: For the Z220 SFF Workstation, this card is only supported on Slots 1 or 2 NOTE 2: Four USB 3.0 ports are available integrated on the motherboard (rear access). Integrated USB 3.0 ports are supported under Microsoft Windows 7 operating system only.
  • Page 12 Security Factory Part Support Configured Option Kit Number Notes Security Cable with Kensington Lock PC766A HP 2009 (SFF) Solenoid Lock and Hood Sensor HP Business PC Security Lock Kit PV606AA Input Devices Option Kit Factory Part Support Configured Option Kit...
  • Page 13 DM293A HP Workstation Mouse Pad Japan only HP Serial Port Adapter PA716A HP ENERGY STAR 5.0 Enabled Configuration HP Parallel Port Adapter Kit KD061AA HP Internal USB Port Kit HP eSATA PCI Cable Kit FH966AA HP 2009 (SFF) Chassis Tower Stand...
  • Page 14 Red Hat Enterprise Linux (RHEL) Workstation - http://www.redhat.com/rhel/desktop/ Paper License (1yr) SUSE Linux Enterprise Desktop 11 http://www.suse.com/products/desktop/ Windows XP Pro 32-bit/64-bit OS supported. Drivers available on HP support web site. DA - 14265 North America — Version 21 — November 21, 2013 Page 14...

  • Page 15: System Board

    3Gb/s SATA in black). One port can optionally be used for Interfaces eSATA. NOTE: the Z220 SFF supports a maximum of two SATA/SSD drives only. RAID 0 and 1 supported. (Factory integrated RAID is Microsoft Windows only). Serial Attached SCSI...
  • Page 16 QuickSpecs HP Z220 SFF Workstation System Technical Specifications External SATA (eSATA) 1 port eSATA capable with optional eSATA After-Market Option cable kit. IDE connector Floppy connector Serial 1 rear port 2nd Serial Yes- requires optional Serial Port Adapter Kit Parallel...
  • Page 17 QuickSpecs HP Z220 SFF Workstation System Technical Specifications ENERGY STAR® qualified (Config Dependent) 80 PLUS Compliant Yes, 90% Efficient. For the PSU Efficiency Report for the power supply, please go to these links: http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD_PS-4241- 9HB_ECOS%202398_240W_Report.pdf http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD_PC9055- 020H_ECOS%202342_240W_Report.pdf http://www.plugloadsolutions.com/psu_reports/HEWLETT-PACKARD%20COMPANY_D10- 240P1A_ECOS%202307_240W_Report.pdf http://www.plugloadsolutions.com/psu_reports/HP_DPS-240TB%20A_ECOS%202299_240W_Report.pdf http://www.plugloadsolutions.com/psu_reports/HEWLETT-...
  • Page 18 QuickSpecs HP Z220 SFF Workstation System Technical Specifications Example Configuration #2 Processor Info 1x Intel Xeon E3-1280v2 3.6 8MB 4C HT 69W GT0 CPU Memory Info 4GB (2x 2GB) 1600 MHz DDR3 ECC Graphics Info 1x NVIDIA Quadro 600 1GB Graphics Disks/Optical/Floppy 1x SATA 1 TB 7.2k rpm/ 1 Optical...
  • Page 19 QuickSpecs HP Z220 SFF Workstation System Technical Specifications Energy Consumption 115 VAC 230 VAC 100 VAC LAN Enabled LAN Disabled LAN Enabled LAN Disabled LAN Enabled LAN Disabled Windows Idle (S0) 55.0 W 56.5 W 55.3 W Windows Busy Typ (S0) 163.5 W...
  • Page 20 QuickSpecs HP Z220 SFF Workstation System Technical Specifications System Configuration Processor Info System Configuration (High-end) (High-end) Memory Info 4 x 4GB DDR3 1600 MHz Graphics Info NVIDIA Quadro 600 Disks/Optical 2x 300GB 10K rpm SATA HDDs; SATA Blu-ray ODD Declared Noise Emissions...
  • Page 21 QuickSpecs HP Z220 SFF Workstation System Technical Specifications Color-coordinated Cables and Connectors Memory Tool-less System Board Screw-In Dual Color Power and HD LED on Front of Computer Configuration Record SW Yes Over-Temp Warning on Screen Restore CD/DVD Set Restores the system to the factory shipped operating system. Orderable with the system and available from HP Support.
  • Page 22 92 mm x 92mm x 25 mm 4-wire PWM Memory Heatsink Fan HP Advanced System HP Advanced System Diagnostics enables you to perform hardware testing and view hardware and software configuration. HP Advanced System Diagnostics is provided on systems shipped with Windows Diagnostics Offline and available as a download from HP Support.
  • Page 23 QuickSpecs HP Z220 SFF Workstation System Technical Specifications BIOS Boot Specification v1.01. WMI Support WMI is Microsoft's implementation of Web-Based Enterprise Management (WBEM) for Windows. WMI is fully compliant with the Distributed Management Task Force (DMTF) Common Information Model (CIM) and WBEM specifications.
  • Page 24 Cryptographically Signed system board replacement. BIOS Master Boot Record A feature in the HP BIOS that prevents changes and/or infections to the Master Boot Record. Useful in protecting from viruses. Protection Boot Block Emergency The HP BIOS offers a write-protected boot block ROM that provides recovery from a failed flashing of the computer BIOS.
  • Page 25 HP sales office. and Recycling Products returned to HP will be recycled, recovered or disposed of in a responsible manner. This product is greater than 90% recyclable by weight when properly disposed of at end of life.
  • Page 26 System Technical Specifications Additional Information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Plastic parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
  • Page 27 Wireless AMT functionality on Desktop (WoDT) Enhanced KVM resolution Intel® vPro™ Technology The HP Z220 workstations support Intel vPro technology when purchased with a vPro technology capable CPU: Intel® Xeon® processor E3-1200v2 family or 3rd Generation Intel Core i5/i7 processors with Intel VT...
  • Page 28 Offerings are built on the foundation of a carefully chosen set of hardware and software designed and tested to work with all HP Z Workstation platforms through their end of life. These components and their corresponding HP Workstation platform compatibility are outlined in this section.
  • Page 29 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Processors Processors Intel® Xeon® processor E3-1280v2, Quad-Core, 8 MB cache, 3.6 GHz, up to 4.0 GHz with Intel Turbo Boost Technology Intel® Xeon® processor E3-1270v2, Quad-Core, 8 MB cache, 3.5 GHz, up to 3.9 GHz with Intel Turbo Boost Technology Intel®...
  • Page 30 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Hard Drives SATA (Serial ATA) Hard 300GB SATA 10K rpm SFF Capacity 300,069,052,416 bytes Drives for HP in 3.5" Frame HDD Height 1 in; 2.54 cm Workstations Width Media Diameter 2.5 in; 6.36 cm Physical Size 4 in;...
  • Page 31 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Hard Drives Buffer 16MB Seek Time (typical reads, Single Track 2 ms includes controller Average 11 ms overhead, including Full Stroke 21 ms settling) Rotational Speed 7,200 rpm Logical Blocks 976,773,168 Operating Temperature 41°...
  • Page 32 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Hard Drives 250GB SATA 10K rpm SFF Capacity 250GB Height 0.6 in; 1.53 cm Width Media Diameter 2.5 in; 6.36 cm Physical Size 2.75 in; 6.99 cm Interface Serial ATA (6Gb/s) Synchronous Transfer...
  • Page 33 25ms (typical) settling) Rotational Speed 7,200 rpm Operating Temperature 32° to 140° F (0° to 60° C) HP Solid State Drives HP 128GB SATA 6Gb/s SSD Capacity 128GB (SSDs) for Workstations Height 0.28 in; 0.7 cm Width Physical Size 2.5 in; 6.36 cm...
  • Page 34 6Gb/s SATA Synchronous Transfer Up to 500MB/s (Sequential Read) Rate (Maximum) Operating Temperature 32° to 158° F (0° to 70° C) HP 512GB SATA 6Gb/s SSD Capacity 512GB Height 0.28 in; 0.7 cm Width Physical Size 2.5 in; 6.36 cm...
  • Page 35 Red Hat Enterprise Linux(RHEL) 5 Desktop/Workstation Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may also be obtained from: ftp://download.nvidia.com/novell...
  • Page 36 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Graphics Memory Size: 512MB DDR3 Clock: 875Mhz Memory Bandwidth: 14GB/s Connectors 2 x DisplayPort Maximum Resolution Up to 2560 x 1600 (digital display) per display. Image Quality Features The following video formats are supported:...
  • Page 37 Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html SUSE Linux Enterprise drivers may also be obtained from: ftp://download.nvidia.com/novell...
  • Page 38 Microsoft Windows XP Professional (64-bit and 32-bit) Drivers Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Power Consumption 33.4 Watts Note Heatsink cooler design is active.
  • Page 39 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Graphics Note AMD Eyefinity technology can support multiple displays using a single enabled AMD FirePro™ professional graphics card; the number of supported displays varies by card model. Microsoft® Windows® 7, Windows Vista®, or Linux® is required in order to support more than 2 displays.
  • Page 40 Red Hat Enterprise Linux (RHEL) 5 Desktop/Workstation (64-bit) Red Hat Enterprise Linux(RHEL) 6 Desktop/Workstation SUSE Linux Enterprise Desktop 11 (64-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html SUSE Linux Enterprise drivers may also be obtained from: ftp://download.nvidia.com/novell...
  • Page 41 Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) SUSE Linux Enterprise Desktop 11 (64-bit and 32-bit) HP qualified drivers may be preloaded or the latest HP qualified drivers are available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html SUSE Linux Enterprise drivers may also be obtained from: ftp://download.nvidia.com/novell...
  • Page 42 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Optical and Removable Storage HP DVD-ROM Drive Description 5.25-inch, half-height, tray-load Mounting Orientation Either horizontal or vertical Interface Type SATA/ATAPI Dimensions (WxHxD) 15.0 x 4.4 x 20.3 cm (5.9 x 1.7 x 8.0 in)
  • Page 43 SUSE Linux Enterprise Desktop 10 & 11 No driver is required for this device. Native support is provided by the operating system. Kit Contents HP SATA SuperMulti DVD Writer Drive, Roxio Easy Media Creator software, Intervideo WinDVD Software, installation guide, and DVD+R media. HP Blu-Ray Writer Description 5.25-inch, half-height, tray-load...
  • Page 44 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Optical and Removable Storage Dimensions (WxHxD) 15.0 x 4.4 x 20.3 cm (5.9 x 1.7 x 8.0 in) Disc Formats BD-ROM BD-R BD-RE DVD-RAM DVD+R DVD+RW DVD+R DL DVD-R DL DVD-R DVD-RW...
  • Page 45 * No driver is required for this device. Native support is provided by the operating system. ** RHEL WS4 not supported on Z200/Z200SFF Kit Contents HP Blue Laser RW Drive, Roxio Easy Media Creator software, Intervideo WinDVD Software, installation guide. Disclaimer...
  • Page 46 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Optical and Removable Storage HP 22-in-1 Media Card Description The Media Card Reader device uses the same physical form factor and mounting as a Floppy Disk Drive. The device connects to a 2x5 two-channel Reader USB header on the motherboard of the system.
  • Page 47 0.21 lb (95.0 g) Warranty The HP USB 3.0 2x2 Port Super Speed PCIe x1 Card has either a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums.
  • Page 48 QuickSpecs HP Z220 SFF Workstation Technical Specifications - Networking and Communications Integrated Intel 82579LM Connector RJ-45 PCIe GbE Controller Controller Intel 82579LM GbE platform LAN connect networking controller Memory 24 KB FIFO packet buffer memory Data Rates Supported 10/100/1000 Mbps Compliance 802.1P, 802.1Q, 802.2, 802.3, 802.3ab, 802.3az, 802.3u...
  • Page 49 HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
