Electrical Connections - GE Monogram ZEU30R Installation Instructions Manual

When making the wire connections, use the entire length of conduit provided. The conduit must not be
1
shortened.
Step
2
With the cooktop in place, open the front of the cabinet door.
Step
3

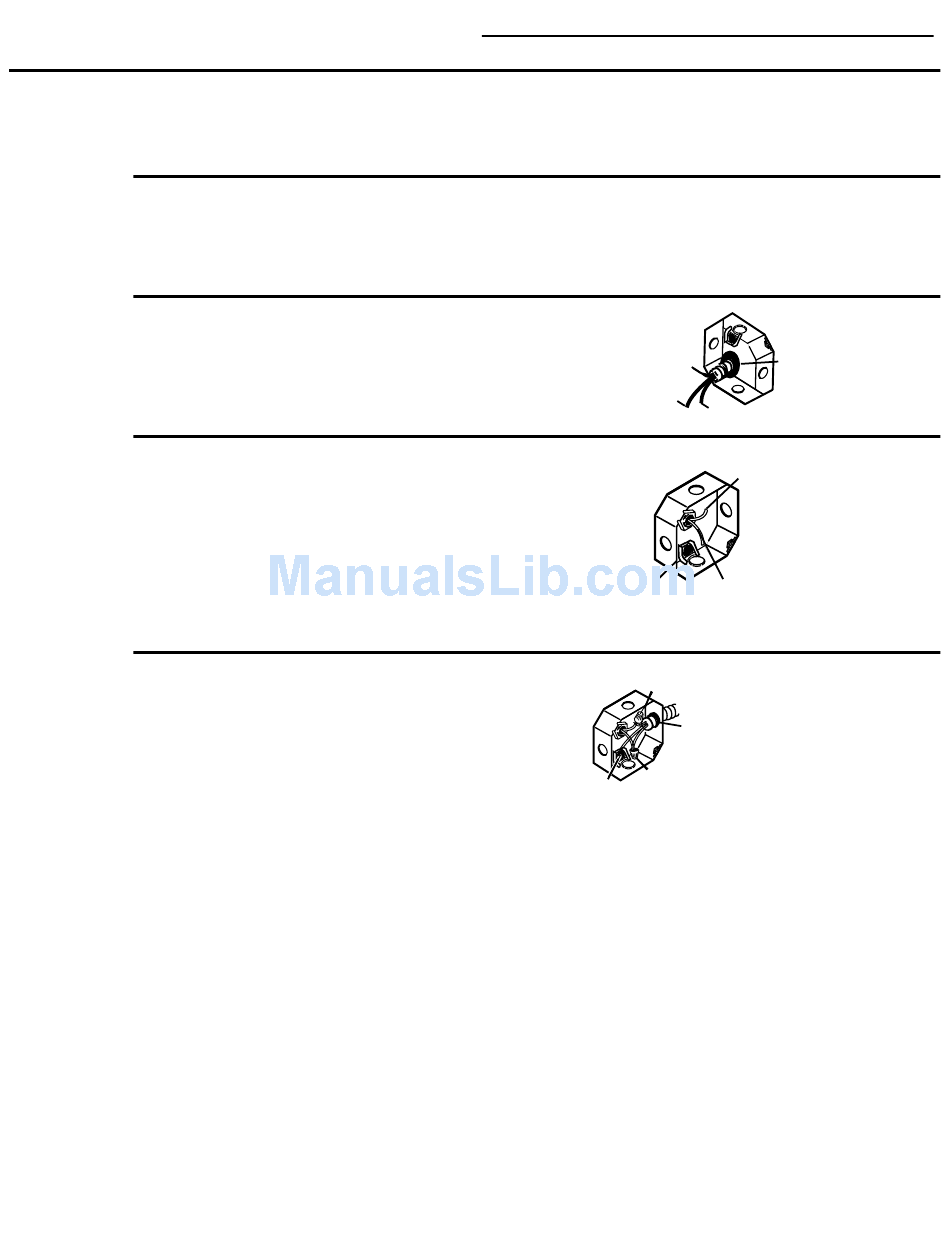

Insert the wires from the conduit through the opening
of the junction box.
Step
Connect the red and black leads from the
4
cooktop conduit to the corresponding leads
Step
in the junction box.
Once the connections are made, secure wires
5
together using wire nuts.
Step
GROUNDING INSTRUCTIONS
The bare ground wire in the conduit is connected to the cooktop frame. Effective January 1, 1996, the
National Electrical Code will not permit grounding through neutral. If used in new construction after
January 1, 1996 or in a mobile home, recreational vehicle or if local codes do not permit grounding
through the neutral white lead, attach the appliance grounding lead (green or copper) to the residence
grounding conductor (green or bare copper) in accordance with local codes. When connecting to a 3
conductor branch circuit, if local codes permit, connect the bare ground connector lead of the cooktop to
the branch circuit neutral (gray or white in color).
IMPORTANT: If the cooktop is being installed into a blind counter (one with no cabinet opening below),
wire connections must be made before putting the cooktop into the cutout opening.
NOTE: ALUMINUM WIRING
A. WARNING:
IMPROPER CONNECTION OF ALUMINUM HOUSE WIRING TO THE COPPER LEADS CAN
RESULT IN A SERIOUS PROBLEM.
B. Splice copper wires to aluminum wiring using special connectors designed and UL approved for joining
copper to aluminum and follow the manufacturer's recommended connector procedure closely.
NOTE: Wire used, location and enclosure of splices, etc., must conform to good wiring practice and
local codes.

Electrical Connections

Electronic Radiant Cooktop
Red
Ground
Ground
wire
location
Red
Black
Ground
Strain
Relief
Clamp
Black
Red
Black
Strain
Relief
Clamp
7
