ZEU769BC/SC/TC—GE Monogram Ribbon Cooktop

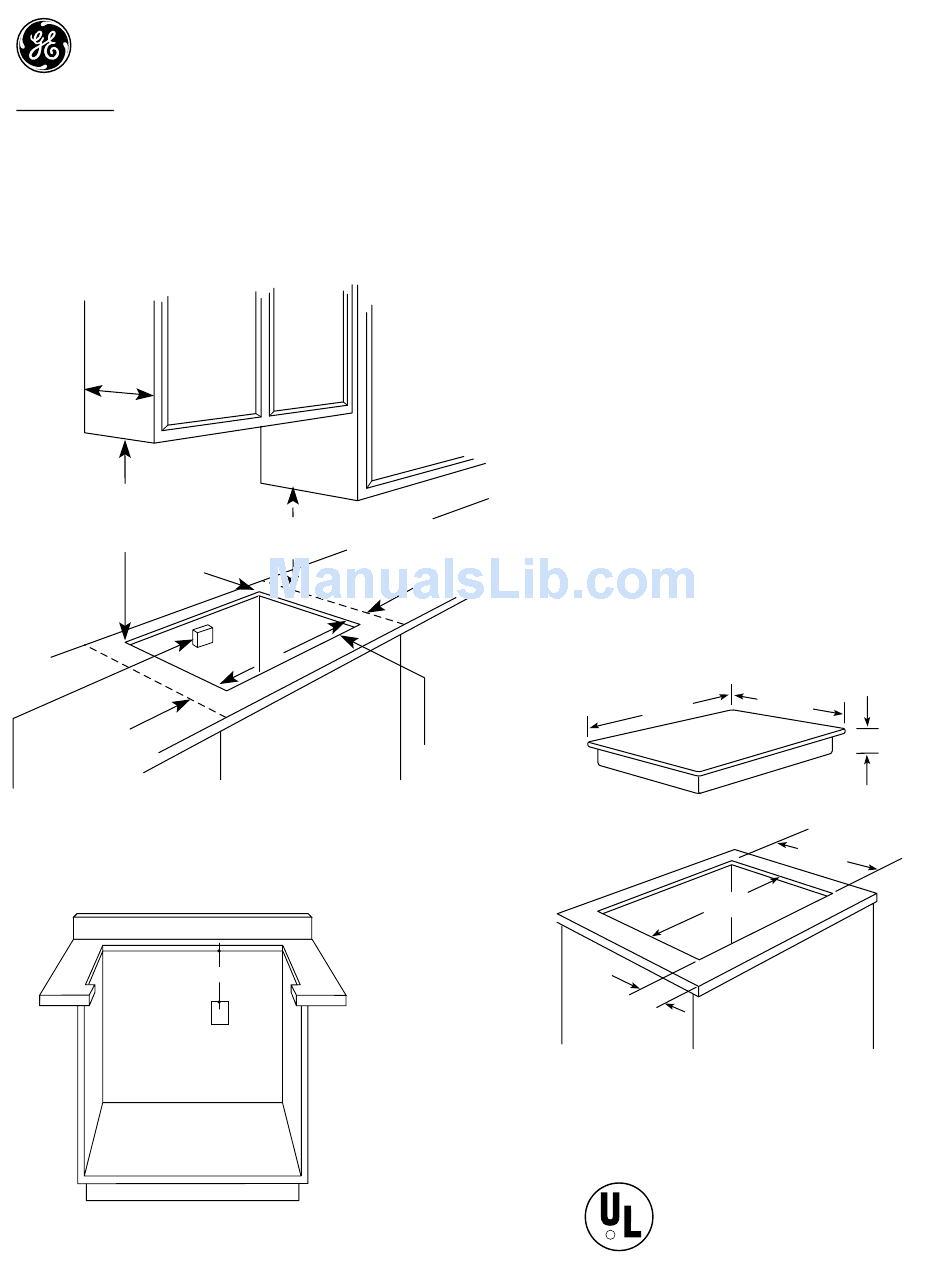

Dimensions and Specifications (in inches)
13" MAX.
depth
30" MIN. to
unprotected
cabinet
1-3/4" to
rear wall
1-3/4" MIN.
clearance to
side wall
from cut-out
Electrical junction box 12" MIN.
below countertop
Junction
Specification Created 12/01
1-1/2" MIN.
18" MIN.
clearance to
to cabinet
from cut-out
16" Min
Box
side wall
Cut should
not interfere
with cabinet
structure at front
Cutout Dimensions:
W 33-7/8" (860 mm)
L 19-1/8" (484 mm)
Note: 9.4 KW rating at 240 volts.
7.1 KW rating at 208 volts.
Note: Use template provided with installation
instructions to obtain required 1/2" radius cut or
angle cut in each corner.
* Depth of unit at conduit location (left rear): 4-3/4".
Requires 5" min. clearance below the cooktop bottom
to combustible materials.
Reference pub. no. 49-8800, GE Monogram Halogen
and Ribbon Cooktop Installation Instructions,
before installing for current dimensional data.
