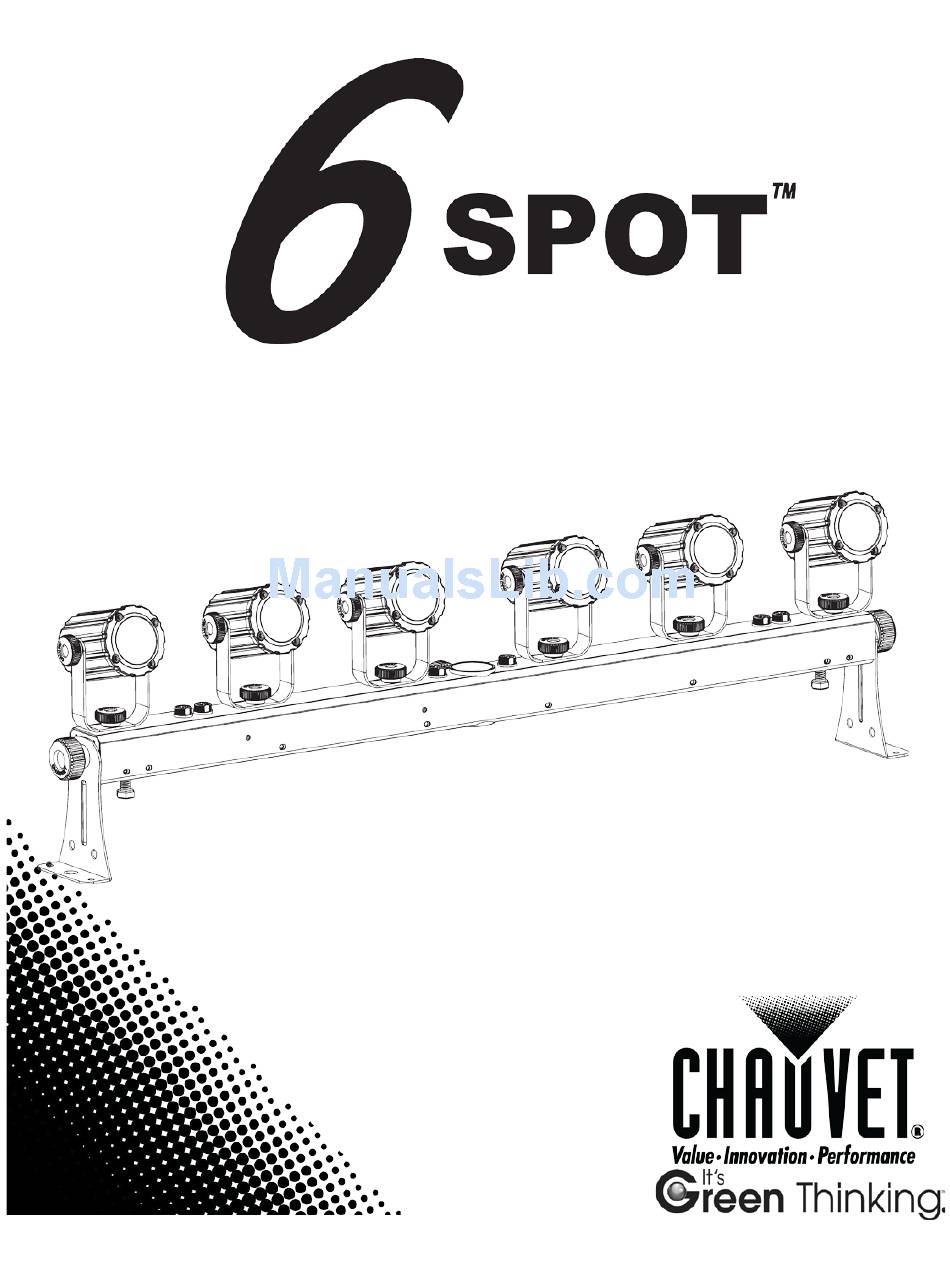

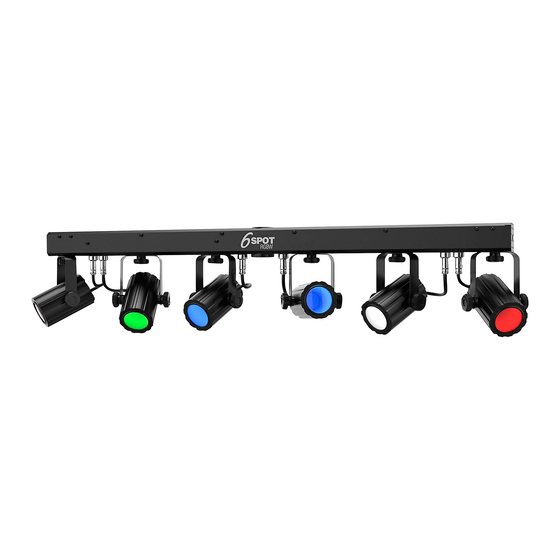

- Page 1 User Manual...
-
Page 2: Table Of Contents
DMX Operation ..........................................8 DMX Channel Values........................................8 Master/Slave Mode (Sound-Active) ....................................9 ....................................... 9 TANDALONE Sound-Active ..........................................9 Automatic ............................................9 5. TECHNICAL INFORMATION ................................10 TECHNICAL SPECIFICATIONS ................................11 6Spot™ User Manual Rev. 3 Page 2 of 12... -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1–512... -
Page 4: Safety Instructions
Avoid direct eye exposure to the light source while it is on. 2. I NTRODUCTION Product Overview Microphone Control Panel (LED Display) DMX Out Power In DMX In Back Panel Fuseholder Microphone Adjustment Power Out Tripod Stand Fastening Knob 6Spot™ User Manual Rev. 3 Page 4 of 12... -
Page 5: Setup
This fixture contains power linking via the Edison outlet located in front of the power input cable. Please see the diagram below for further explanation. The maximum quantity of 6SPOT™s that may be linked is 20 units @ 120V, 33 units @ 230V... -
Page 6: Mounting
Mounting Orientation The 6SPOT™ may be mounted in any position, provided there is adequate room for ventilation. Rigging This fixture has multiple rigging options. They are as follows: Floor Standing (using the two mounting/standing brackets) Hanging (using the two mounting/standing brackets) Hanging (using the two hanging clamp Mounting points) Be sure that the structure can support the weight of the fixture. -
Page 7: Operating Instructions
Adjust the speed of the automatic program Configuring the Starting Address The 6SPOT™ fixture uses up to eight DMX channels.In this DMX configuration/personality, the highest configurable address is 505. Any address higher than this will prevent access to all of the channels while in this mode;... -
Page 8: Operation
Individual pod control with strobing (channels 1~7) 011ó047 Automatic 1 048ó095 Automatic 2 096ó119 Automatic 3 120ó144 Automatic 4 145ó167 Automatic 5 168ó191 Automatic 6 192ó215 Automatic 7 216ó239 Automatic 8 240ó255 Sound-active 6Spot™ User Manual (Rev. 2) Page 8 of 12... -
Page 9: Master/Slave Mode (Sound-Active)
Please see the instructions below for details on this mode. Plug the fixture into power. Press <MODE> until AUTO appears on the LED screen. Press <ENTER>. Using <UP>&<DOWN>, adjust the program speed (S_ _1~S100) (fast~slow). Press <ENTER>. 6Spot™ User Manual (Rev. 2) Page 9 of 12... -
Page 10: Technical Information
· Gently polish the external optics and transparent surfaces until they are free of haze and lint. Always dry the external optics and transparent surfaces carefully after cleaning them. 6Spot™ User Manual (Rev. 2) Page 10 of 12... -
Page 11: Technical Specifications
Data pin configuration ..............pin 1 shield, pin 2 (-), pin 3 (+) Protocols ......................DMX-512 USITT DMX Channels .......................... 8 ORDERING INFORMATION 6SPOT™ ......................... 6SPOT WARRANTY INFORMATION Warranty ....................2-year limited warranty 6Spot™ User Manual Rev. 3 Page 11 of 12... - Page 12 You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
