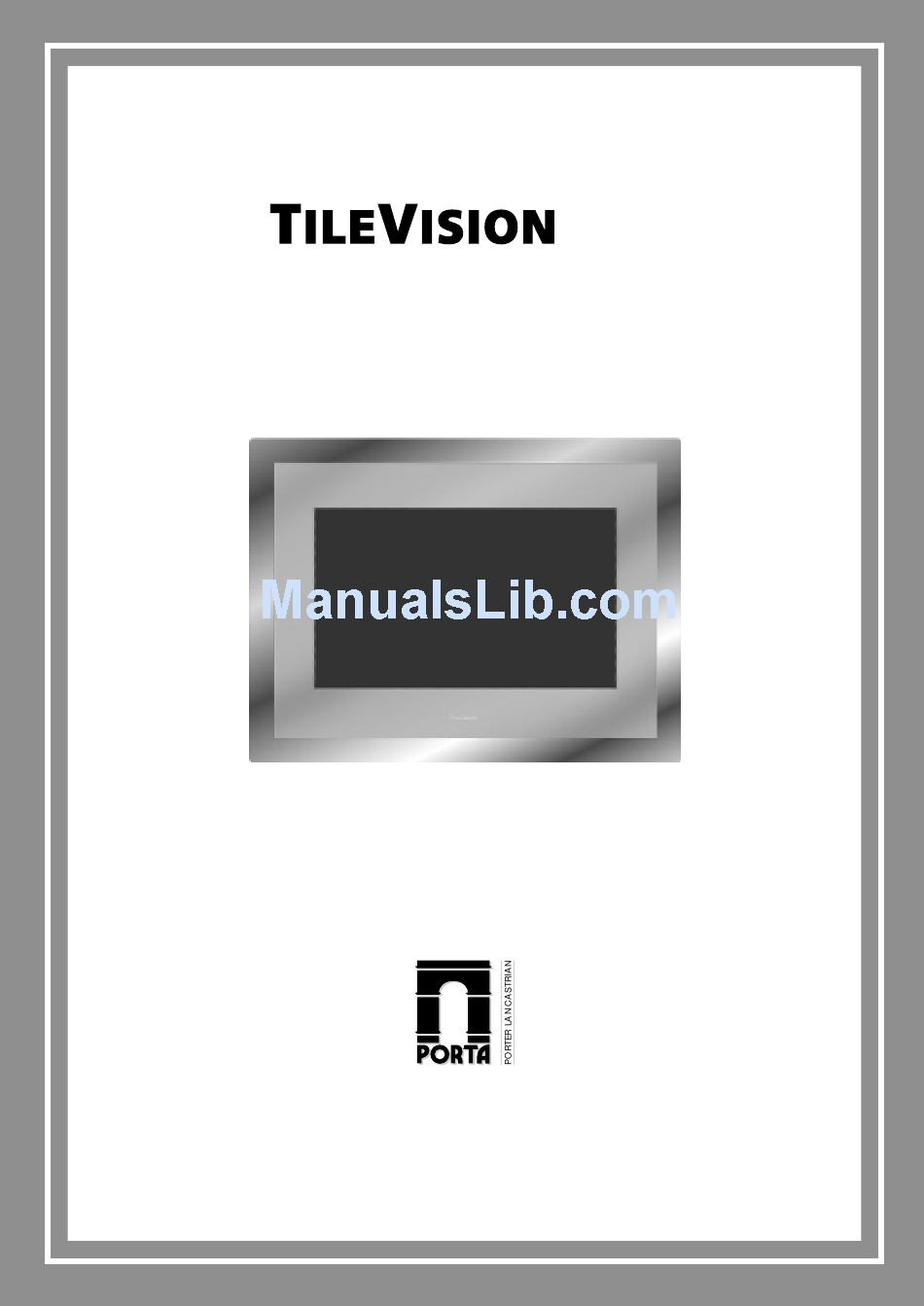

Page 1: Operating Instructions
® Operating Instructions TileVision ® is Designed and Manufactured by: PORTER LANCASTRIAN LIMITED www.tilevision.tv... - Page 2 Quick View Press the QV button to view the last programme you were watching. Teletext Function You can display teletext information at any time on your TileVision ® FM Radio Function Tune in to your favourite FM radio stations by selecting the Radio Mode.
-
Page 3: Safety Instructions
Safety Instructions Do not use a damaged socket and do not let the power cord Do not add an additional screen or cover the TileVision’s glass. touch a heat source. – The heated screen prevents condensation forming in steamy – This may cause an electric shock or fire. -
Page 4: Tools Required
Tools Required Suction Lifter Soft Cloth I s op rop y l A lcohol Silicone Sealant Isopropyl Alcohol Silicone Sealant produces acetic acid during cure. Use only in well ventilated areas. Irritating to eyes. Wash hands after use and before meals. Wash splashes from skin, clothing and other surfaces. -
Page 5: Table Of Contents
Table of Contents Safety Instructions ..............................Tools Required ................................Unpacking your TileVision ® ............................Your TileVision ® ................................Connector Inputs ................................Connections ..................................Connecting an Antenna or Cable .......................... Connecting to the S-Video, PC/DTV and PC/DVI Inputs ................Connecting to the SCART Inputs .......................... -
Page 6: Unpacking Your Tilevision
Unpacking your TileVision ® Please make sure the following items are included with your TileVision ® TileVision ® glass front plate assembly – complete with Velcro fixing strips. waterproof remote control. standard full function remote control. installation and instruction manual. -
Page 7: Your Tilevision
Your TileVision ® Front View Remote control sensor and indicator Power Indicator Status Indicator Status Stand-by Green Power on Red blinking Remote control Connector Inputs 12VDC Audio In EURO-SCART Phones S-Video Video Antenna Audio DC12V Power Input S-VIDEO Input PC/DTV Input (D-SUB) -
Page 8: Connections
Connections Earthing Points The Earthing connection points are found on the rear of the front plate and are clearly marked with green labels. Connect the earthing cables from the back box to these points. Power Socket The Power socket (1) is located at the extreme left of the connection array. Speaker Connections The speakers should be connected after the Speaker Connection Block... -
Page 9: Connecting An Antenna Or Cable
To view television channels correctly, a signal must be received by the set from one of the following sources: an outdoor antenna, a cable television system or a satellite dish. Connect the antenna or input cable to the 75 coaxial input on the rear of the TileVision ® Rear of the If you are using an indoor antenna, you may need to turn it ®... -
Page 10: Connecting To The S-Video, Pc/Dtv And Pc/Dvi Inputs
Connect the RGB IN cable (D sub jack) from the RGB output socket of the PC to the PC/DTV input socket of TileVision. Connect the PC Audio IN cable from the PC to the PC Audio IN socket of the TileVision. 12VDC... -
Page 11: Connecting To The Scart Inputs
The 3.5 mm stereo Headphone socket provides a variable volume audio output which can be connected to the auxiliary input of an audio amplifier. If the TileVision ® is not being installed in a bathroom an extension lead can be connected to the Headphone socket. -
Page 12: Installing The Front Plate
Note: It is the installer’s responsibility to ensure that the TileVision ® unit is installed and sealed correctly, failure to do so will invalidate Velcro your guarantee. -
Page 13: The Remote Control
Remote Control Power On/Off button Turns the TileVision® on or off from standby PSM (Picture Status Memory) button Recalls the preferred picture setting SSM (Sound Status Memory) button Recalls the preferred sound setting Mute button Turns the sound on or off... -
Page 14: Switching The Tilevision
Switching the TileVision On/Off ® To switch your TileVision® on, press the POWER ( ) button. To switch your TileVision ® off, press the POWER ( ) button again. Selecting a Picture from External Sources After your various systems (audio and video) have been connected, you can view any of the sources by selecting the appropriate external input. -
Page 15: On-Screen Menus And Displays
On-screen Menus and Displays Press the MENU button to display the main menu. Equalizer Flat Press the PR UD buttons to select menus. Music Movie Press VOL LR buttons to adjust menu items. Speech User Press MENU to go back to the previous menu. 0.1 0.5 1.5 5.0 10Khz Press TV/AV to exit the menus and confirm settings. -
Page 16: Tuning, Setup And Editing Programs
Tuning, Setup and Editing TV Programmes Note: It is recommended that Auto Programme is used when installing TileVision as all ® available programmes will be stored. Auto Programme Press the MENU button. MENU Press the PR UD buttons to select the SETUP menu and then press the VOL R button. -
Page 17: Manual Programme
Press the PR UD buttons to select Search menu. Channel Table V/UHF When you press the VOL LR buttons, the TileVision changes System programmes in sequence. You will see all the programmes that Search the TileVision has memorised. You will not see programmes that Memorize were either erased or not memorised. -
Page 18: Programme Edit
Tuning, Setup and Editing TV Programmes Programme Edit This function enables you to delete or skip the stored programmes. You can also move channels to different programme numbers, or MENU insert blank programme data into the selected programme number. Press the MENU button. Press the PR UD buttons to select the SETUP menu and then press the VOL R button. - Page 19 Tuning, Setup and Editing TV Programmes Naming a programme in Programme Edit menu TIME TV / AV Select a programme to be named with the PR UD or SLEEP LIST VOL LR buttons. Press the GREEN button. Press the PR UD buttons repeatedly to select letters (A to z –...
-
Page 20: Picture Control
Picture Control You can adjust picture Contrast, Brightness, Colour and Sharpness to the levels you prefer. Manual Picture Control Main menu Picture Press the MENU button. Sound Special Press the PR UD buttons to select the Picture menu and then Setup press the VOL R button. -
Page 21: Sound Control
Sound Control Preferred sound setting can be selected; Flat, Music, Movie or Speech. Manual Sound Control The Equalizer can be manually adjusted by cutting and boosting the five selected frequency bands and storing the settings as User. MENU The left to right Balance can be adjusted and if AVL is switched on there will be a more equal volume level between programmes. -
Page 22: Auto Sound Control
Sound Control Auto Sound Control The sound settings for Flat, Music, Movie, and Speech are programmed at the factory for optimum sound reproduction, and cannot be changed. SSM (Sound Status Memory) Press the SSM ( ) button. Press the button repeatedly to select. Each press of the button changes the screen display as below. -
Page 23: Pc Picture Adjustment
Connect the PC IN cable (D-Sub) from the monitor output socket SLEEP LIST of the PC to the PC ANALOG input socket of the TileVision. Connect the PC Audio IN cable from the PC to the PC AUDIO IN of the TileVision. -
Page 24: Position Adjustment
PC Picture Adjustment Contrast – adjusts the balance between Horizontal Vertical Mode Resolution light and dark areas of the picture. Frequency (KHz) Frequency (Hz) Brightness – makes the picture darker 640 x 480 37.9 or brighter as preferred. 640 x 480 37.5 720 x 400 31.4... -
Page 25: Pc Sound Adjustment
PC Sound Adjustment HOLD Press the TV/AV button to select PC mode. TV / AV Press the MENU button. Select the Sound function with the PR UD buttons and then press the VOL R button. Press the PR UD buttons to select the desired sound item: Equalizer, Balance, AVL, Surround or Sound Mode. -
Page 26: Clock
Clock Setting the clock is necessary in order to use the various timer features of the TileVision. You can set automatic TV On or Off time. Press the MENU button. MENU Press the PR UD buttons to select the Special menu, press the VOL R button. -
Page 27: Auto Sleep
Radio Main menu You can listen to FM radio if the antenna is connected to the Picture TileVision via the ANT socket. Before tuning into radio programmes Sound the Radio On selection must be made in the Special menu. Special Press the MENU ( ) button. -
Page 28: Arc (Aspect Ratio Control)
ARC (Aspect Ratio Control) TileVision can be viewed in various picture formats by repeatedly Special pressing the ARC ( ) button until the desired image is selected. Clock Blue Back Auto 16:9 14:9 Auto Sleep Child Lock 16:9 Zoom 14:9 Zoom... -
Page 29: Radio Tuning And Setup
Radio Tuning and Setup Radio Mode can only be accessed by using the TV/AV button after Radio On has been selected in the Special menu. TIME Use the TV/AV button to select Radio Mode. TV / AV Press the MENU button to set Radio Setup menu. SLEEP LIST Press the VOL LR button repeatedly to select the Mode Auto... -
Page 30: Calling The Programme List
Radio Tuning and Setup Radio Setup Press the PR UD buttons to select Edit Name. Then press the VOL R button to edit radio station name. Station ---------- You can assign a radio name with 8 characters. Press the PR UD button repeatedly. You can use numbers 0–9, or letters A–z (capitals and small), and a blank. -
Page 31: Teletext
Teletext Functions of Teletext Part Display Contents Selected page number. Broadcast Station identity. Current page number or searching status. Date and time. Text information. FasText information. Red, Green, Yellow, Blue Displaying the Teletext Information Press the TEXT ( ) button once to display the Teletext pages. TEXT HOLD Press the MIX (... -
Page 32: Teletext Button Functions
Teletext Button Functions The table below gives a complete explanation of each of the TEXT HOLD Teletext buttons. TIME TV / AV SLEEP LIST Button Menu Functions Changes Teletext mode – press button for text mode, text and TV picture TEXT side by side, return to TV mode. -
Page 33: Troubleshooting
Troubleshooting No picture or sound. Make sure the AC power cord is connected to the 12V power adapter. Make sure the 12V DC power cord is connected to the TileVision ® Check for power failure. If the red indicator is not showing press the POWER (... -
Page 34: Specifications
Specifications – TV/17/FR3/PS Model TV/17/FR3/PS External Dimensions (W x H x D) 483 mm x 353 mm x 75 mm Total Weight 12 Kg complete with backbox Requirements 12 VDC/5.0 A Consumption 50 W max, standby below 3 W Power Input 100–240 VAC 50/60 Hz... -
Page 35: Notes
Notes... - Page 36 PORTER LANCASTRIAN LIMITED www.tilevision.tv TV/17/FR3/PS – 17" Tilevision ® Operating Instructions – February 2007 – Part No. TVS/00215/04...
