Summary of Contents for TileVision TV/104/FR2

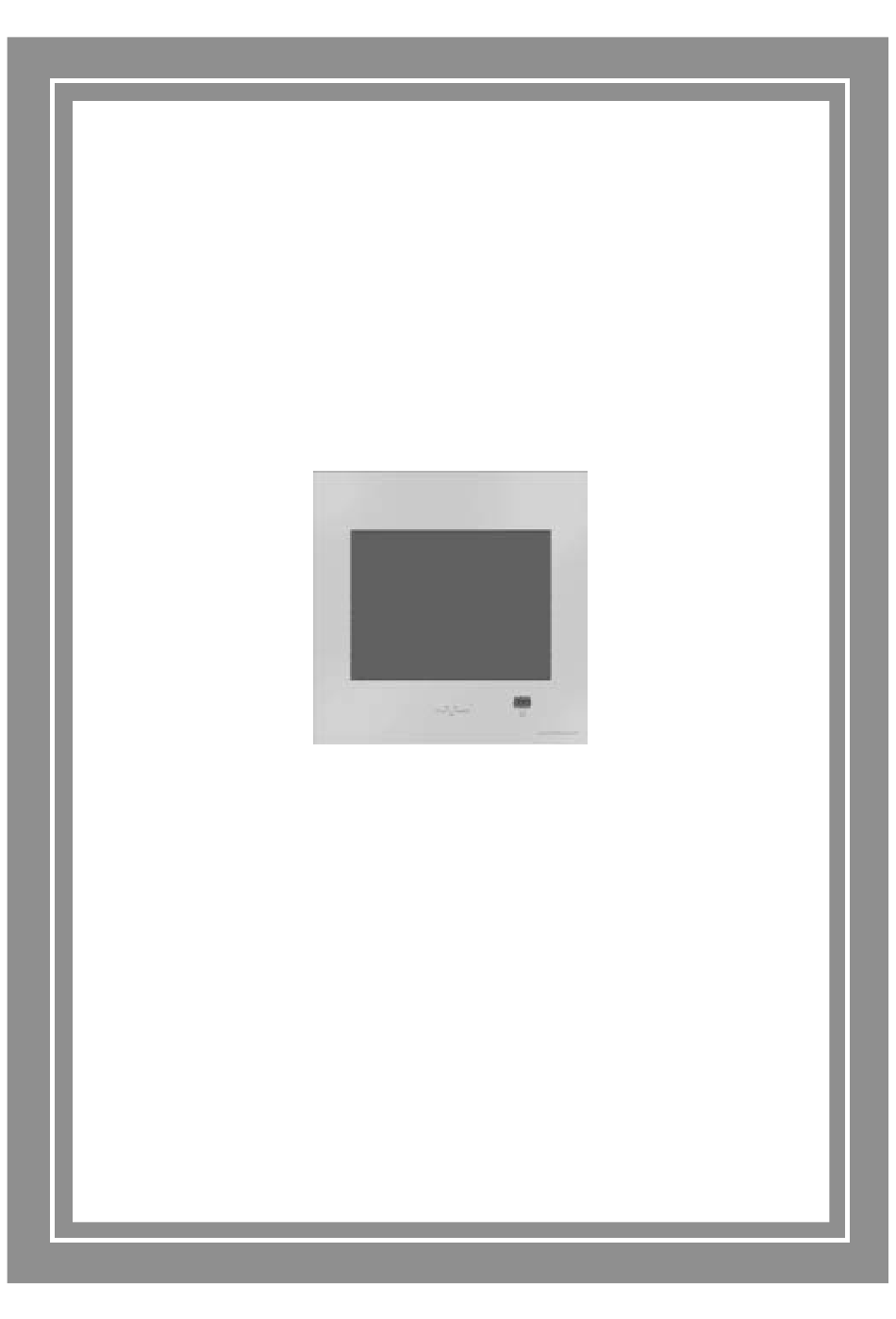

- Page 1 10.4" TileVision ® Operating instructions www.waterprooftv.co.uk...
- Page 2 Press the QV button to view the last programme you were watching. Teletext Function You can display teletext information at any time on your TileVision ® Horizontal Flip The screen can be flipped left to right, to enable the TileVision ® to be viewed correctly when reflected in a mirror. CAUTION...
-
Page 3: Safety Instructions
Safety Instructions Do not use a damaged socket and do not let the power cord Do not connect too many extension cords or plugs to touch a heat source. an outlet. – This may cause an electric shock or fire. –... -
Page 4: Tools Required
Tools Required Suction Lifter Soft Cloth I s op rop y l A lcohol Silicone Sealant Isopropyl Alcohol ☛ Silicone Sealant evolves acetic acid during cure. Use only in well ventilated areas. Irritating to eyes. Wash hands after use and before meals. Wash splashes from skin, clothing and other surfaces. -
Page 5: Table Of Contents
Table of Contents Safety Instructions ........................1 Tools Required ..........................2 Unpacking your TileVision ® ......................4 Your TileVision ® ..........................5 Connector Inputs ..........................5 Connections ..........................6 Connecting an Antenna or Cable ....................7 Connecting to the RCA or S-Video Input ..................8 Connecting to the SCART Input ....................9 Installing the Front Plate ......................10... -
Page 6: Unpacking Your Tilevision
Unpacking your TileVision ® Please make sure the following items are included with your TileVision ® if any items are missing, contact your dealer. Accessories Two boxes supplied – 1. Back Box Assembly – (first fix) 2 speakers. 2 lengths speaker cable. -
Page 7: Your Tilevision
Your TileVision ® Front View Remote control sensor and indicator Power Indicator Status Indicator Status Bright Red Stand-by Dim Red Power on Red blinking Remote control Connector Inputs 12VDC EURO-SCART Phones S-VIDEO VIDEO Audio Antenna Input Jack Headphone Output 12VDC Power Input... -
Page 8: Connections
Connections Earthing Points The Earthing connection point is clearly marked with a green label and is found on the rear of the front plate. Power Socket The Power socket (2) is the second connector on the left of the connection array. Speaker Connections The speakers should be connected after the Speaker Connection Block... -
Page 9: Connecting An Antenna Or Cable
Connect the antenna or input cable to the 75Ω coaxial input on the rear of the TileVision ® If you are using an indoor antenna, you may need to turn it Rear of the when tuning your television until you receive a clear picture. -
Page 10: Connecting To The Rca Or S-Video Input
All connections must be made prior to sealing the front plate into the back box. (A) For RCA Input 1. Connect the RCA cable to the input jacks (video+ audio L/R) on the TileVision ® output jacks on the external equipment such as a VCR, camcorder and some video game devices. -
Page 11: Connecting To The Scart Input
◆ Insert a 3.5mm stereo jack into the Headphone socket of TileVision to obtain an audio feed which is subject to the TileVision volume controls. This can be connected to the auxiliary input of any audio amplifier which accepts an input from a portable audio device such as a personal CD etc. -
Page 12: Installing The Front Plate
Note: It is the installer’s responsibility to ensure that the TileVision ® unit is installed and sealed correctly, failure to do so will invalidate Velcro your guarantee. -
Page 13: The Remote Control
SSM (Sound Status Memory) button Recalls the preferred sound setting Mute button Turns the sound on or off ARC (Aspect Ratio Control) button Screen mode select – widescreen TileVision ® only OK button Accepts your selection or displays the current mode... -
Page 14: Switching The Tilevision On/Off
Switching the TileVision ® On/Off To switch your TileVision on, press the POWER ( ) button. ® To switch your TileVision ® off, press the POWER ( ) button again. Selecting a Picture from External Sources After your various systems (audio and video) have been connected, you can view any of the sources by selecting the appropriate external input. -
Page 15: On-Screen Menus And Displays
On-screen Menus and Displays Press the red MENU button to display the main menu. Equalizer Flat Press the PR ▲▼ to select menus. Music Movie Press VOL ▲▼ to adjust menu items. Speech User 0.1 0.5 1.5 5.0 10Khz Press MENU to go back to the previous menu. Press TV/AV to exit the menus and confirm settings. -
Page 16: Tuning, Setup And Editing Programs
Tuning, Setup and editing TV Programmes Note: It is recommended that Auto Programme is used when installing TileVision ® as all available programmes will be stored. Auto Programme Press the red MENU button. Press the PR ▲▼ button to select the SETUP menu and then press the VOL ▲... - Page 17 Tuning, Setup and editing TV Programmes Manual Programme lets you tune and arrange the programmes in whatever order you desire. You can also assign a programme name with 5 characters for each programme number. Manual Programme Press the red MENU button. Press the PR ▲▼...
- Page 18 Tuning, Setup and editing TV Programmes Programme Edit This function enables you to delete or skip the stored programmes. Also you can move channels to different programme numbers, or insert blank programme data into the selected programme number. Press the red MENU button. Press the PR ▲▼...
-
Page 19: Picture Control
Picture Control You can adjust picture Contrast, Brightness, Colour and Sharpness to the levels you prefer. Main menu Manual Picture Control Picture Press the red MENU button. Sound Special Press the PR ▲▼ button to select the Picture menu and then Setup press the VOL ▲... -
Page 20: Sound Control
Sound Control Preferred sound setting can be selected; Flat, Music, Movie or Speech. Main menu Manual Sound Control Picture Equaliser mode can be manually adjusted by cutting and boosting Sound the five selected frequency bands, then storing the settings as User. Special Balance can be adjusted. -
Page 21: Tv, Scart And S-Video Modes
To return to TV mode, press the TV/AV button repeatedly. Auto flip Vertical flip Horizontal flip Auto Sleep Main menu If you select Auto Sleep On the TileVision ® will automatically switch itself to standby mode approximately ten minutes after a TV Picture Sound channel stops broadcasting. -
Page 22: Blue Back
When Vertical Flip is selected, the picture is inverted top to bottom and mirrored left to right. Horizontal Flip When Horizontal Flip is selected the picture is mirrored left to right. Horizontally Flipped Picture ☛ The default setting for the 10.4" TileVision ® is Vertical Flip On. -
Page 23: Sleep Timer
Sleep Timer The sleep timer automatically switches the TileVision to standby ® after the preset time elapses. Press the SLEEP button repeatedly to select the number of minutes. The display will appear on the screen followed by 0, 10, 20, 30, 60, 90, 120, 180 and 240. -
Page 24: Teletext
Teletext The Teletext page of most TV channels provide information such as TV programme times, News bulletins, Weather forecasts, Travel information, or Sports results. Functions of Teletext: Part Display Contents Selected page number. Broadcast Station identity. Current page number or searching status. Date and time. -
Page 25: Teletext Button Functions
Teletext Button Functions The table below gives a complete explanation of each of the Teletext buttons. Button Menu Functions Activates Teletext mode, press again to display teletext page TEXT superimposed on the TV picture. Press again to return to TV mode. Selects double height text. -
Page 26: Troubleshooting
Troubleshooting ☛ Make sure the power cord is connected to the 12V power adapter. No picture or sound. ☛ Make sure the power cord is connected to the TileVision ® ☛ Check for power failure. ☛ Make sure the remote control is not in the standby mode. -
Page 27: Specifications
Specifications – TV/104/FR2 Model name TV/104/FR2 Size 10.4" Diagonal Display Size 224.5 mm (H) x 172 mm (V) Pixel Pitch 0.264 mm x 0.264 mm Pixel Number 600 x 800 pixels RGB stripe arrangement SVGA Colour Depth 6 bit (262,144 colours) - Page 28 Waterprooftv.co.uk, 7 Allandale Road, Stoneygate, Leicester, LE2 2DA Tel: +44 (0) 116 2705777 Fax: +44 (0) 116 2745777 Email: w@terproof.tv TV/104/FR2 – 10.4" Tilevision ® Operating Instructions Revision A – June 2004 – Part No. TVS/00155/04...
