Page 1
HD Radio Component Tuner User Manual 381QA0S-A 2006/10/19, ¤U¤È 02:16 20060929_HDT-1_381QA0S-A_«Ê-±.p65...
Page 2
HD Radio™ Technology Manufactured Under License From iBiquity Digital Corporation. iBiquity Digital and the HD Radio and HD logos are registered trademarks of iBiquity Digital Corporation. HD Radio is a trademark of iBiquity Digital Corporation. U.S. and Foreign Patents. 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is 2. Keep these instructions. used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Page 4

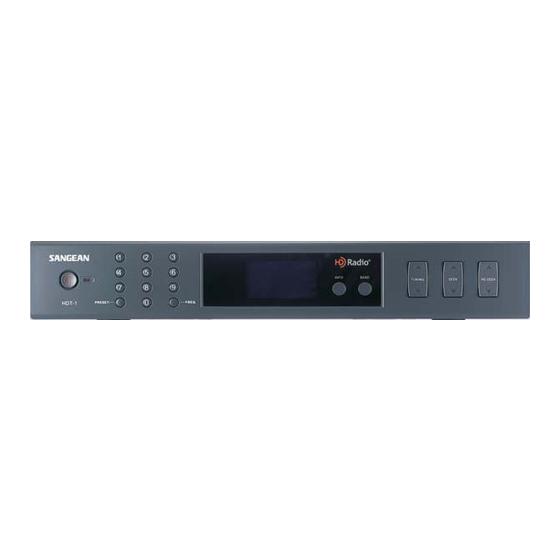

Main Unit Controls (Front) Standby on/off button HD Radio seek button Number keys Band button Remote Control sensor Information button Direct frequency station recall LCD display Tuning Control button Preset button Seek button Standby LED indicator 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
Main Unit Controls (Rear) External FM antenna socket 15. 16. Line Out socket External AM loop antenna socket AC power cord socket 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
Remote Control Preset button Standby on/off button Information button Tuning Control Mode selection Seek button Band button HD Radio Seek button Direct frequency station recall 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
Page 7
Accessories Detachable power cord x 1 FM Dipole antenna x 1 AM loop antenna x 1 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
Page 8
RCA type audio cable x 1 Remote control unit x 1 Instruction manual x 1 Warranty card x 1 2006/10/19, ¤U¤È 02:46 20060929_HDT-1_381QA0S-A_GB.p65...
Getting started First find a location for your new HD Radio component tuner. 3. Connect the AM loop antenna into AM antenna terminal. 1. Plug the AC power cord into the socket located on the rear, 4. Connect the LINE OUT socket of tuner and LINE IN socket ensuring that the plug is pushed fully into the socket.
Radio Controls To turn the radio on, press the Standby button. Pressing the Standby button again will put the unit into standby. In standby, the tuner will display the time, dim the backlight and standby LED will be on. Selecting the radio band Press the BAND button to select the appropriate band.
Manual Tuning Press the TUNING rocker switch UP or DOWN to tune up or down to select a radio station. Tuning step per press for AM band is 10 kHz and 100 kHz for FM band. Direct Tuning By using numbered key pad, you can directly tune to a radio station. For example, to tune to station 93.30 FM, press BAND button to select FM band followed by pressing FREQ button and numbered buttons 9-3-3.
Page 12
Receiving HD stations When the radio is tuned to a station broadcasting an HD signal, the LCD will display a blinking “ HD “ logo. Once the tuner acquires the HD signal, the “HD” logo will stay on and a Signal Strength indication will appear in the top right hand corner.
Seek Function HD SEEK function To seek to another clear station, use the SEEK toggle button. Using the HD SEEK button, the tuner will seek to the next available Press and release the SEEK UP or DOWN will go to the next available HD Radio station.
Page 14
Recall preset stations To recall preset stations, select required band by pressing BAND selection button. Press PRESET button to enter PRESET recall mode. Display will show “GO TO PRESET”. Then followed by using one of the following methods to recall the stations. 1.
Page 15
Exchange preset stations position You may use the Presets exchange function to change the position Note: of the preset stations. If memory is full during preset station exchange, display will appear e.g. FULL, then press number button 2 for more than 5 seconds until preset 1: 93.10 MHz and display indicating the new preset has been stored.
Page 16
Advanced Information Long press INFO button for 2 seconds to enter Advanced Information. Press and release INFO button will cycle through information of RESET, LCD Contrast Adjust, Bit Error Rate, The carrier to noise ratio, FUSE Bit Check, Transmission Mode, Station ID and Software version.
Specifications Power: Antenna System: Mains: AC 120 Volts 60 Hz only, 10 Watt maximum FM - Dipole type ( supplied ) Battery ( remote control ): 3.0V CR 2025 AM - Loop type ( supplied ) Frequency coverage: Dimension ( W x H x D ): 430 x 70 x 256 mm FM 87.50 –...
Page 18
HDT-1 Brief User Interface: HDT-1 UI KEY function Button action function status function Note standby short StandBy / PowerOn / StandBy toggle recall the last station PowerOn on last band Band short PWR ON FM1 FM2 AM1 AM2 short PWR ON...
Page 19
To press preset button then to press PWR ON Recall Preset 0~9 number button finish setting PWR ON Recall Preset 0~9 PWR ON Recall Preset 0~9 PWR ON Recall Preset 0~9 Preset 1. When preset memory isn't full. PWR ON Store to Preset 0~9 To press number button long 2s store channel.
